AREQ Series

Catalog

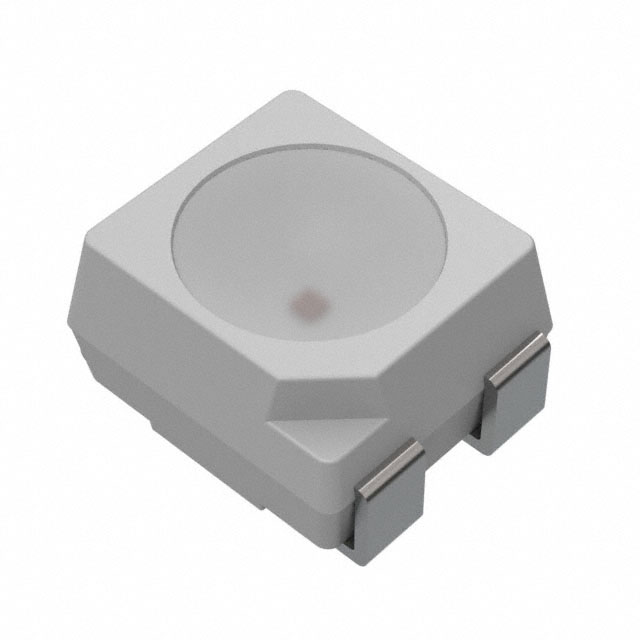

3528 PLCC-4 LENS INFRARED LED

Part	Wavelength	Mounting Type	Radiant Intensity (Ie) Min @ If [Min]	Package / Case	Current - DC Forward (If) (Max) [Max]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation

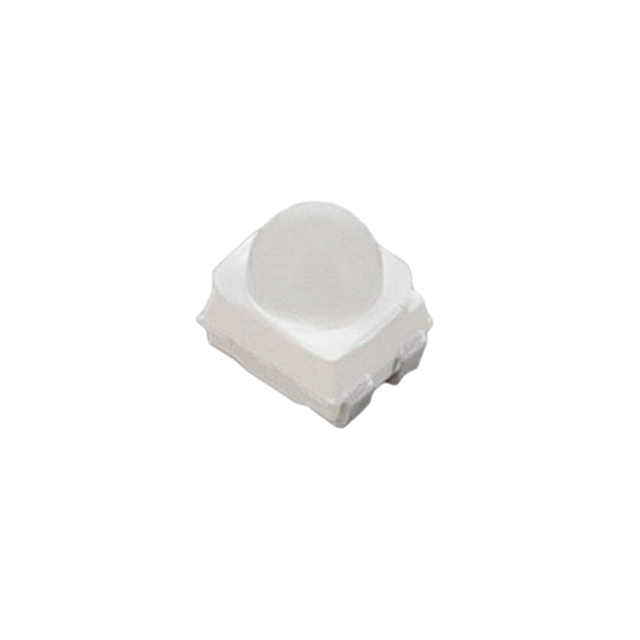

Broadcom Limited AREQ-9320-RT000	940 nm	Surface Mount	112.5 mW/sr	4-PLCC	100 mA	30 °	3.1 V	Infrared (IR)	-40 C	100 °C	Top View

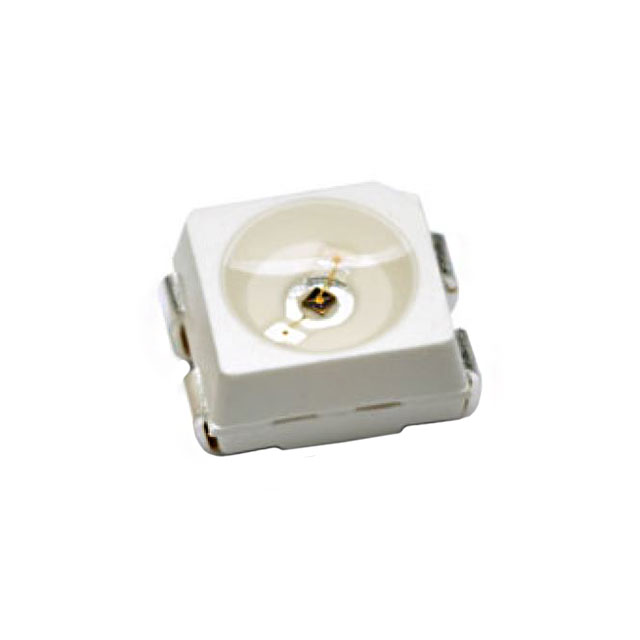

Broadcom Limited AREQ-8020-00000

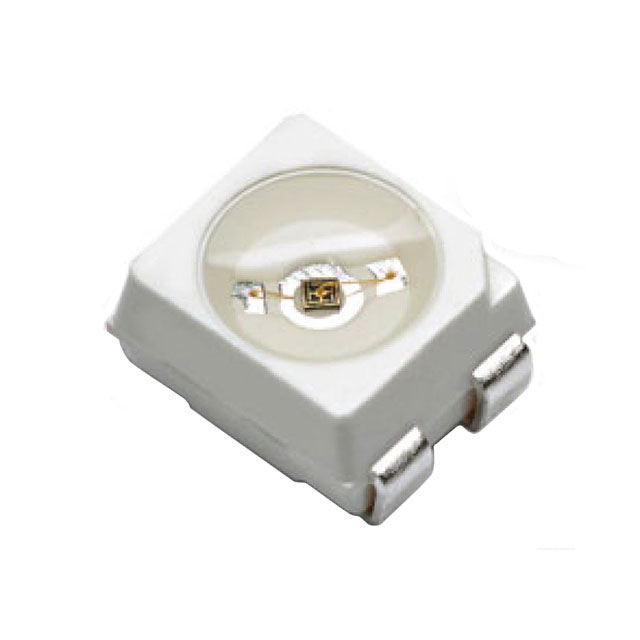

Broadcom Limited AREQ-90C0-00000

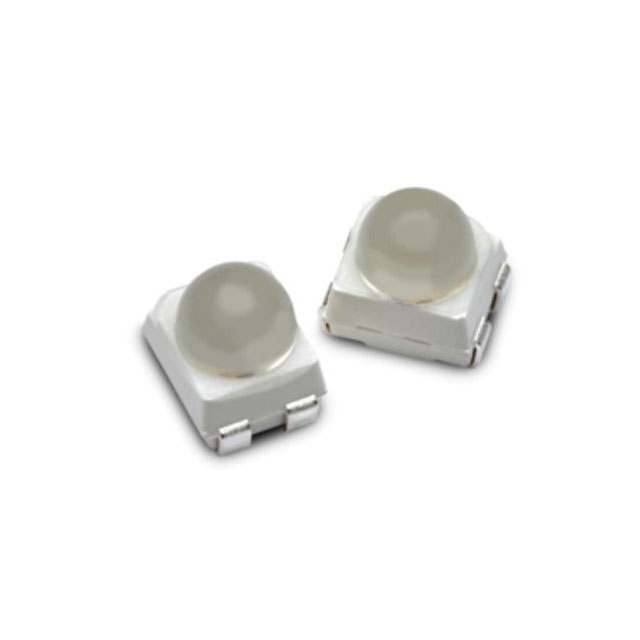

Broadcom Limited AREQ-93C0-QR000	940 nm	Surface Mount	71.5 mW/sr	4-PLCC	100 mA	30 °	1.6 V	Infrared (IR)	-40 C	100 °C	Top View
Broadcom Limited AREQ-85C0-NQ000	850 nm	Surface Mount	28.5 mW/sr	4-PLCC	100 mA	50 °	1.6 V	Infrared (IR)	-40 C	100 °C	Top View
Broadcom Limited AREQ-80C0-00000	850 nm	Surface Mount	11.2 mW/sr	4-PLCC	100 mA	120 °	1.6 V	Infrared (IR)	-40 C	100 °C	Top View
Broadcom Limited AREQ-80C0-LN000	850 nm	Surface Mount	11.2 mW/sr	4-PLCC	100 mA	120 °	1.6 V	Infrared (IR)	-40 C	100 °C	Top View

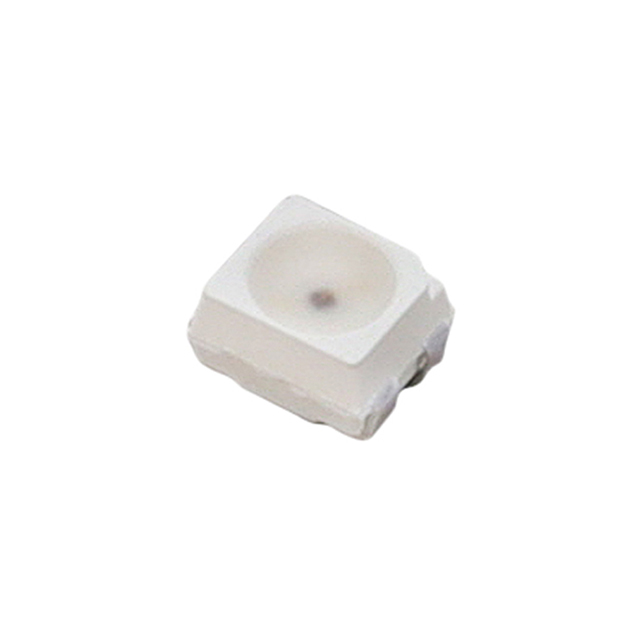

Broadcom Limited AREQ-9020-MP000	940 nm	Surface Mount	18 mW/sr	4-PLCC	100 mA	120 °	3.1 V	Infrared (IR)	-40 C	100 °C	Top View
Broadcom Limited AREQ-95C0-NQ000	940 nm	Surface Mount	28.5 mW/sr	4-PLCC	100 mA	50 °	1.6 V	Infrared (IR)	-40 C	100 °C	Top View

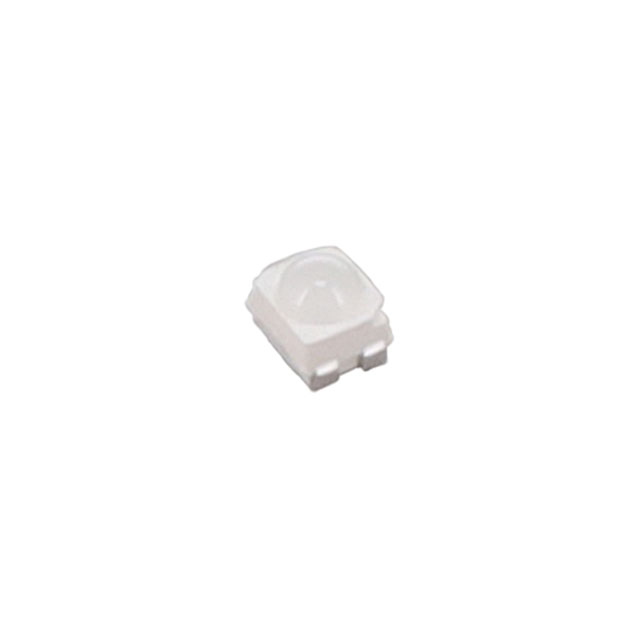

Broadcom Limited AREQ-9520-PR000	940 nm	Surface Mount	45 mW/sr	4-PLCC	100 mA	50 °	3.1 V	Infrared (IR)	-40 C	100 °C	Top View
