G9SX-AD Series

Catalog

CONTROL SAFETY GEN PURPOSE 24V

Part	Weight	Weight	Mounting Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Controller Type	Features	Features [Max]	Safety Outputs and Type	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Approval Agency	Voltage - Supply	Safety Category	Auxiliary Outputs and Type	Termination Style
Omron Electronics Inc-EMC Div G9SX-ADA222-T15-RC DC24	200.03 g	0.441 lb	DIN Rail	55 °C	-10 °C	General Purpose	Logical AND I/O	15 sec	Solid State (6)	Digital	2	CE CSA cULus SUD TUV UL	24 VDC	Category 4 PLe SIL3	Solid State (2)	Spring Terminal

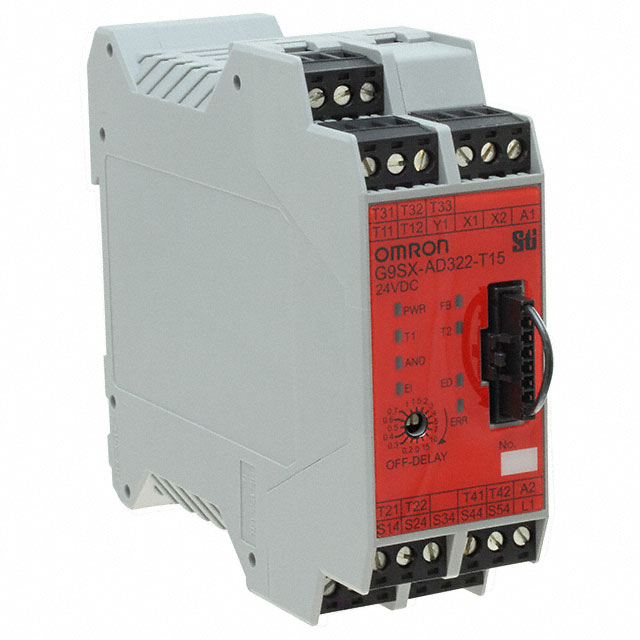

Omron Electronics Inc-EMC Div G9SX-AD322-T15-RT DC24	200.03 g	0.441 lb	DIN Rail	55 °C	-10 °C	General Purpose	Logical AND I/O	15 sec	Solid State (6)	Digital	2	CE CSA cULus SUD TUV UL	24 VDC	Category 4 PLe SIL3	Solid State (2)	Screw Terminal
Omron Electronics Inc-EMC Div G9SX-AD322-T150-RC DC24	200.03 g	0.441 lb	DIN Rail	55 °C	-10 °C	General Purpose	Logical AND I/O	150 sec	Solid State (6)	Digital	2	CE CSA cULus SUD TUV UL	24 VDC	Category 4 PLe SIL3	Solid State (2)	Spring Terminal

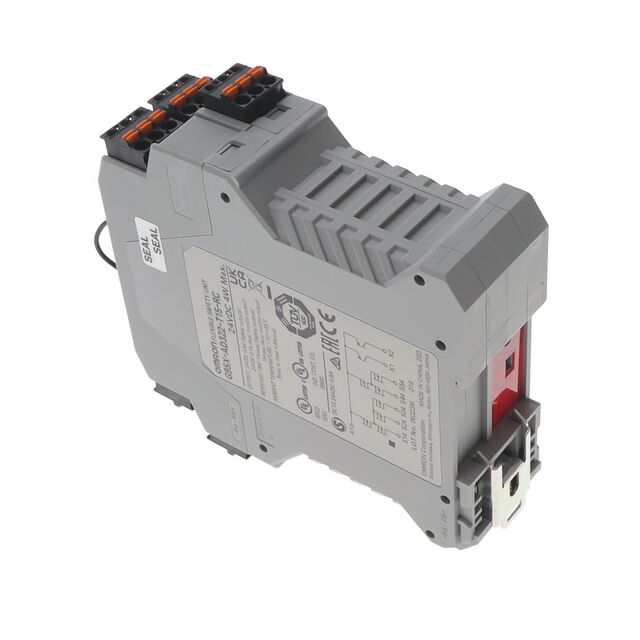

Omron Electronics Inc-EMC Div G9SX-AD322-T15-RC DC24	200.03 g	0.441 lb	DIN Rail	55 °C	-10 °C	General Purpose	Logical AND I/O	15 sec	Solid State (6)	Digital	2	CE CSA cULus SUD TUV UL	24 VDC	Category 4 PLe SIL3	Solid State (2)	Spring Terminal
