DMF Series

Manufacturer: Adam Tech

Catalog

CONN PLUG HSG 16POS 4.20MM

Part	Note	Row Spacing	Row Spacing	Number of Positions	Pitch	Pitch	Contact Termination	Contact Type	Insulation Material	Fastening Type	Connector Type	Mounting Type	Number of Rows [custom]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Style	Contact Shape	Current Rating (Amps)	Voltage Rating	Number of Positions Loaded	Shrouding	Contact Finish - Post	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Termination	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]

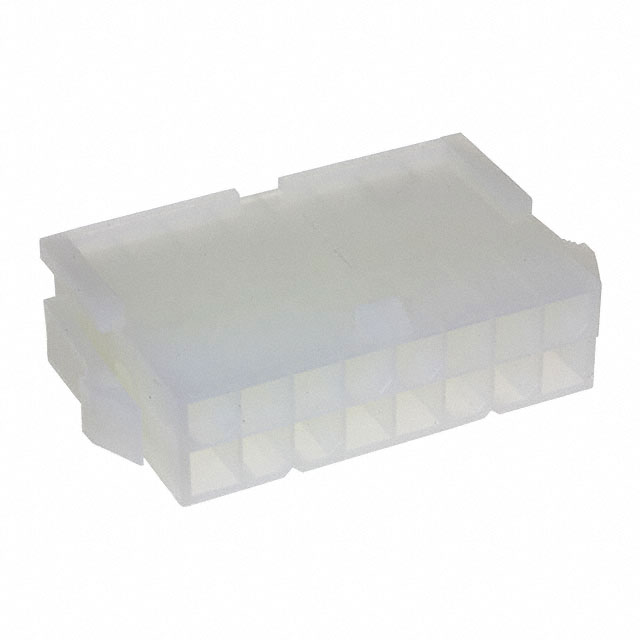

Adam Tech DMF-16-W	Contacts Not Included	0.165 in	4.2 mm	16	0.165 in	4.2 mm	Crimp	Female Socket	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Plug	Panel Mount Snap-In	2	Natural	-40 C	105 ░C
Adam Tech DMF-10-R-N				10				Male Pin	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Header	Right Angle Through Hole	2		-25 °C	120 °C	Natural	10 mm	0.394 "	0.165 in	4.2 mm	5.51 mm	0.217 in	Brass	Board to Cable/Wire	Square	7 A	600 VAC	All	Shrouded - 4 Wall	Tin	UL94 V-2	0.13 "	3.3 mm	Solder

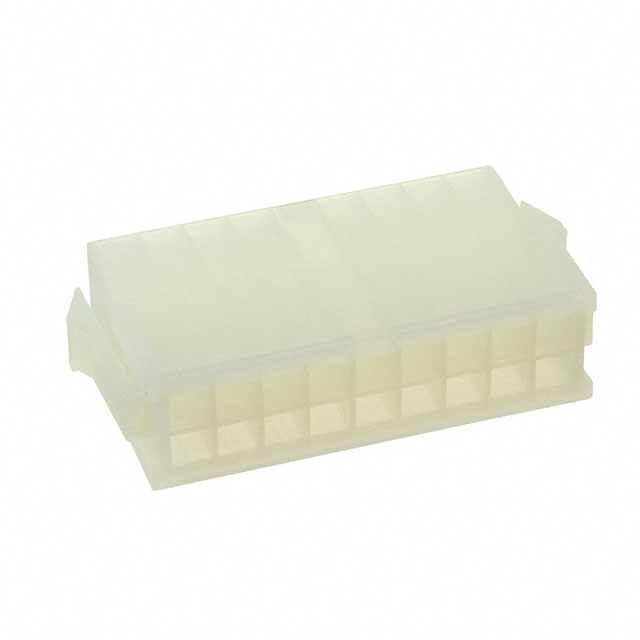

Adam Tech DMF-18-W	Contacts Not Included	0.165 in	4.2 mm	18	0.165 in	4.2 mm	Crimp	Female Socket	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Plug	Panel Mount Snap-In	2	Natural	-40 C	105 ░C

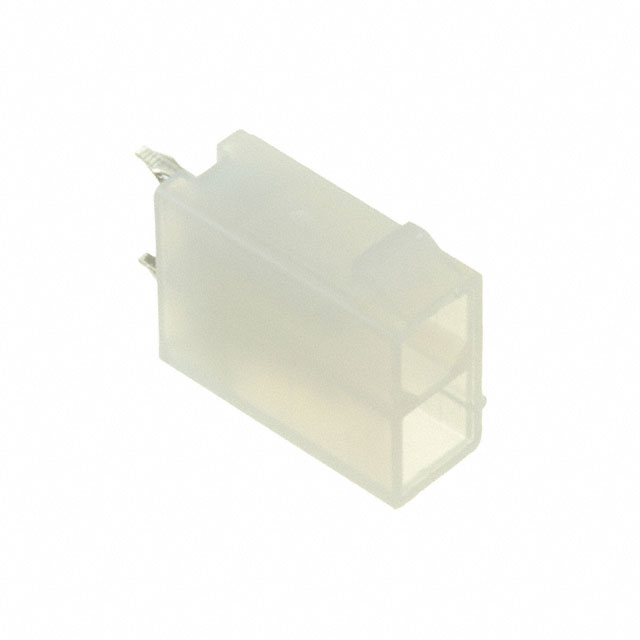

Adam Tech DMF-02-S				2				Male Pin	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Header	Through Hole	2		-25 °C	85 °C	Natural			0.165 in	4.2 mm	4.2 mm	0.165 in	Brass	Board to Cable/Wire	Square	7 A	250 VAC	All	Shrouded - 4 Wall	Tin	UL94 V-2		3.4 mm	Solder	12.8 mm	0.504 "	0.134 "

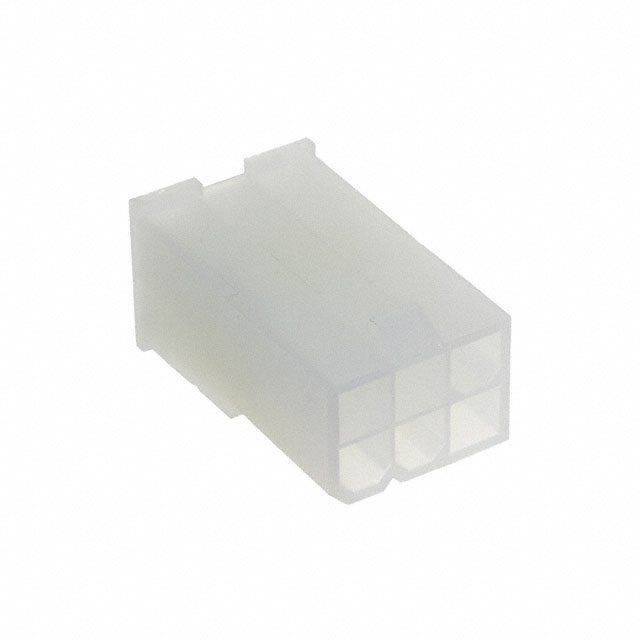

Adam Tech DMF-06-W-NE	Contacts Not Included	0.165 in	4.2 mm	6	0.165 in	4.2 mm	Crimp	Female Socket	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Plug	Free Hanging (In-Line)	2	Natural	-40 C	105 ░C
Adam Tech DMF-16-R-N				16				Male Pin	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Header	Right Angle Through Hole	2		-25 °C	120 °C	Natural	10 mm	0.394 "	0.165 in	4.2 mm	5.51 mm	0.217 in	Brass	Board to Cable/Wire	Square	6 A	600 VAC	All	Shrouded - 4 Wall	Tin	UL94 V-2	0.13 "	3.3 mm	Solder

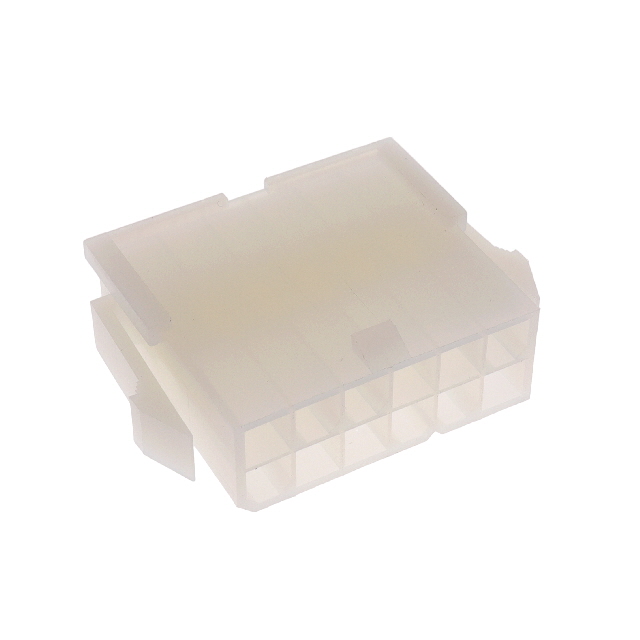

Adam Tech DMF-12-W	Contacts Not Included	0.165 in	4.2 mm	12	0.165 in	4.2 mm	Crimp	Female Socket	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Plug	Panel Mount Snap-In	2	Natural	-40 C	105 ░C
Adam Tech DMF-08-S				8				Male Pin	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Header	Through Hole	2		-25 °C	85 °C	Natural			0.165 in	4.2 mm	4.2 mm	0.165 in	Brass	Board to Cable/Wire	Square	7 A	250 VAC	All	Shrouded - 4 Wall	Tin	UL94 V-2		3.4 mm	Solder	12.8 mm	0.504 "	0.134 "

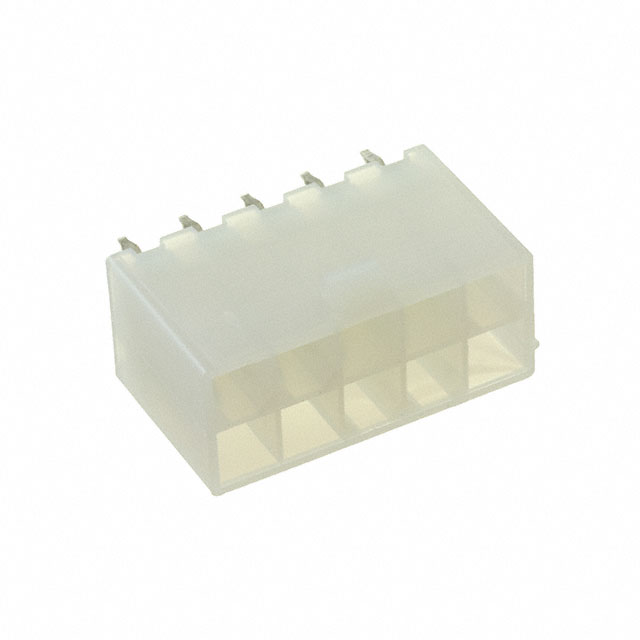

Adam Tech DMF-10-S				10				Male Pin	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Header	Through Hole	2		-25 °C	85 °C	Natural			0.165 in	4.2 mm	4.2 mm	0.165 in	Brass	Board to Cable/Wire	Square	7 A	250 VAC	All	Shrouded - 4 Wall	Tin	UL94 V-2		3.4 mm	Solder	12.8 mm	0.504 "	0.134 "
Adam Tech DMF-04-R-N				4				Male Pin	Nylon 6/6 Polyamide (PA66)	Locking Ramp	Header	Right Angle Through Hole	2		-25 °C	120 °C	Natural	10 mm	0.394 "	0.165 in	4.2 mm	5.51 mm	0.217 in	Brass	Board to Cable/Wire	Square	8 A	600 VAC	All	Shrouded - 4 Wall	Tin	UL94 V-2	0.13 "	3.3 mm	Solder
