M33506 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

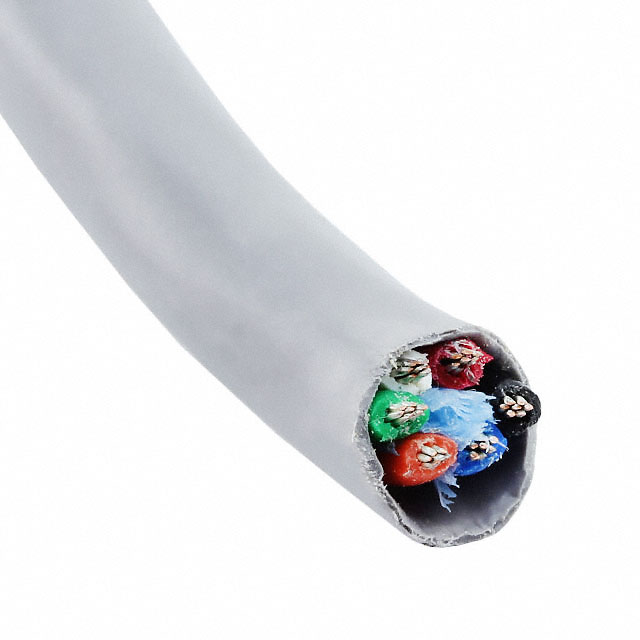

CABLE 6COND 18AWG SLATE 3000'
| Part | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Ratings | Cable Type | Jacket (Insulation) Material | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 6 | 7.32 mm | 0.288 " | 18 AWG | 80 °C | -20 ░C | 914.4 m | 3000 ' | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | 300 VDC | UL Style 2509 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Slate | 16 | 30 AWG | Copper Tinned |
