V Series Series

Basic / Snap Action Switches Miniature Basic Switch Power & Line Voltage Select Slide Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Basic / Snap Action Switches Miniature Basic Switch Power & Line Voltage Select Slide Switch

Part	Current Rating (Amps)	Circuit	Actuator Type	Contact Finish	Voltage Rating - DC	Termination Style	Voltage Rating - AC	Actuator Length	Contact Timing	Switch Function	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Features	Actuator Material	Contact Material	Mounting Type	Actuator Length [x]	Features [Max]	Features [Min]

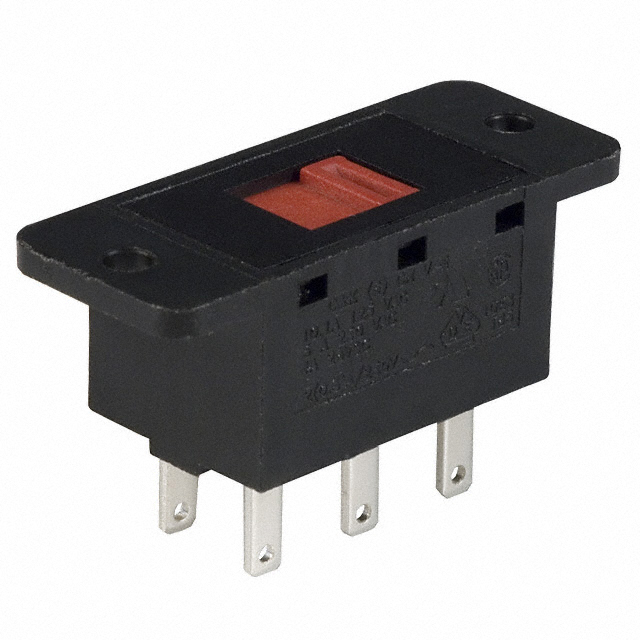

Littelfuse/Commercial Vehicle Products V80213SS05Q	4 A 10 A	DPDT	Screwdriver Slot	Silver	30 V	Quick Connect - 0.110" (2.8mm)	125 V	Flush	Not Specified	On-On	10000 Cycles	-30 ░C	85 °C	No Marking	Polyester Glass Filled	Copper
Littelfuse/Commercial Vehicle Products V80212S205QE	4 A 10 A	DPDT	Screwdriver Slot	Silver	30 V	Quick Connect - 0.110" (2.8mm)	125 V	Flush	Not Specified	On-On (Line Voltage Selector)	10000 Cycles	-30 ░C	85 °C	115V-230V Marking Epoxy Sealed Terminals	Polyester Glass Filled	Copper	Panel Mount Snap-In
Littelfuse/Commercial Vehicle Products V80201SS05Q	4 A 10 A	DPDT	Standard	Silver	30 V	Quick Connect - 0.110" (2.8mm)	125 V		Not Specified	On-On	10000 Cycles	-30 ░C	85 °C		Polyester Glass Filled	Copper		7.36 mm
Littelfuse/Commercial Vehicle Products V70112S205QE	4 A 10 A	SPST	Screwdriver Slot	Silver	30 V	Quick Connect - 0.110" (2.8mm)	125 V	Flush	Not Specified	On-Off	10000 Cycles	-30 ░C	85 °C	115V-230V Marking Epoxy Sealed Terminals	Polyester Glass Filled	Copper	Panel Mount Snap-In
Littelfuse/Commercial Vehicle Products V70212MS02Q	4 A 10 A	SPDT	Screwdriver Slot	Silver	30 V	PC Pin	125 V	Flush	Not Specified	On-On (Line Voltage Selector)	10000 Cycles	-30 ░C	85 °C		Polyester Glass Filled	Copper	Through Hole		230 V	115 V

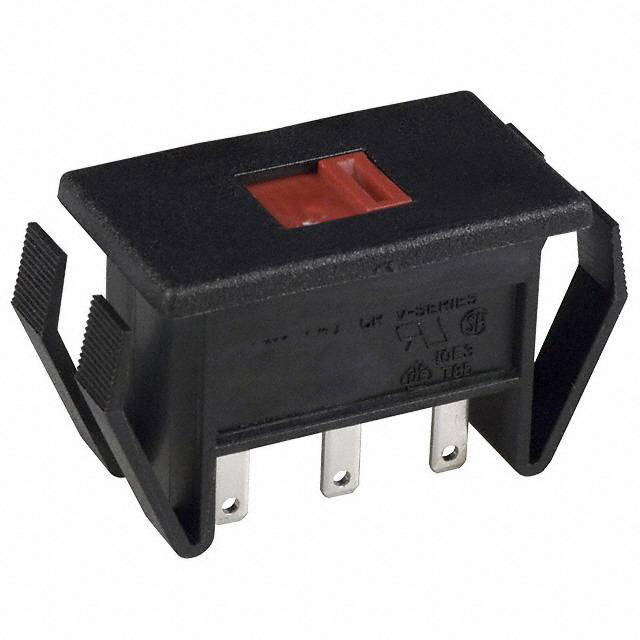

Littelfuse/Commercial Vehicle Products V80214S205Q	4 A 10 A	DPDT	Screwdriver Slot	Silver	30 V	Quick Connect - 0.110" (2.8mm)	125 V	Flush	Not Specified	On-On	10000 Cycles	-30 ░C	85 °C	O - Marking	Polyester Glass Filled	Copper	Panel Mount Snap-In

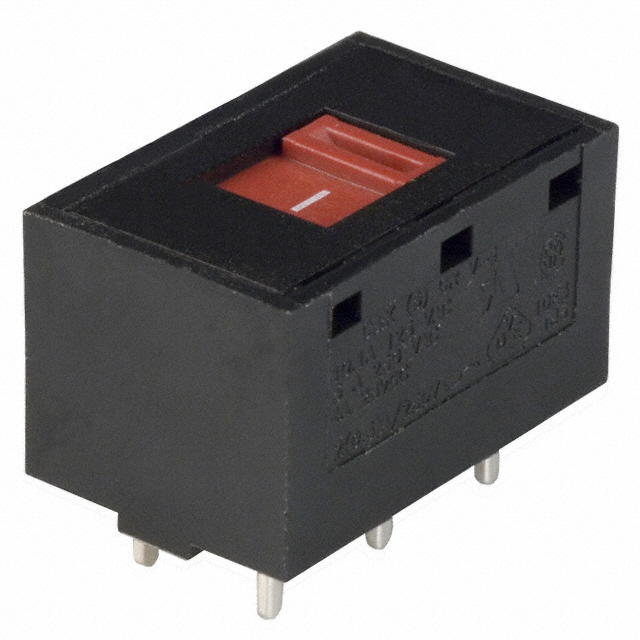

Littelfuse/Commercial Vehicle Products V80214MS02QE	4 A 10 A	DPDT	Screwdriver Slot	Silver	30 V	PC Pin	125 V	Flush	Not Specified	On-On	10000 Cycles	-30 ░C	85 °C	Epoxy Sealed Terminals O - Marking	Polyester Glass Filled	Copper	Through Hole
Littelfuse/Commercial Vehicle Products V70114SS05Q	4 A 10 A	SPST	Screwdriver Slot	Silver	30 V	Quick Connect - 0.110" (2.8mm)	125 V	Flush	Not Specified	On-Off	10000 Cycles	-30 ░C	85 °C	O - Marking	Polyester Glass Filled	Copper
Littelfuse/Commercial Vehicle Products V70214MA08Q	4 A 10 A	SPDT	Screwdriver Slot	Silver	30 V	PC Pin	125 V	Flush	Not Specified	On-On	10000 Cycles	-30 ░C	85 °C	O - Marking	Polyester Glass Filled	Copper	Through Hole Right Angle

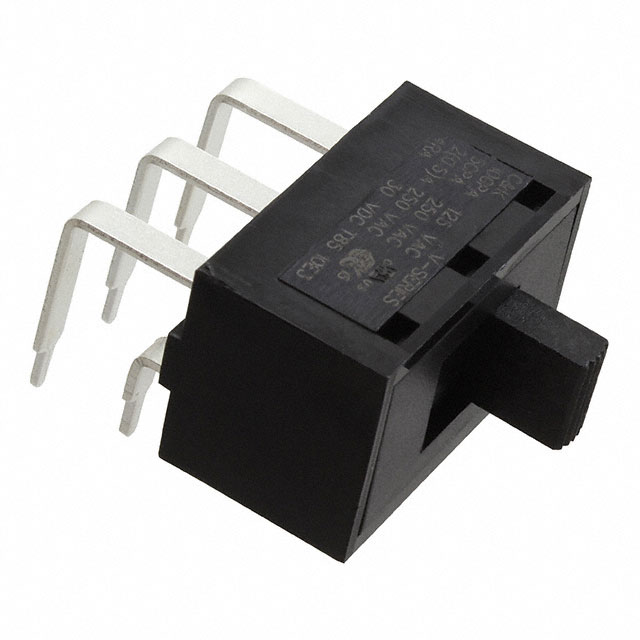

Littelfuse/Commercial Vehicle Products V80201MA08Q	4 A 10 A	DPDT	Standard	Silver	30 V	PC Pin	125 V		Not Specified	On-On	10000 Cycles	-30 ░C	85 °C		Polyester Glass Filled	Copper	Through Hole Right Angle	7.36 mm

Catalog

Basic / Snap Action Switches Miniature Basic Switch Power & Line Voltage Select Slide Switch

Key Features

• Ratings up to 10 Amps

• Snap-in panel and PC mounting

• Actuators with screwdriver slot

• Quick connect terminals available

Description

C&K’s V series power and line voltage select slide switches are used by appliance designers looking for a long-lasting, high-performance switch. Featuring a snap-in panel and PC mounting and actuators with a screwdriver slot, the V series also have optional quick connect terminals and are rated up to 10 amps.
