3092T Series
Manufacturer: Belden Inc.
Beta
⌘K

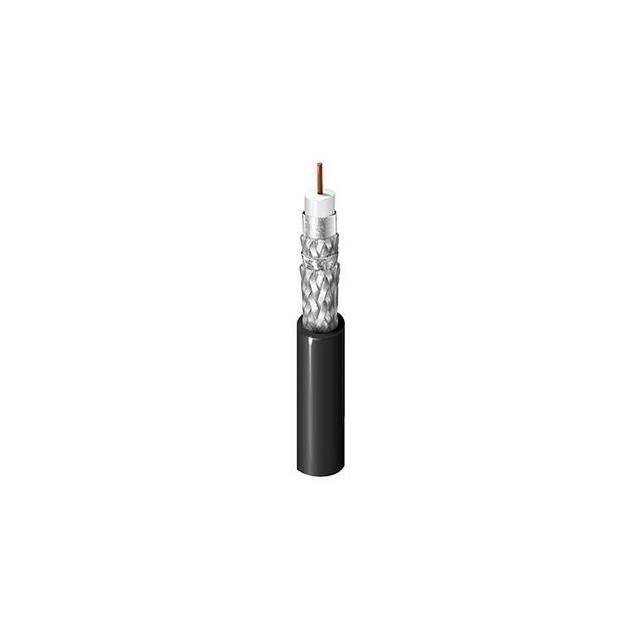

COAX 18AWG 100 OHM
| Part | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | Conductor Material | Dielectric Material | VoP, Velocity of Propagation | Shield Coverage [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Wire Gauge | Cable Group | Impedance | Jacket (Insulation) Material | Cable Type | Features | Conductor Strand | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 4.52 mm | 0.178 in | Aluminum | Copper Coated Steel | Foam Polyethylene (FPE) | 82 | 60 % 100 % | 7.62 mm | 0.3 in | Black | 18 AWG | RG-6 | 100 Ohms | Polyolefin (PO) | Coaxial | Flame Retardant Quad Shield | Solid | Braid Foil |
