SRS2Y Series

Manufacturer: Adam Tech

Catalog

CONN RCPT 10POS 0.031" GOLD SMD

Part	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Contact Material	Contact Finish - Mating	Features	Material Flammability Rating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Finish - Post	Mounting Type	Style	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Number of Positions	Number of Rows [custom]	Contact Finish Thickness - Mating	Termination	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]
Adam Tech SRS2Y-20-U-SMT	Flash	Square	Thermoplastic	Phosphor Bronze	Gold	Board Guide	UL94 V-0	Female Socket	-40 C	105 ░C	Black	Gold	Surface Mount	Board to Cable/Wire	Push-Pull	0.047 in	1.2 mm	Receptacle	20	2	Flash	Solder	0.8 mm	0.031 in	All	0.13 in	3.3 mm

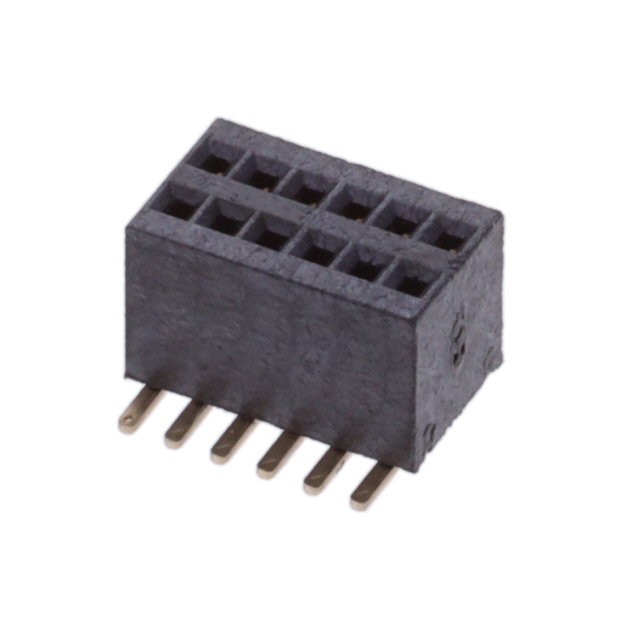

Adam Tech SRS2Y-12-U-SMT	Flash	Square	Thermoplastic	Phosphor Bronze	Gold	Board Guide	UL94 V-0	Female Socket	-40 C	105 ░C	Black	Gold	Surface Mount	Board to Cable/Wire	Push-Pull	0.047 in	1.2 mm	Receptacle	12	2	Flash	Solder	0.8 mm	0.031 in	All	0.13 in	3.3 mm

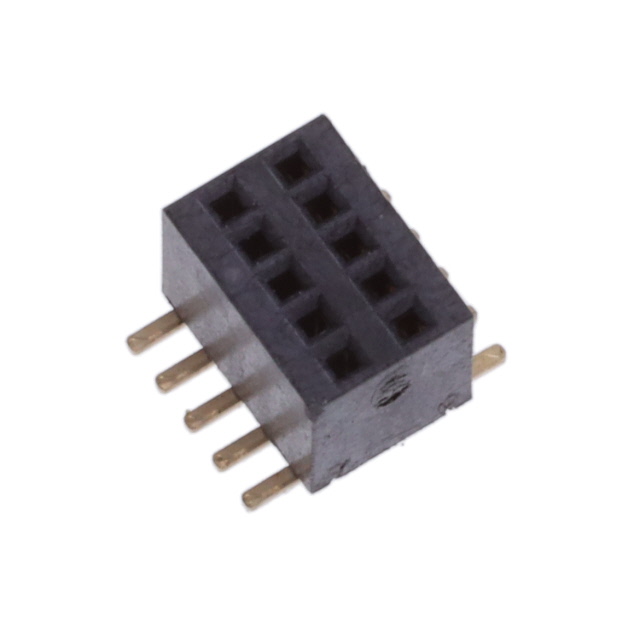

Adam Tech SRS2Y-10-U-SMT	Flash	Square	Thermoplastic	Phosphor Bronze	Gold	Board Guide	UL94 V-0	Female Socket	-40 C	105 ░C	Black	Gold	Surface Mount	Board to Cable/Wire	Push-Pull	0.047 in	1.2 mm	Receptacle	10	2	Flash	Solder	0.8 mm	0.031 in	All	0.13 in	3.3 mm

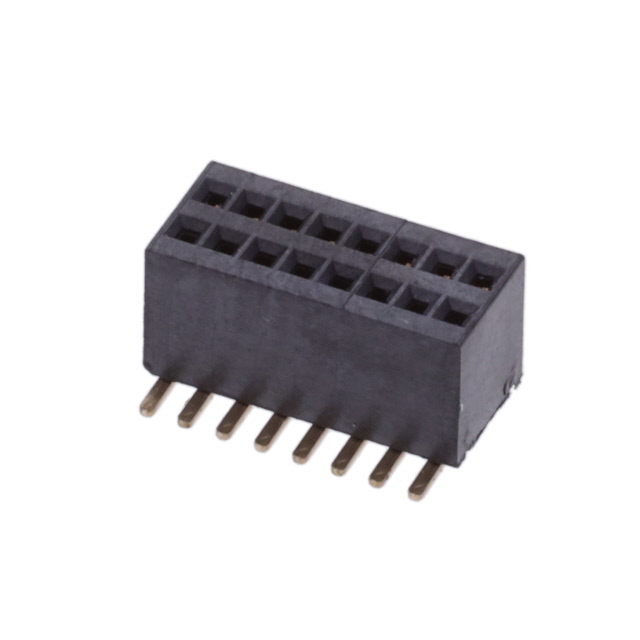

Adam Tech SRS2Y-16-U-SMT	Flash	Square	Thermoplastic	Phosphor Bronze	Gold	Board Guide	UL94 V-0	Female Socket	-40 C	105 ░C	Black	Gold	Surface Mount	Board to Cable/Wire	Push-Pull	0.047 in	1.2 mm	Receptacle	16	2	Flash	Solder	0.8 mm	0.031 in	All	0.13 in	3.3 mm
