Atp190 Series Series

19mm Anti-vandal Sealed Pushbutton Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

19mm Anti-vandal Sealed Pushbutton Switch

Part	Panel Cutout Dimensions [diameter]	Electrical Life	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Color - Actuator/Cap	Mechanical Life	Circuit	Mounting Type	Voltage Rating - DC	Ingress Protection	Illumination Voltage (Nominal)	Type	Current Rating (Amps)	Illumination Type, Color	Termination Style	Termination Style	Termination Style	Switch Function	Voltage Rating - AC
Littelfuse/Commercial Vehicle Products ATP19-SL1-324-B0SE-03Q	19.2 mm	50000 Cycles	No Marking	55 °C	-20 C	Button Flush Round	Silver	500000 Cycles	SPDT	Panel Mount Front	28 V	IP67 - Dust Tight Waterproof	24 V	Anti-Vandal Illuminated	3 A	LED Red	0.11 in	Quick Connect Solder	2.8 mm	On-On	250 V

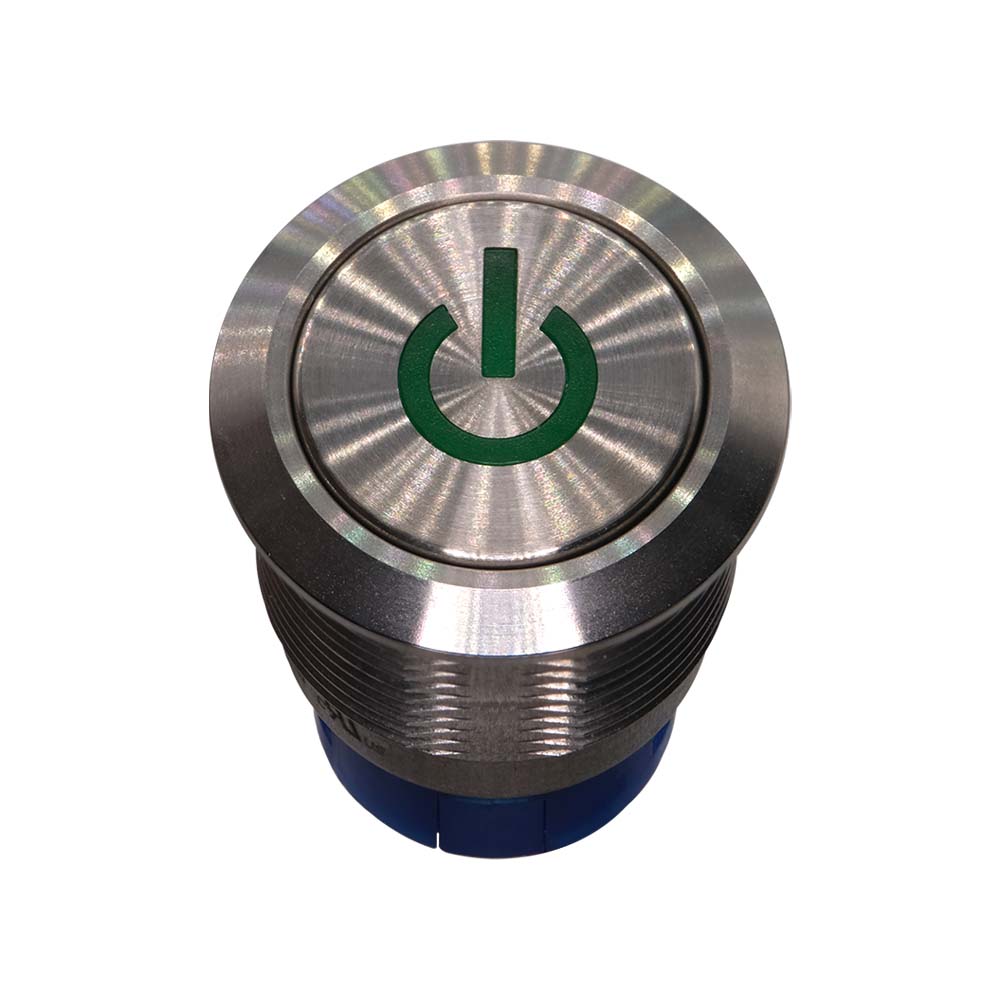

Littelfuse/Commercial Vehicle Products ATP19-SL4-612-M0DE-03Q	19.2 mm	50000 Cycles	Power Symbol	55 °C	-20 C	Button Flush Round	Silver	500000 Cycles	DPDT	Panel Mount Front	28 V	IP67 - Dust Tight Waterproof	12 VDC	Anti-Vandal Illuminated	3 A	Green LED	0.11 in	Quick Connect Solder	2.8 mm	On-On	250 V
Littelfuse/Commercial Vehicle Products ATP19-SL1-512-B0SA-03Q	19.2 mm	50000 Cycles	No Marking	55 °C	-20 C	Button Flush Round	Silver	1000000 Cycles	SPDT	Panel Mount Front	28 V	IP67 - Dust Tight Waterproof	12 VDC	Anti-Vandal Illuminated	3 A	LED Yellow	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	250 V

Catalog

19mm Anti-vandal Sealed Pushbutton Switch

Key Features

• IP67 sealed to endure harsh environments

• IK10 rated impact protection

• Snap-action provide positive feedback

• 1,000,000 life cycle

Description

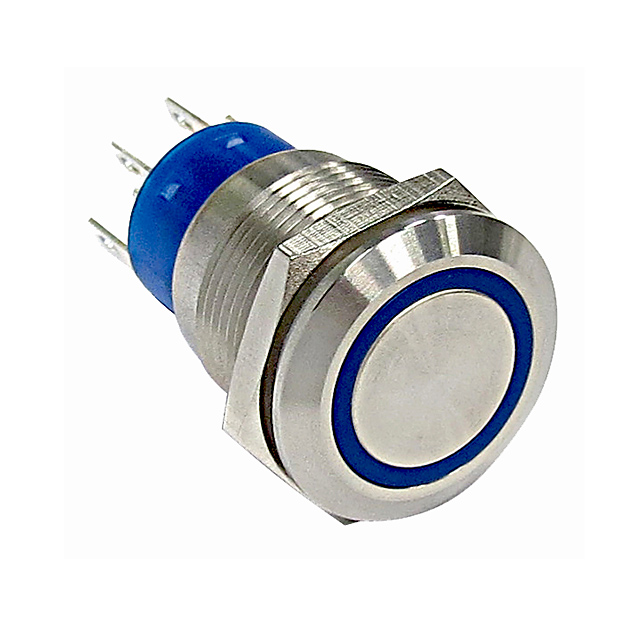

The ATP19 series is an anti-vandal sealed pushbutton switch that offers the industry standard ring illuminated version in 19 mm diameter. The pushbutton switches use a scratch resistant actuator and housings are made of robust stainless steel particularly suitable for use in equipment subjected to harsh conditions or applications that require protection from vandalism. The 19 mm pushbuttons meet the seal protection and impact resistance ratings of IP67 and IK10 that design to withstand the possible extreme outdoor environmental and may subject to abuse. Also, the ATP19 comes with a variety of LED colors as illuminated pushbuttons and various of indicators on the actuator that meet your application needs.
