109P0812 Series

Catalog

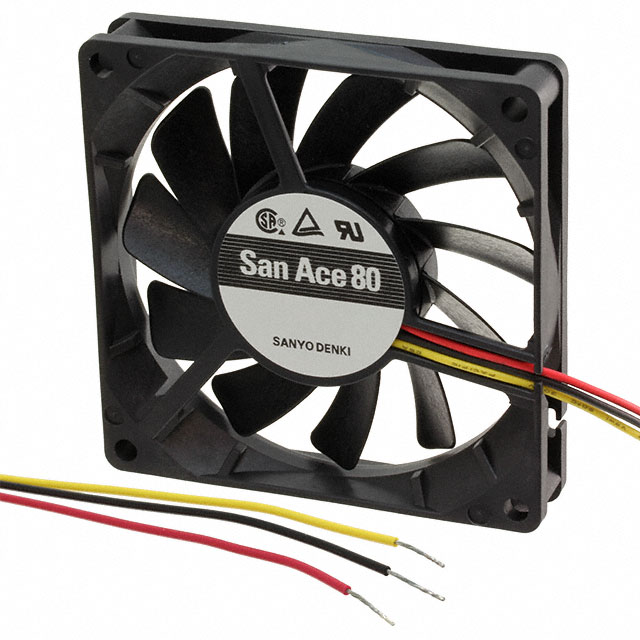

FAN AXIAL 80X15MM 12VDC WIRE

Part	Lifetime @ Temp.	Current Rating (Amps)	Material - Blade	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Features	Fan Type	RPM	Voltage - Rated	Termination	Air Flow	Air Flow	Noise	Size / Dimension [z]	Size / Dimension [x]	Weight	Weight	Width [y]	Power (Watts)	Static Pressure	Static Pressure	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Weight [custom]	Weight [custom]	Operating Temperature [Max]	Operating Temperature [Min]
Sanyo Denki America Inc. 109P0812H7D01	40000 Hrs	0.2 A	Plastic	Plastic	13.8 VDC	7 V	Locked Rotor Sensor	Tubeaxial	3100 RPM	12 VDC	3 Wire Leads	32.1 CFM	0.899 mł/min	31 dB(A)	80 mm	80 mm	68.04 g	0.15 lb	15 mm	2.4 W	0.118 in H2O	29.4 Pa	CSA TUV UL	-20 ░C	70 °C	Ball
Sanyo Denki America Inc. 109P0812M6D01			Plastic	Plastic	13.8 VDC	10.2 VDC	Locked Rotor Sensor	Tubeaxial	2300 RPM	12 VDC	3 Wire Leads	23.7 CFM	0.664 m³/min	25 dB(A)	80 mm	80 mm			20 mm	1.56 W	0.075 in H2O	18.6 Pa	CSA TUV UL	-20 ░C	70 °C	Ball	100.7 g	0.222 lb
Sanyo Denki America Inc. 109P0812H602		0.21 A	Plastic	Plastic	13.8 VDC	10.2 VDC		Tubeaxial	2900 RPM	12 VDC	2 Wire Leads	29.7 CFM	0.832 mł/min	31 dB(A)	80 mm	80 mm			20 mm	2.52 W	0.118 in H2O	29.4 Pa	CSA TUV UL	-20 ░C	70 °C	Ball	100.7 g	0.222 lb
Sanyo Denki America Inc. 109P0812M602			Plastic	Plastic	13.8 VDC	10.2 VDC		Tubeaxial	2300 RPM	12 VDC	2 Wire Leads	23.7 CFM	0.664 m³/min	25 dB(A)	80 mm	80 mm			20 mm	1.56 W	0.075 in H2O	18.6 Pa	CSA TUV UL	-20 ░C	70 °C	Ball	100.7 g	0.222 lb
Sanyo Denki America Inc. 109P0812M202		70 mA	Plastic	Plastic	13.8 VDC	10.2 VDC		Tubeaxial	2000 RPM	12 VDC	2 Wire Leads	23 CFM	0.644 m³/min	21 dB(A)	80 mm	80 mm	150.14 g	0.331 lb	32 mm	840 mW	0.075 in H2O	18.6 Pa	CSA TUV UL	-20 ░C	70 °C	Ball
Sanyo Denki America Inc. 109P0812H601		0.21 A	Plastic	Plastic	13.8 VDC	10.2 VDC	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	2900 RPM	12 VDC	3 Wire Leads	29.7 CFM	0.832 mł/min	31 dB(A)	80 mm	80 mm			20 mm	2.52 W	0.118 in H2O	29.4 Pa	CSA TUV UL	-20 ░C	70 °C	Ball	100.7 g	0.222 lb
Sanyo Denki America Inc. 109P0812M702		0.09 A	Plastic	Plastic	13.8 VDC	7 V		Tubeaxial	2000 RPM	12 VDC	2 Wire Leads	20.1 CFM	0.563 m³/min	21 dB(A)	80 mm	80 mm	68.04 g	0.15 lb	15 mm	1.08 W	0.051 in H2O	12.7 Pa	CSA TUV UL	-20 ░C	70 °C	Ball
Sanyo Denki America Inc. 109P0812H702	40000 Hrs	0.2 A	Plastic	Plastic	13.8 VDC	7 V		Tubeaxial	3100 RPM	12 VDC	2 Wire Leads	32.1 CFM	0.899 mł/min	31 dB(A)	80 mm	80 mm	68.04 g	0.15 lb	15 mm	2.4 W	0.118 in H2O	29.4 Pa	CSA TUV UL	-20 ░C	70 °C	Ball

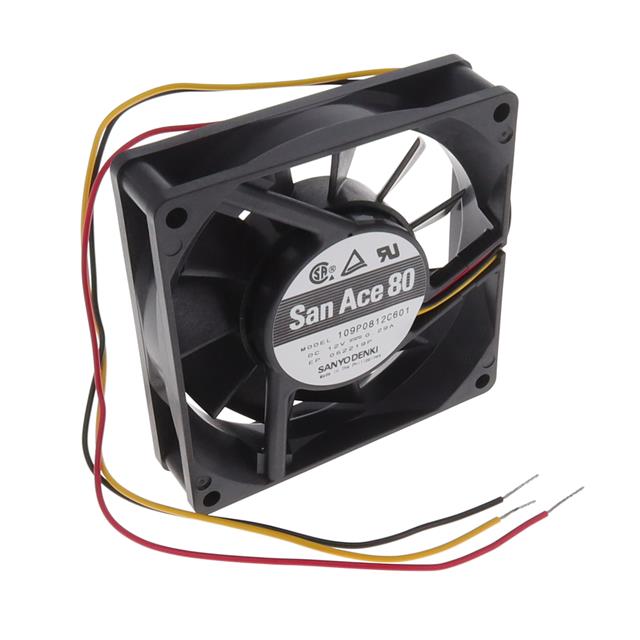

Sanyo Denki America Inc. 109P0812C601		0.29 A	Plastic	Plastic	13.8 VDC	10.2 VDC	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	3700 RPM	12 VDC	3 Wire Leads	37.8 CFM	1.06 mł/min	39 dB(A)	80 mm	80 mm			20 mm	3.48 W	0.185 in H2O	46.1 Pa	CSA TUV UL	-20 ░C	60 °C	Ball	100.7 g	0.222 lb	60 °C	-4 °F
Sanyo Denki America Inc. 109P0812C6D01		0.29 A	Plastic	Plastic	13.8 VDC	10.2 VDC	Locked Rotor Sensor	Tubeaxial	3700 RPM	12 VDC	3 Wire Leads	37.8 CFM	1.06 mł/min	39 dB(A)	80 mm	80 mm			20 mm	3.48 W	0.185 in H2O	46.1 Pa	CSA TUV UL	-20 ░C	60 °C	Ball	100.7 g	0.222 lb	60 °C	-4 °F
