3057Y Series

Catalog

RES,WIREWOUND,50KOHMS,5+/-% TOL

Part	Resistive Material	Number of Turns	Termination Style	Resistance	Adjustment Type	Temperature Coefficient	Mounting Type	Power (Watts)	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Bourns Inc. 3057Y-1-503	Wirewound	22	PC Pins	50000 Ohms	Side Adjustment	50 ppm/░C	Chassis Mount	1 W	5 %	0.315 in	4.83 mm	0.19 in	8 mm
Bourns Inc. 3057Y-1-503M	Wirewound	22	PC Pins	50000 Ohms	Side Adjustment	50 ppm/░C	Panel Mount Through Hole	1 W	5 %	0.315 in	4.83 mm	0.19 in	8 mm
Bourns Inc. 3057Y-1-200	Wirewound	22	PC Pins	20 Ohms	Side Adjustment	50 ppm/░C	Chassis Mount	1 W	5 %	0.315 in	4.83 mm	0.19 in	8 mm
Bourns Inc. 3057Y-1-102	Wirewound	22	PC Pins	1000 Ohms	Side Adjustment	50 ppm/░C	Chassis Mount	1 W	5 %	0.315 in	4.83 mm	0.19 in	8 mm
Bourns Inc. 3057Y-1-251	Wirewound	22	PC Pins	250 Ohms	Side Adjustment	50 ppm/░C	Chassis Mount	1 W	5 %	0.315 in	4.83 mm	0.19 in	8 mm

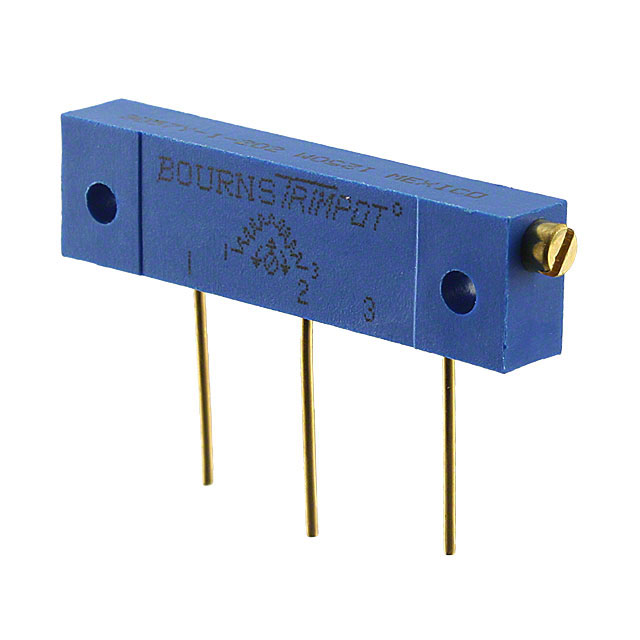

Bourns Inc. 3057Y-1-202M	Wirewound	22	PC Pins	2 kOhms	Side Adjustment	50 ppm/░C	Panel Mount Through Hole	1 W	5 %	0.315 in	4.83 mm	0.19 in	8 mm
Bourns Inc. 3057Y-1-201M	Wirewound	22	PC Pins	200 Ohms	Side Adjustment	50 ppm/░C	Panel Mount Through Hole	1 W	5 %	0.315 in	4.83 mm	0.19 in	8 mm
Bourns Inc. 3057Y-1-253	Wirewound	22	PC Pins	25 kOhms	Side Adjustment	50 ppm/░C	Chassis Mount	1 W	5 %	0.315 in	4.83 mm	0.19 in	8 mm

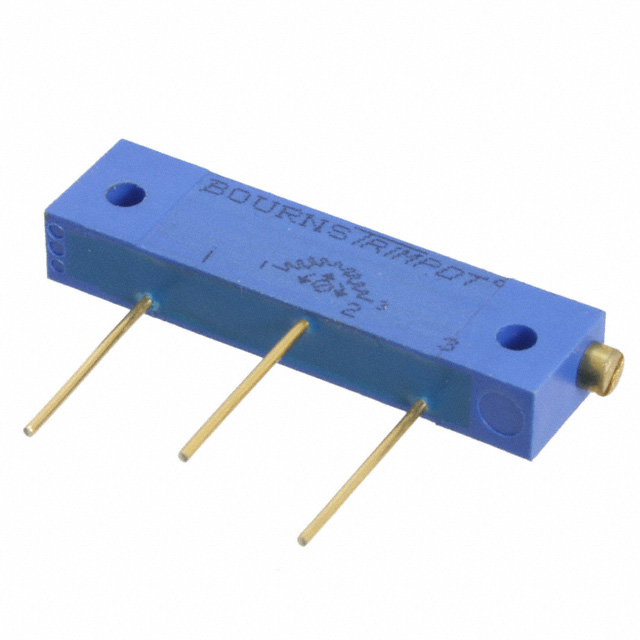

Bourns Inc. 3057Y-1-500	Wirewound	22	PC Pins	50 Ohms	Side Adjustment	50 ppm/░C	Chassis Mount	1 W	5 %	0.315 in	4.83 mm	0.19 in	8 mm
Bourns Inc. 3057Y-1-101	Wirewound	22	PC Pins	100 Ohms	Side Adjustment	50 ppm/░C	Chassis Mount	1 W	5 %	0.315 in	4.83 mm	0.19 in	8 mm
