302-S10 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

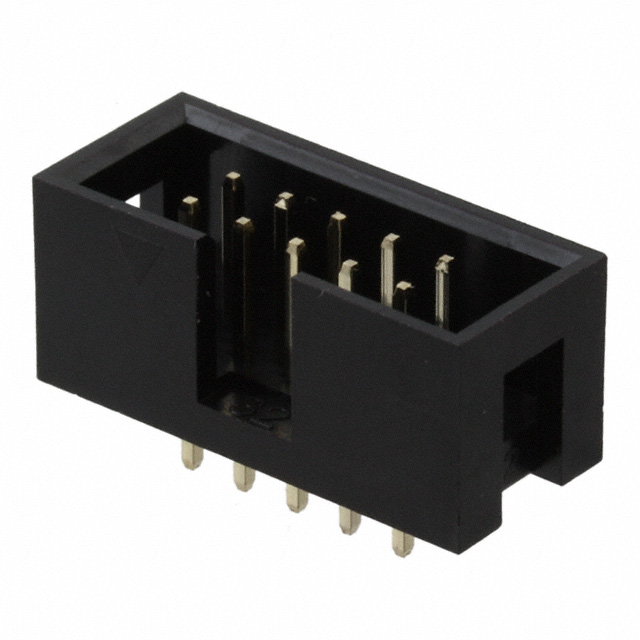

CONN HEADER VERT 10POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Contact Shape | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Contact Finish - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Post | Material Flammability Rating | Contact Finish Thickness - Mating | Fastening Type | Mounting Type | Features | Contact Type | Number of Rows [custom] | Insulation Material | Number of Positions | Shrouding | Termination | Voltage Rating | Connector Type | Style | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1.25 µin | 0.032 µm | 3 A | Square | 0.1 " | 2.54 mm | 0.358 " | 9.1 mm | All | Brass | 0.122 in | 3.1 mm | Black | Gold | 0.1 in | 2.54 mm | Gold | UL94 V-0 | Flash | Push-Pull | Through Hole | Keying Slot | Male Pin | 2 | Polyester Glass Filled | 10 | Shrouded - 4 Wall | Solder | 250 V | Header | Board to Cable/Wire | -40 C | 105 ░C |
