10075024 Series

Catalog

CONN HEADER VERT 34POS 2MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Fastening Type	Voltage Rating	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Insulation Material	Style	Termination	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Finish - Post	Number of Positions Loaded	Connector Type	Contact Shape	Mounting Type	Contact Finish - Mating	Contact Material	Number of Positions [custom]	Shrouding	Contact Length - Mating	Contact Length - Mating	Number of Rows [custom]	Number of Positions	Contact Finish Thickness - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Features
Amphenol ICC (FCI) 10075024-S01-17ULF	78.7 µin	2 µm	0.079 "	2 mm	0.059 in	1.5 mm	Push-Pull	200 V	7.49 mm	0.295 in	UL94 V-0	0.38 µm	15 µin	2 A	2 mm	0.079 in	Thermoplastic	Board to Board Cable	Solder	Black	2 mm	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy	34	Unshrouded	4 mm	0.157 in	2
Amphenol ICC (FCI) 10075024-S01-14ULF	78.7 µin	2 µm	0.079 "	2 mm	0.059 in	1.5 mm	Push-Pull	200 V	7.49 mm	0.295 in	UL94 V-0	0.38 µm	15 µin	2 A	2 mm	0.079 in	Thermoplastic	Board to Board Cable	Solder	Black	2 mm	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy		Unshrouded	4 mm	0.157 in	2	28

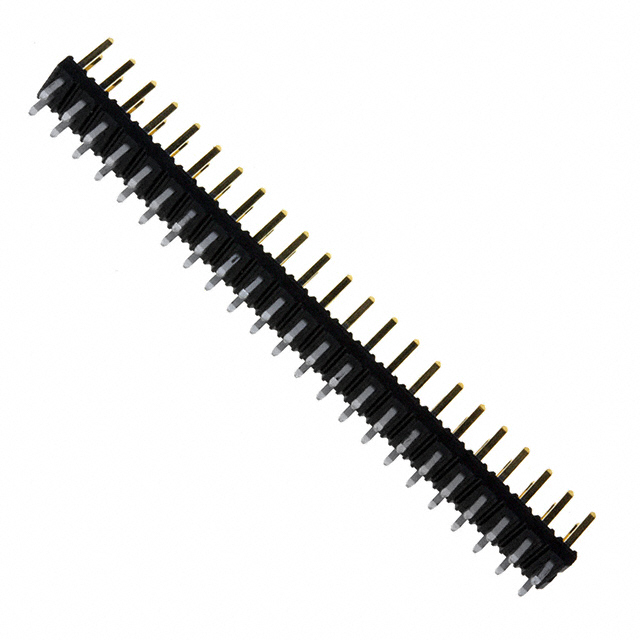

Amphenol ICC (FCI) 10075024-G01-23ULF	78.7 µin	2 µm	0.079 "	2 mm	0.059 in	1.5 mm	Push-Pull	200 V	7.49 mm	0.295 in	UL94 V-0	0.76 Ám	30 Áin	2 A	2 mm	0.079 in	Thermoplastic	Board to Board Cable	Solder	Black	2 mm	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy		Unshrouded	4 mm	0.157 in	2	46
Amphenol ICC (FCI) 10075024-F01-06ULF	78.7 µin	2 µm	0.079 "	2 mm	0.059 in	1.5 mm	Push-Pull	200 V	7.49 mm	0.295 in	UL94 V-0			2 A	2 mm	0.079 in	Thermoplastic	Board to Board Cable	Solder	Black	2 mm	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy		Unshrouded	4 mm	0.157 in	2	12	Flash
Amphenol ICC (FCI) 10075024-F01A22ULF	78.7 µin	2 µm	0.079 "	2 mm	0.059 in	1.5 mm	Push-Pull	200 V	7.49 mm	0.295 in	UL94 V-0			2 A	2 mm	0.079 in	Thermoplastic	Board to Board Cable	Solder	Black	2 mm	0.079 in	Male Pin	Tin		Header	Square	Through Hole	Gold	Copper Alloy		Unshrouded	4 mm	0.157 in	2	22	Flash	21
Amphenol ICC (FCI) 10075024-F03-04ALF	78.7 µin	2 µm	0.079 "	2 mm	0.059 in	1.5 mm	Push-Pull	200 VAC	9.3 mm	0.366 in	UL94 V-0			2 A	2 mm	0.079 in	Thermoplastic		Solder	Black	2 mm	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy		Unshrouded	5.8 mm	0.228 in	2	8	Flash		-55 C	125 °C
Amphenol ICC (FCI) 10075024-G01-15ULF	78.7 µin	2 µm	0.079 "	2 mm	0.059 in	1.5 mm	Push-Pull	200 V	7.49 mm	0.295 in	UL94 V-0	0.76 Ám	30 Áin	2 A	2 mm	0.079 in	Thermoplastic	Board to Board Cable	Solder	Black	2 mm	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy		Unshrouded	4 mm	0.157 in	2	30
Amphenol ICC (FCI) 10075024-F01-04PLF	78.7 µin	2 µm	0.079 "	2 mm	0.059 in	1.5 mm	Push-Pull	200 V	7.49 mm	0.295 in	UL94 V-0			2 A	2 mm	0.079 in	Thermoplastic	Board to Board Cable	Solder	Black	2 mm	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy		Unshrouded	4 mm	0.157 in	2	8	Flash				Pick and Place
Amphenol ICC (FCI) 10075024-S01-11ULF	78.7 µin	2 µm	0.079 "	2 mm	0.059 in	1.5 mm	Push-Pull	200 V	7.49 mm	0.295 in	UL94 V-0	0.38 µm	15 µin	2 A	2 mm	0.079 in	Thermoplastic	Board to Board Cable	Solder	Black	2 mm	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy		Unshrouded	4 mm	0.157 in	2	22
Amphenol ICC (FCI) 10075024-G01-03ULF	78.7 µin	2 µm	0.079 "	2 mm	0.059 in	1.5 mm	Push-Pull	200 V	7.49 mm	0.295 in	UL94 V-0	0.76 Ám	30 Áin	2 A	2 mm	0.079 in	Thermoplastic	Board to Board Cable	Solder	Black	2 mm	0.079 in	Male Pin	Tin	All	Header	Square	Through Hole	Gold	Copper Alloy		Unshrouded	4 mm	0.157 in	2	6
