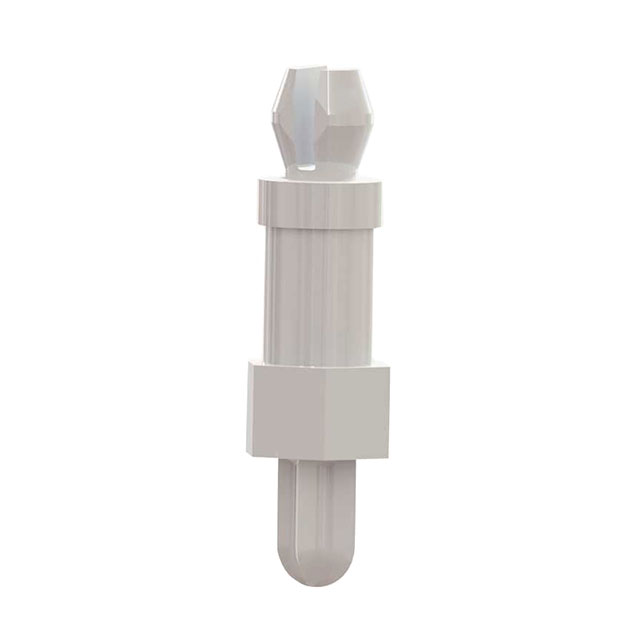

MSPMST Series

Catalog

BRD SPT SNAP FIT THR STUD 5/8"

Part	Mounting Type	Length - Overall	Length - Overall	Mounting Panel Thickness	Mounting Panel Thickness	Between Board Height	Between Board Height	Between Board Height	Features	Holding Type	Material	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Length - Overall [x]	Length - Overall [x]
Essentra Components MSPMST-10-01	Threaded Stud	0.957 in	24.3 mm	0.18 in	4.6 mm	15.88 mm	0.625 in	5 8	M3 Thread	Snap Fit	Nylon	0.125 in	0.125 in	3.18 mm	1.57 mm	0.062 in	0.0625 in
Essentra Components MSPMST-2-01	Threaded Stud			0.18 in	4.6 mm	3.18 mm	0.125 in	0.125 in	M3 Thread	Snap Fit	Nylon	0.125 in	0.125 in	3.18 mm	1.57 mm	0.062 in	0.0625 in	11.57 mm	0.456 in
Essentra Components MSPMST-8-01	Threaded Stud			0.18 in	4.6 mm	12.7 mm	0.5 in	0.5 in	M3 Thread	Snap Fit	Nylon	0.125 in	0.125 in	3.18 mm	1.57 mm	0.062 in	0.0625 in	21.1 mm	0.831 in
