RP415 Series

Catalog

LINE FILTER 480VAC 8A CHASSIS

...

Part	Voltage - Rated AC (Phase to Ground/Neutral)	Termination Style	Current	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Filter Type	Voltage - Rated AC	Approval Agency	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]
Astrodyne TDI RP415-8-100-W	3.5 kV	Wire Leads	8 A	100 °C	-25 °C	Chassis Mount	General Purpose	Three Phase (Wye)	480 V	CE CSA cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz
Astrodyne TDI RP415-16-10-W	3.5 kV	Wire Leads	16 A	100 °C	-25 °C	Chassis Mount	General Purpose	Three Phase (Wye)	480 V	CE CSA cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz
Astrodyne TDI RP415-25-2000-W	3.5 kV	Wire Leads	25 A	100 °C	-25 °C	Chassis Mount	General Purpose	Three Phase (Wye)	480 V	CE CSA cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz
Astrodyne TDI RP415-160-10-C	3.5 kV	Terminal Block	160 A	100 °C	-25 °C	Chassis Mount	General Purpose	Three Phase (Wye)	480 V	CE CSA cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz
Astrodyne TDI RP415-120-100-C	3.5 kV	Terminal Block	120 A	100 °C	-25 °C	Chassis Mount	General Purpose	Three Phase (Wye)	480 V	CE CSA cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz
Astrodyne TDI RP415-16-1000-S	3.5 kV	Threaded Post (M5)	16 A	100 °C	-25 °C	Chassis Mount	General Purpose	Three Phase (Wye)	480 V	CE CSA cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz
Astrodyne TDI RP415-160-1000-W	3.5 kV	Wire Leads	160 A	100 °C	-25 °C	Chassis Mount	General Purpose	Three Phase (Wye)	480 V	CE CSA cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz

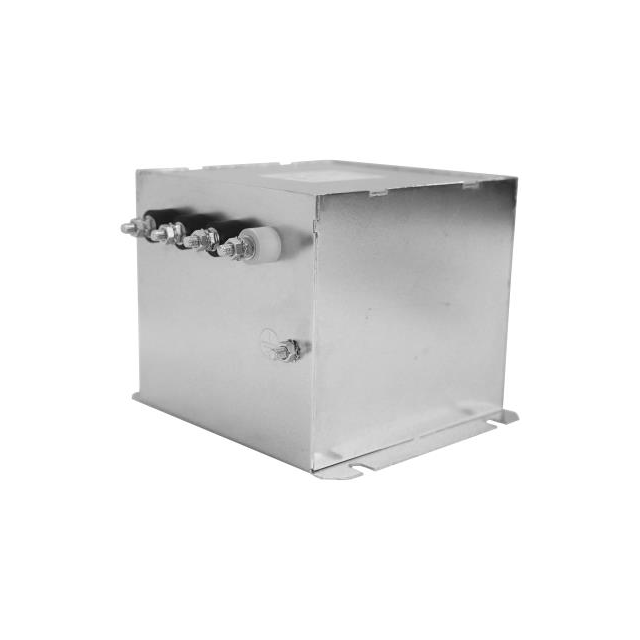

Astrodyne TDI RP415-8-0-S	3.5 kV	Threaded Post (M5)	8 A	100 °C	-25 °C	Chassis Mount	General Purpose	Three Phase (Wye)	480 V	CE CSA cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz
Astrodyne TDI RP415-160-2000-W	3.5 kV	Wire Leads	160 A	100 °C	-25 °C	Chassis Mount	General Purpose	Three Phase (Wye)	480 V	CE CSA cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz
Astrodyne TDI RP415-25-100-C	3.5 kV	Terminal Block	25 A	100 °C	-25 °C	Chassis Mount	General Purpose	Three Phase (Wye)	480 V	CE CSA cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz
