RR9KA4500 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

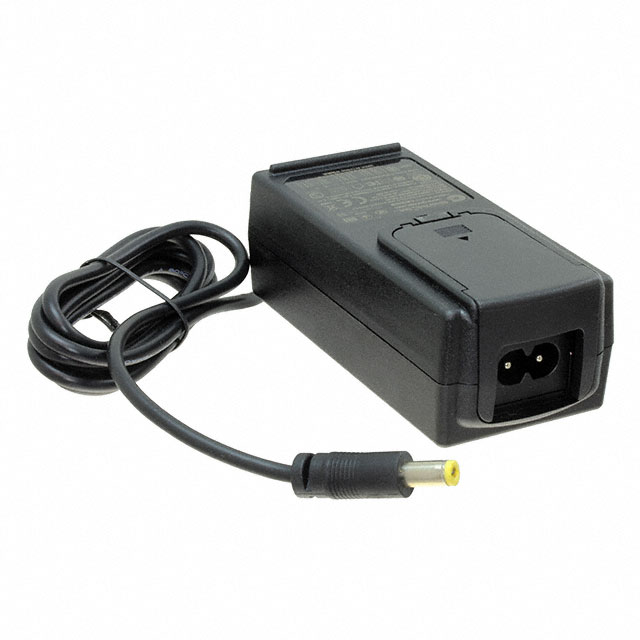

AC/DC DSKTP/WALL MT ADAPT 5V 23W
| Part | Standard Number | Region Utilized | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Output | No Load Power Consumption | Current - Output (Max) [Max] | Efficiency | Output Connector | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Cord Length | Cord Length | Form | Input Connector | Approval Agency | Input Type | Applications | Output Connector [x] | Output Connector [diameter] | Polarization |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | 1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1 | International | -20 ░C | 40 °C | 1.83 " | 38.2 mm | 46.5 mm | 101.7 mm | 1.5 in | 4 in | 5 V | 75 mW | 4.5 A | Level VI | Barrel Plug Kit (1.3mm x 3.5mm | 264 VAC | 90 VAC | 23 Watts | 1.2 m | 47.2 in | Desktop Wall Mount | IEC 320-C8 Multi-Blade | CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO UL VCCI | Cord (Sold Separately) Multi-Blade (Single Blade Included) | Household Appliances ITE (Commercial) Medical | |||
 GlobTek, Inc. | 1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1 | International | -20 ░C | 40 °C | 1.83 " | 38.2 mm | 46.5 mm | 101.7 mm | 1.5 in | 4 in | 5 V | 75 mW | 4.5 A | Level VI | Barrel Plug | 264 VAC | 90 VAC | 23 Watts | 1.2 m | 47.2 in | Desktop Wall Mount | IEC 320-C8 Multi-Blade | CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO UL VCCI | Cord Multi-Blade (Sold Separately) | Household Appliances ITE (Commercial) Medical | 11 mm | 2.1 mm 5.5 mm | Positive Center |
