FFB1224 Series

Catalog

FAN AXIAL 120X25.4MM 24VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Material - Frame	Size / Dimension [z]	Size / Dimension [x]	Noise	Termination	Bearing Type	Power (Watts)	Fan Type	RPM	Voltage - Rated	Air Flow	Air Flow	Width [y]	Static Pressure	Static Pressure	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Features	Ingress Protection
Delta Electronics FFB1224HH	14 VDC	26.4 VDC	0.28 A	70000 Hrs	Plastic	Plastic	120 mm	120 mm	49.7 dB(A)	2 Wire Leads	Ball	6.72 W	Tubeaxial	3100 RPM	24 VDC	3.21 m³/min	114.7 CFM	25.4 mm	71.7 Pa	0.288 in H2O	205.02 g	0.452 lb	-10 °C	60 °C	CE CSA UL VDE

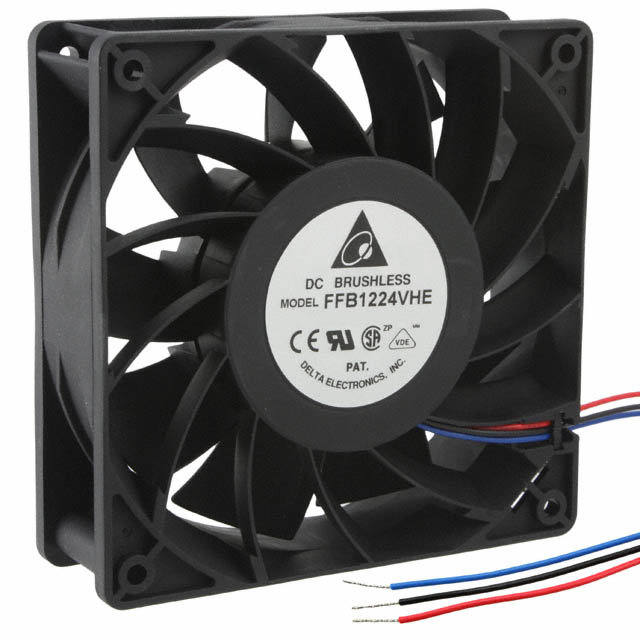

Delta Electronics FFB1224VHE-BR00	14 VDC	26.4 VDC	0.56 A	70000 Hrs	Plastic	Plastic	120 mm	120 mm	53 dB	3 Wire Leads	Ball	13.44 W	Tubeaxial	3200 RPM	24 VDC	4.25 m³/min	151.9 CFM	38 mm	110.8 Pa	0.445 in H2O	370.13 g	0.816 lb	-10 °C	60 °C	CE CSA UL VDE	Locked Rotor Sensor
Delta Electronics FFB1224EHE-F00	14 VDC	26.4 VDC	1 A	70000 Hrs	Plastic	Plastic	120 mm	120 mm	59 dB(A)	3 Wire Leads	Ball	24 W	Tubeaxial	4000 RPM	24 VDC	5.32 m³/min	190 CFM	38 mm	174.4 Pa	0.7 in H2O	370.13 g	0.816 lb	-10 °C	50 °C	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics FFB1224EH-R00	14 VDC	26.4 VDC	0.63 A	70000 Hrs	Plastic	Plastic	120 mm	120 mm	56.4 dB(A)	3 Wire Leads	Ball	15.12 W	Tubeaxial	4000 RPM	24 VDC	4.21 m³/min	150.3 CFM	25.4 mm	121.9 Pa	0.489 in H2O	205.02 g	0.452 lb	-10 °C	60 °C	CE CSA UL VDE	Locked Rotor Sensor
Delta Electronics FFB1224VHE-R00	14 VDC	26.4 VDC	0.56 A	70000 Hrs	Plastic	Plastic	120 mm	120 mm	53 dB	3 Wire Leads	Ball	13.44 W	Tubeaxial	3200 RPM	24 VDC	4.25 m³/min	151.9 CFM	38 mm	110.8 Pa	0.445 in H2O	370.13 g	0.816 lb	-10 °C	60 °C	CE CSA UL VDE	Locked Rotor Sensor
Delta Electronics FFB1224SHE-R00	14 VDC	26.4 VDC	800 mA	70000 Hrs	Plastic	Plastic	120 mm	120 mm	56.5 dB	3 Wire Leads	Ball	19.2 W	Tubeaxial	3600 RPM	24 VDC	4.79 m³/min	170.9 CFM	38 mm	140.2 Pa	0.563 in H2O	370.13 g	0.816 lb	-10 °C	60 °C	CE CSA UL VDE	Locked Rotor Sensor

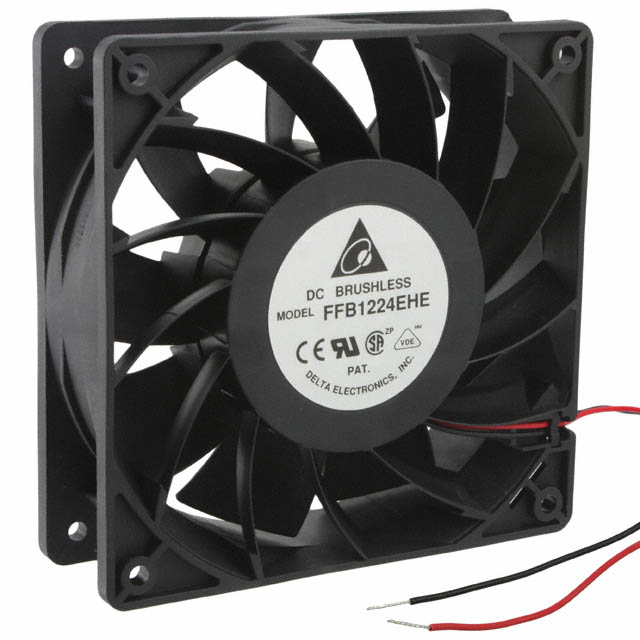

Delta Electronics FFB1224EHE	14 VDC	26.4 VDC	1 A	70000 Hrs	Plastic	Plastic	120 mm	120 mm	59 dB(A)	2 Wire Leads	Ball	24 W	Tubeaxial	4000 RPM	24 VDC	5.32 m³/min	190 CFM	38 mm	174.4 Pa	0.7 in H2O	370.13 g	0.816 lb	-10 °C	50 °C	CE CSA UL VDE

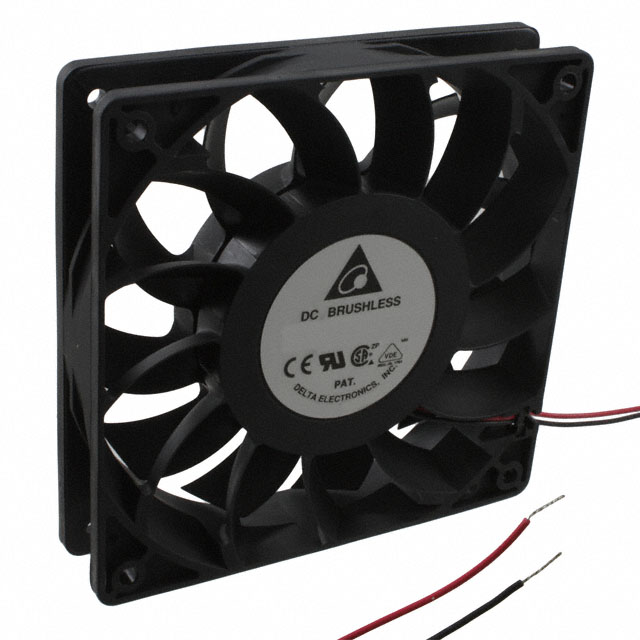

Delta Electronics FFB1224EH-TZUK	14 VDC	26.4 VDC	0.63 A	70000 Hrs	Plastic	Plastic	120 mm	120 mm	56.4 dB(A)	2 Wire Leads	Ball	15.12 W	Tubeaxial	4000 RPM	24 VDC	4.21 m³/min	150.3 CFM	25.4 mm	121.9 Pa	0.489 in H2O	205.02 g	0.452 lb	-10 °C	60 °C	CE CSA UL VDE		IP55 - Dust Protected Water Resistant

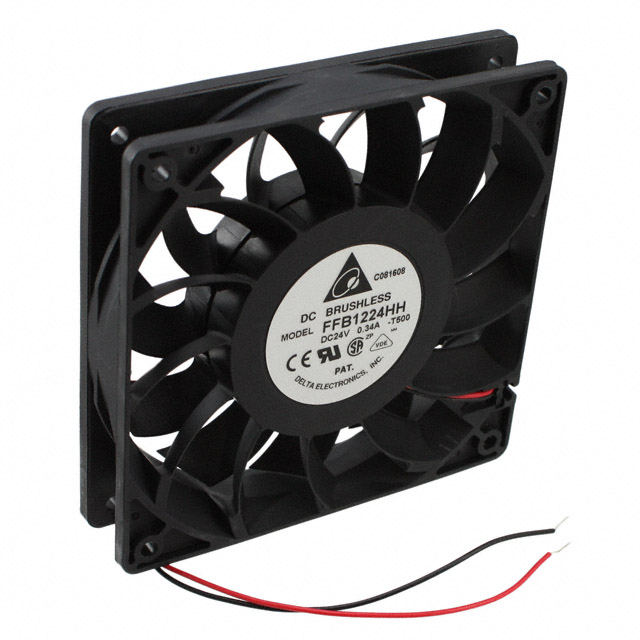

Delta Electronics FFB1224HH-T500	14 VDC	26.4 VDC	0.28 A	70000 Hrs	Plastic	Plastic	120 mm	120 mm	49.7 dB(A)	2 Wire Leads	Ball	6.72 W	Tubeaxial	3100 RPM	24 VDC	3.21 m³/min	114.7 CFM	25.4 mm	71.7 Pa	0.288 in H2O	205.02 g	0.452 lb	-10 °C	60 °C	CE CSA UL VDE		IP55 - Dust Protected Water Resistant

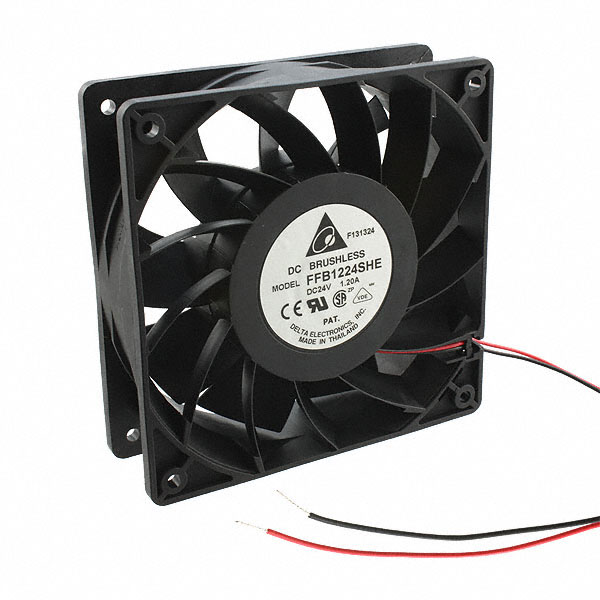

Delta Electronics FFB1224SHE	14 VDC	26.4 VDC	800 mA	70000 Hrs	Plastic	Plastic	120 mm	120 mm	56.5 dB	2 Wire Leads	Ball	19.2 W	Tubeaxial	3600 RPM	24 VDC	4.79 m³/min	170.9 CFM	38 mm	140.2 Pa	0.563 in H2O	370.13 g	0.816 lb	-10 °C	60 °C	CE CSA UL VDE
