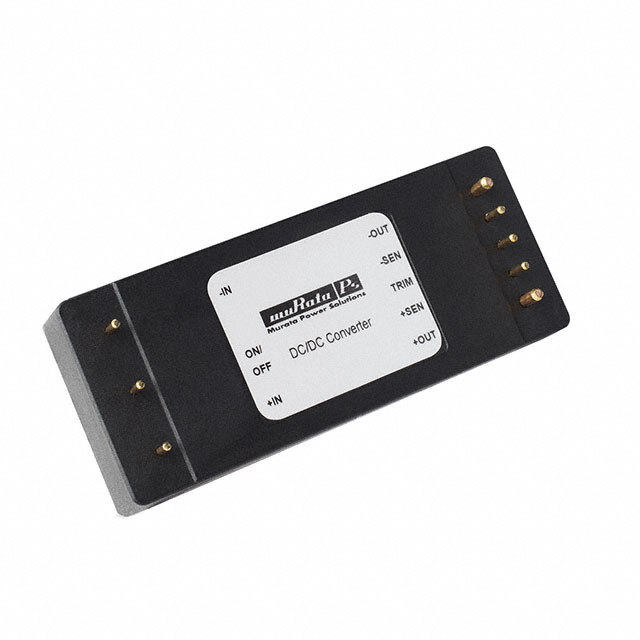

IRE-Q12 Series

Isolated DC/DC Converters - Through Hole 9V-36VIN 24VOUT 120W

Manufacturer: Murata Power Solutions Inc.

Catalog

Isolated DC/DC Converters - Through Hole 9V-36VIN 24VOUT 120W

Catalog

Isolated DC/DC Converters - Through Hole 9V-36VIN 24VOUT 120W

Part	Mounting Type	Power (Watts)	Number of Outputs	Applications	Control Features	Efficiency	Voltage - Input (Max) [Max]	Features	Current - Output (Max) [Max]	Voltage - Output 1	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Input (Min) [Min]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
Murata Power Solutions Inc. IRE-24/5-Q12NF-C	Through Hole	120 W	1	ITE (Commercial)	Active Low Enable	92 %	36 V	Adjustable Output Remote On/Off Remote Sense	5 A	24 V	Eighth Brick	-40 °C	115 °C	Isolated Module	9 V	Eighth Brick	36.8 mm	1.45 "	12.7 mm	61.2 mm	12.7 mm	2.41 "
Murata Power Solutions Inc. IRE-24/5-Q12P-C	Through Hole	120 W	1	ITE (Commercial)	Active High Enable	92 %	36 V	Adjustable Output Remote On/Off Remote Sense	5 A	24 V	Eighth Brick	-40 °C	115 °C	Isolated Module	9 V	Eighth Brick		25.7 mm	12.7 mm			61.2 mm	1.01 in	2.41 in	0.5 in
Murata Power Solutions Inc. IRE-12/10-Q12PF-C	Through Hole	120 W	1	ITE (Commercial)	Active High Enable	92 %	36 V	Adjustable Output Remote On/Off Remote Sense	10 A	12 V	Eighth Brick	-40 °C	115 °C	Isolated Module	9 V	Eighth Brick	36.8 mm	1.45 "	12.7 mm	61.2 mm	12.7 mm	2.41 "
Murata Power Solutions Inc. IRE-12/10-Q12P-C	Through Hole	120 W	1	ITE (Commercial)	Active High Enable	92 %	36 V	Adjustable Output Remote On/Off Remote Sense	10 A	12 V	Eighth Brick	-40 °C	115 °C	Isolated Module	9 V	Eighth Brick		25.7 mm	12.7 mm			61.2 mm	1.01 in	2.41 in	0.5 in
Murata Power Solutions Inc. IRE-12/10-Q12NF-C	Through Hole	120 W	1	ITE (Commercial)	Active Low Enable	92 %	36 V	Adjustable Output Remote On/Off Remote Sense	10 A	12 V	Eighth Brick	-40 °C	115 °C	Isolated Module	9 V	Eighth Brick	36.8 mm	1.45 "	12.7 mm	61.2 mm	12.7 mm	2.41 "
