TR9CR4200 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

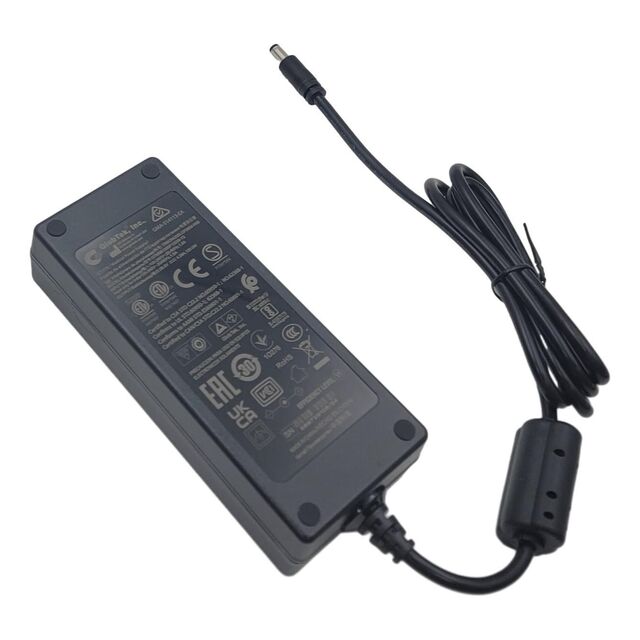

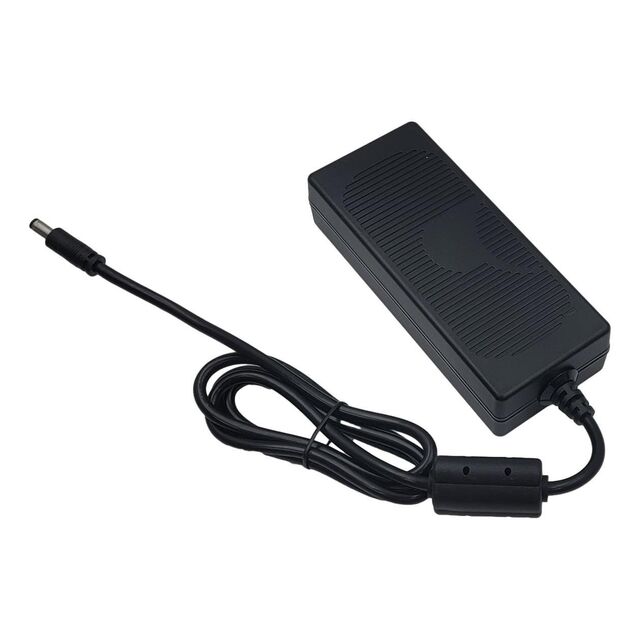

AC/DC DESKTOP ADAPTER 28V 120W
| Part | Input Connector | Current - Output (Max) [Max] | Voltage - Input [Max] | Voltage - Input [Min] | Output Connector [diameter] | Output Connector | Output Connector [x] | Power (Watts) | Applications | Form | Approval Agency | Region Utilized | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Input Type | Cord Length | Cord Length | Polarization | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | No Load Power Consumption | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | IEC 320-C14 | 4.28 A | 264 VAC | 90 VAC | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | 120 W | Household Appliances ITE (Commercial) Medical | Desktop (Class I) | BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UkrSEPRO VCCI | International | CoC Tier 2 Level VI | 40 °C | -10 °C | Cord (Sold Separately) | 1.2 m | 47.2 in | Positive Center | 34 mm | 1.34 " | 5.88 " | 149.3 mm | 2.47 " | 62.8 mm | 150 mW | 28 V |
