XDMYK46 Series
Manufacturer: SunLED
Beta
⌘K

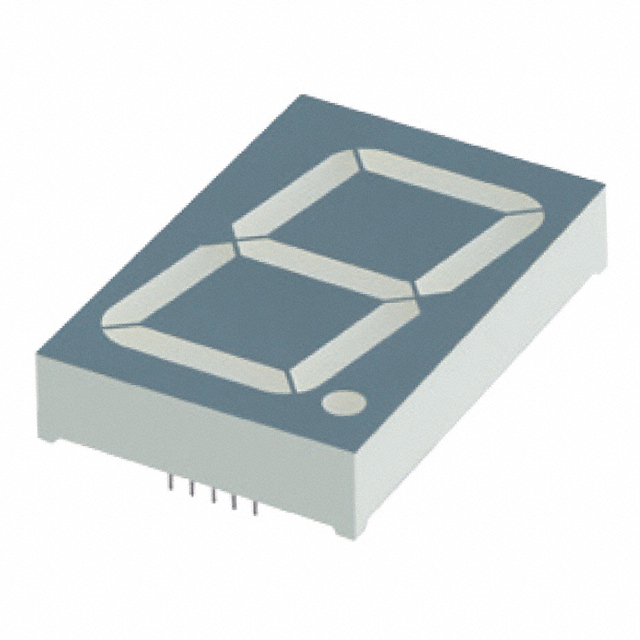

DISPLAY 7SEG 1.75" SGL YLW 10DIP
| Part | Current - Test | Millicandela Rating | Common Pin | Color | Number of Characters | Wavelength - Peak | Power Dissipation (Max) [Max] | Digit/Alpha Size | Digit/Alpha Size | Package / Case | Package / Case | Package / Case | Display Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 10 mA | 190 mcd | Common Anode | Yellow | 1 | 590 nm | 75 mw | 44.5 mm | 1.75 in | 10-DIP | 48.26 mm | 1.9 in | 7-Segment | 56 mm | 1.496 in | 2.205 " | 38 mm | 11 mm | 0.433 in | 5.85 V |
