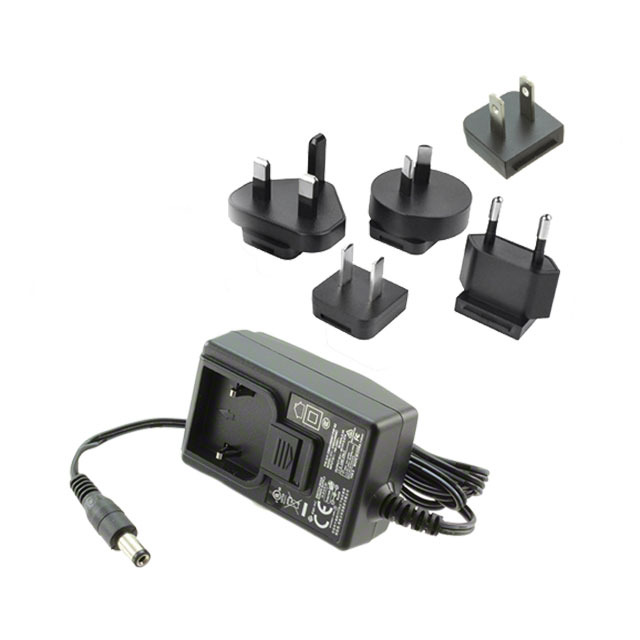

SMI6-9 Series

Manufacturer: CUI Inc.

Catalog

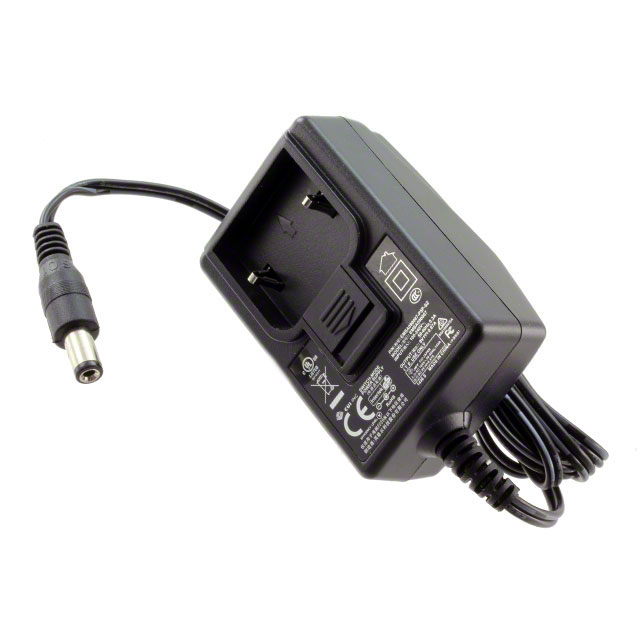

AC/DC WALL MOUNT ADAPTER 9V 6W

Part	Cord Length	Cord Length	Approval Agency	Polarization	Operating Temperature [Max]	Input Connector	Voltage - Output	Form	Weight [custom]	Weight [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Input Type	Applications	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Power (Watts)	Standard Number	Output Connector [diameter]	Output Connector	Output Connector [x]	Region Utilized	No Load Power Consumption	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Output Connector [z]
CUI Inc. SMI6-9-V-P7	60.2 in	1.53 m	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL	Positive Center	40 °C	Multi-Blade	9 V	Wall Mount	69.4 g	0.153 lb	1.59 "	40.5 mm	30 mm	2.52 "	1.18 in	64 mm	Multi-Blade (Included)	ITE (Commercial)	CoC Tier 2 Level VI	264 VAC	90 VAC	670 mA	6 W	C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3; 62368-1	1.35 mm 3.5 mm	Barrel Plug	9.5 mm	International	100 mW
CUI Inc. SMI6-9-V-P5R	60.2 in	1.53 m	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL	Positive Center	40 °C	Multi-Blade	9 V	Wall Mount	69.4 g	0.153 lb	1.59 "	40.5 mm	30 mm	2.52 "	1.18 in	64 mm	Multi-Blade (Included)	ITE (Commercial)	CoC Tier 2 Level VI	264 VAC	90 VAC	670 mA	6 W	C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3; 62368-1		Barrel Plug R/A		International	100 mW	9.5 mm	5.5 mm	2.1 mm
CUI Inc. SMI6-9-K-ST	60.2 in	1.53 m	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL	Positive Center	40 °C	Multi-Blade	9 V	Wall Mount	69.4 g	0.153 lb	1.59 "	40.5 mm	30 mm	2.52 "	1.18 in	64 mm	Multi-Blade (Sold Separately)	ITE (Commercial)	CoC Tier 2 Level VI	264 VAC	90 VAC	670 mA	6 W	C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3; 62368-1		Stripped Tinned Wire Leads		International	100 mW
CUI Inc. SMI6-9-K-P6R	60.2 in	1.53 m	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL	Positive Center	40 °C	Multi-Blade	9 V	Wall Mount	69.4 g	0.153 lb	1.59 "	40.5 mm	30 mm	2.52 "	1.18 in	64 mm	Multi-Blade (Sold Separately)	ITE (Commercial)	CoC Tier 2 Level VI	264 VAC	90 VAC	670 mA	6 W	C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3; 62368-1	2.5 mm 5.5 mm	Barrel Plug R/A		International	100 mW				9.5 mm
CUI Inc. SMI6-9-V-P5	60.2 in	1.53 m	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL	Positive Center	40 °C	Multi-Blade	9 V	Wall Mount	69.4 g	0.153 lb	1.59 "	40.5 mm	30 mm	2.52 "	1.18 in	64 mm	Multi-Blade (Included)	ITE (Commercial)	CoC Tier 2 Level VI	264 VAC	90 VAC	670 mA	6 W	C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3; 62368-1	2.1 mm 5.5 mm	Barrel Plug	9.5 mm	International	100 mW
