R14209 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

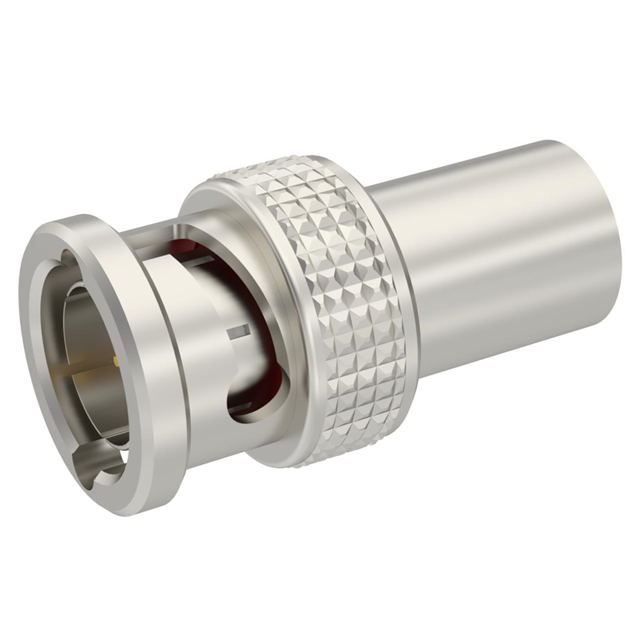

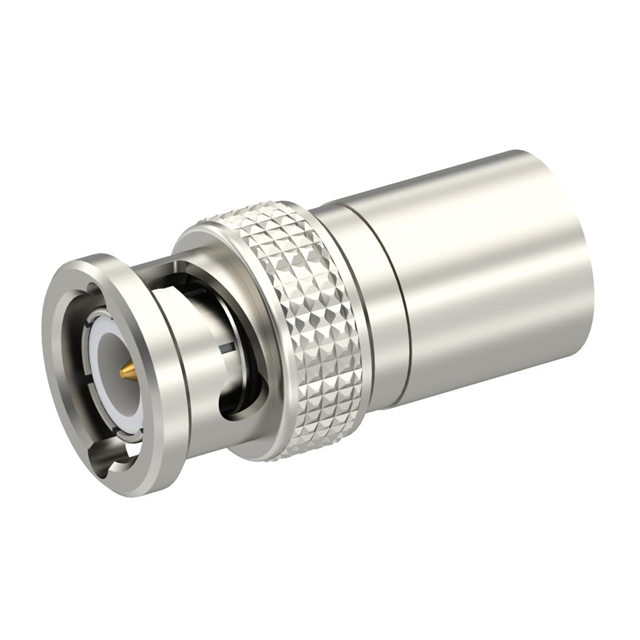

BNC / STRAIGHT PLUG CRIMP TYPE C
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Center Contact Plating | Body Material | Body Finish | Mating Cycles | Shield Termination | Impedance | Connector Style | Number of Ports | Mounting Type | Fastening Type | Connector Type | Housing Color | Contact Termination | Center Contact Material | Frequency - Max [Max] | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 V | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Nickel | 500 | Crimp | 75 Ohms | BNC | 1 | Free Hanging (In-Line) | Bayonet Lock | Plug Male Pin | Silver | Crimp | Brass | 1 GHz | |
 Radiall USA, Inc. | 500 V | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Nickel | 500 | Crimp | 75 Ohms | BNC | 1 | Free Hanging (In-Line) | Bayonet Lock | Plug Male Pin | Silver | Crimp | Brass | 1.5 GHz | 12 144 RG-11 |
 Radiall USA, Inc. | 500 V | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Nickel | 500 | Crimp | 75 Ohms | BNC | 1 | Free Hanging (In-Line) | Bayonet Lock | Plug Male Pin | Silver | Crimp | Brass | 1.5 GHz | 12 144 RG-11 |
