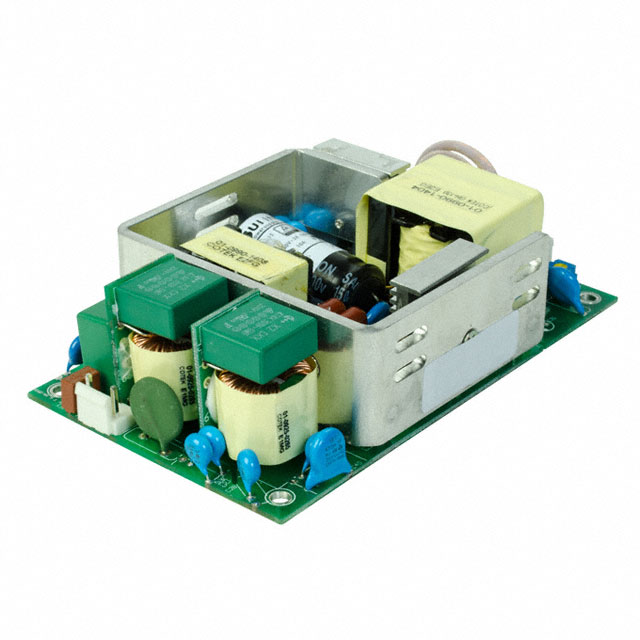

VOF-150 Series

Manufacturer: CUI Inc.

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 36V 4.2A 150W 12-PIN

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Type	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Applications	Approval Agency	Current - Output 1	Voltage - Isolation	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Standard Number	Voltage - Output 1 [custom]	Mounting Type	Voltage - Output 1
CUI Inc. VOF-150-36	60 °C	-20 °C	1	Open Frame	277 VAC	90 VAC	150 W	ITE (Commercial)	EN FCC SIQ TUV UL	4.2 A	3000 V	Adjustable Output PFC Universal Input	5 "	1.32 in	127 mm	33.1 mm	3 "	76.2 mm	89 %	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	36 V	Chassis Mount
CUI Inc. VOF-150-48	60 °C	-20 °C	1	Open Frame	277 VAC	90 VAC	150 W	ITE (Commercial)	EN FCC SIQ TUV UL	3.2 A	3000 V	Adjustable Output PFC Universal Input	5 "	1.32 in	127 mm	33.1 mm	3 "	76.2 mm	90 %	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3		Chassis Mount	48 V
CUI Inc. VOF-150-12	60 °C	-20 °C	1	Open Frame	277 VAC	90 VAC	150 W	ITE (Commercial)	EN FCC SIQ TUV UL	12.5 A	3000 V	Adjustable Output PFC Universal Input	5 "	1.26 "	127 mm	32 mm	3 "	76.2 mm	87 %	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3		Chassis Mount	12 V
CUI Inc. VOF-150-5	60 °C	-20 °C	1	Open Frame	277 VAC	90 VAC	90 W	ITE (Commercial)	EN FCC SIQ TUV UL	18 A	3000 V	Adjustable Output PFC Universal Input	5 "	1.32 in	127 mm	33.1 mm	3 "	76.2 mm	83 %	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3		Chassis Mount	5 V
CUI Inc. VOF-150-24	60 °C	-20 °C	1	Open Frame	277 VAC	90 VAC	150 W	ITE (Commercial)	EN FCC SIQ TUV UL	6.3 A	3000 V	Adjustable Output PFC Universal Input	5 "	1.26 "	127 mm	32 mm	3 "	76.2 mm	88 %	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3		Chassis Mount	24 V
