27MMP Series

Catalog

PCB SUPPORT, LOCKING, .098/.098

Part	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Holding Type	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Material	Between Board Height	Between Board Height	Between Board Height	Between Board Height [z]	Between Board Height [z]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Length - Overall	Length - Overall

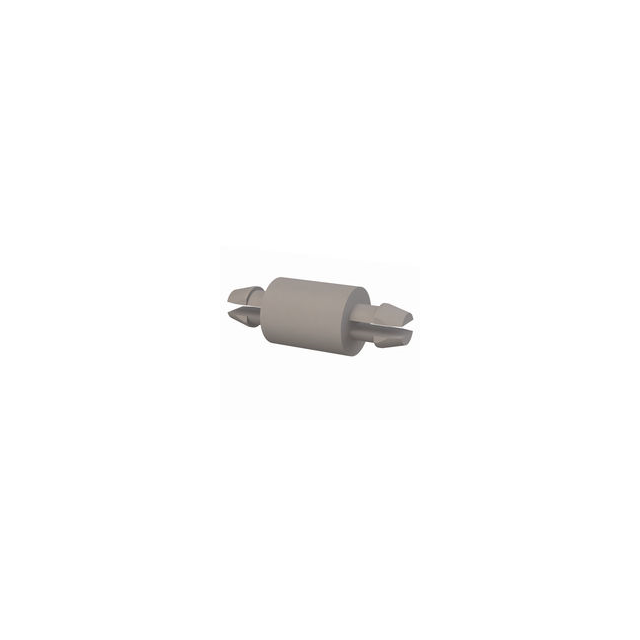

Essentra Components 27MMP006	0.062 "	0.0625 "	1.57 mm	2.5 mm	0.098 in	Snap Lock	13.12 mm	0.517 in	Snap Lock	1.57 mm	0.062 in	0.0625 in	Nylon	6 mm	0.236 in
Essentra Components 27MMP005	0.062 "	0.0625 "	1.57 mm	2.5 mm	0.098 in	Snap Lock	12.12 mm	0.477 in	Snap Lock	1.57 mm	0.062 in	0.0625 in	Nylon	0.197 in		5 mm

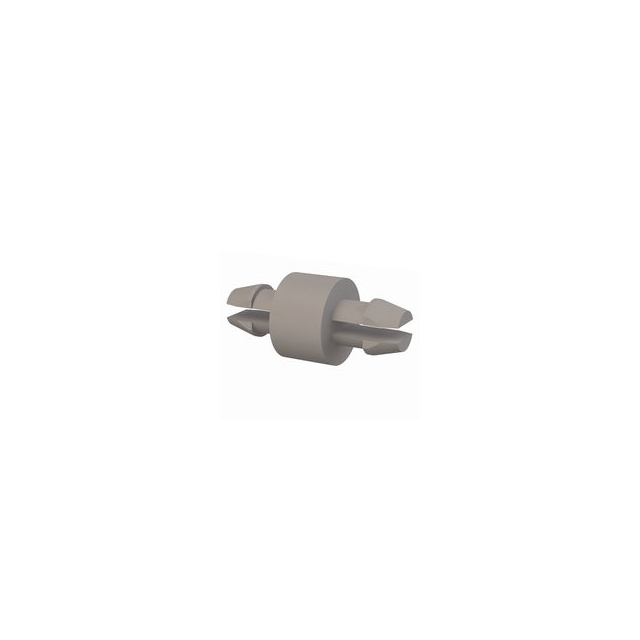

Essentra Components 27MMP003	0.062 "	0.0625 "	1.57 mm	2.5 mm	0.098 in	Snap Lock			Snap Lock	1.58 mm	0.062 in	0.0625 in	Nylon				0.118 in	3 mm	2.49 mm	0.098 "
Essentra Components 27MMP003A	0.062 "	0.0625 "	1.57 mm	2.5 mm	0.098 in	Snap Lock	10.12 mm	0.398 in	Snap Lock	1.58 mm	0.062 in	0.0625 in	Nylon	3.5 mm	0.138 in				2.49 mm	0.098 "
Essentra Components 27MMP008	0.062 "	0.0625 "	1.57 mm	2.5 mm	0.098 in	Snap Lock			Snap Lock	1.57 mm	0.062 in	0.0625 in	Nylon	8 mm	0.315 in						15.12 mm	0.595 in
Essentra Components 27MMP022	0.062 "	0.0625 "	1.57 mm	2.5 mm	0.098 in	Snap Lock			Snap Lock	1.58 mm	0.062 in	0.0625 in	Nylon	22 mm	0.866 in				2.49 mm	0.098 "
Essentra Components 27MMP010	0.062 "	0.0625 "	1.57 mm	2.5 mm	0.098 in	Snap Lock			Snap Lock	1.58 mm	0.062 in	0.0625 in	Nylon				0.394 in	10 mm	2.49 mm	0.098 "
Essentra Components 27MMP012	0.062 "	0.0625 "	1.57 mm	2.5 mm	0.098 in	Snap Lock			Snap Lock	1.57 mm	0.062 in	0.0625 in	Nylon	12 mm	0.472 in						19.12 mm	0.753 in

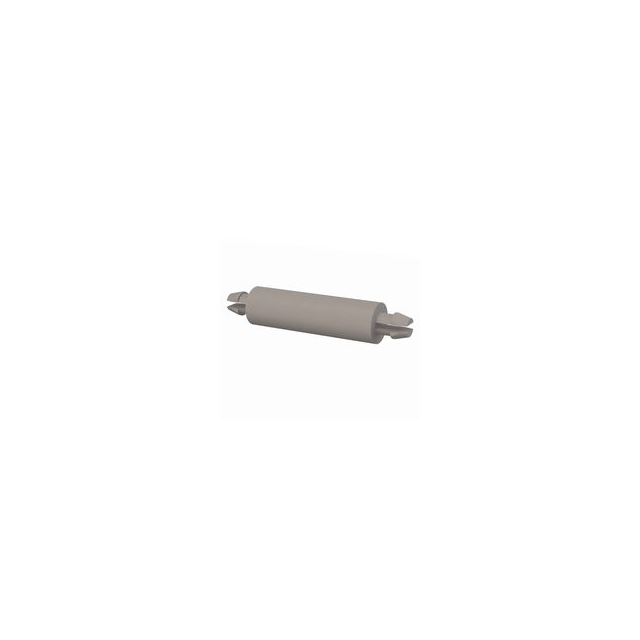

Essentra Components 27MMP016	0.062 "	0.0625 "	1.57 mm	2.5 mm	0.098 in	Snap Lock			Snap Lock	1.58 mm	0.062 in	0.0625 in	Nylon				0.63 in	16 mm	2.49 mm	0.098 "
Essentra Components 27MMP020	0.062 "	0.0625 "	1.57 mm	2.5 mm	0.098 in	Snap Lock	27.12 mm	1.068 in	Snap Lock	1.57 mm	0.062 in	0.0625 in	Nylon	20 mm	0.787 "
