R12561 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

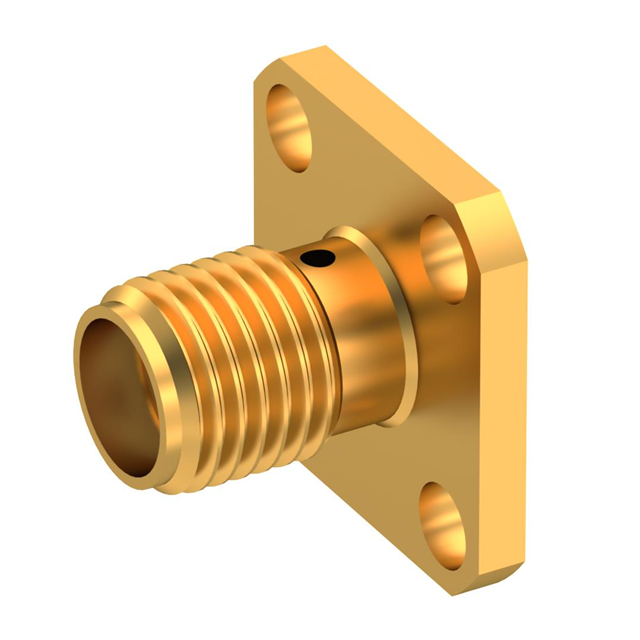

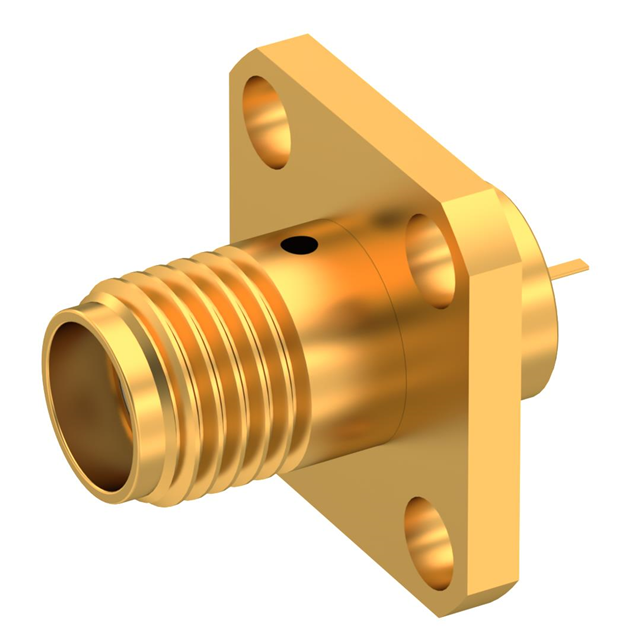

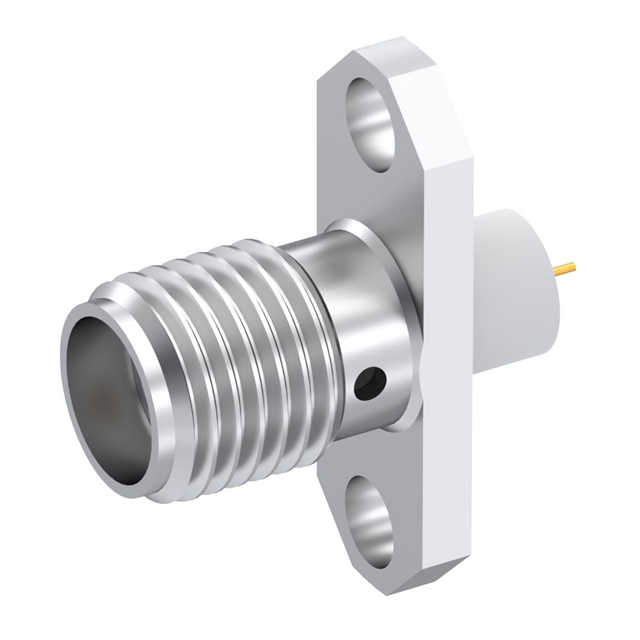

SMA / SQUARE FLANGE JACK RECEPTA
| Part | Center Contact Plating | Body Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Impedance | Center Contact Material | Contact Termination | Shield Termination | Fastening Type | Number of Ports | Mounting Feature | Connector Style | Frequency - Max [Max] | Housing Color | Features | Connector Type | Mounting Type | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Stainless Steel | 500 | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | Solder | Solder | Threaded | 1 | Flange | SMA | 18 GHz | Silver | Extended Insulation | Female Socket Jack | Panel Mount Through Hole | |
Radiall USA, Inc. | Gold | Stainless Steel | 500 | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | Solder | Solder | Threaded | 1 | Flange | SMA | 18 GHz | Silver | Extended Insulation | Female Socket Jack | Panel Mount Through Hole | |
 Radiall USA, Inc. | Gold | Stainless Steel | 500 | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | Solder | Solder | Threaded | 1 | Flange | SMA | 18 GHz | Silver | Extended Insulation | Female Socket Jack | Panel Mount Through Hole | |
 Radiall USA, Inc. | Gold | Stainless Steel | 500 | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | Solder | Solder | Threaded | 1 | Flange | SMA | 18 GHz | Silver | Extended Insulation | Female Socket Jack | Panel Mount Through Hole | |
 Radiall USA, Inc. | Gold | Stainless Steel | 500 | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | Solder Tab | Solder | Threaded | 1 | Flange | SMA | 18 GHz | Gold | Female Socket Jack | Panel Mount Through Hole | Gold | |
Radiall USA, Inc. | Gold | Stainless Steel | 500 | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | Solder Tab | Solder | Threaded | 1 | Flange | SMA | 18 GHz | Gold | Receptacle Female Socket | Panel Mount Through Hole | Gold | |
 Radiall USA, Inc. | Gold | Stainless Steel | 500 | -65 ░C | 165 °C | 500 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | Solder Tab | Solder | Threaded | 1 | Flange | SMA | 18 GHz | Gold | Receptacle Female Socket | Panel Mount Through Hole | Gold | |
Radiall USA, Inc. | Gold | Stainless Steel | 500 | -65 ░C | 105 ░C | 500 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | Solder | Solder | Threaded | 1 | Flange | SMA | 18 GHz | Silver | Female Socket Jack | Panel Mount Through Hole |
