MS3126E14 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K

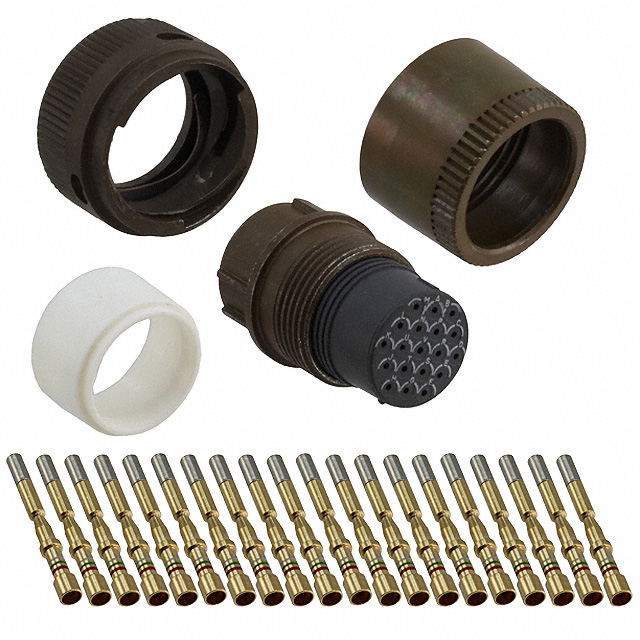

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3126 SERIES, STRAIGHT PLUG, 19 CONTACTS
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Mounting Type | Current Rating (Amps) | Features | Contact Finish - Mating | Orientation | Termination | Primary Material | Shell Finish | Fastening Type | Connector Type | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Voltage Rating | Voltage Rating | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | 50 µin | 1.27 µm | 19 | Free Hanging (In-Line) | 7.5 A | Backshell | Gold | N (Normal) | Crimp | Metal | Olive Drab Cadmium | Bayonet Lock | Plug Female Sockets | 19 | 14 | Environment Resistant | -55 C | 125 °C | Aluminum Alloy | 600 VAC | 850 VDC | Olive Drab |
