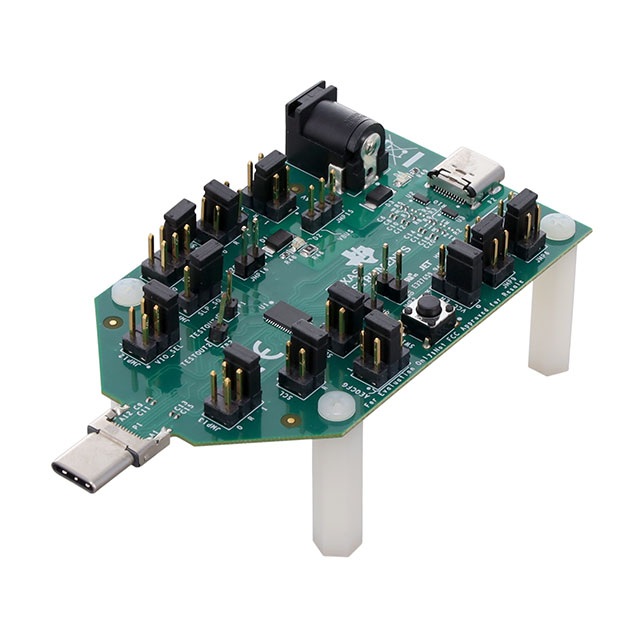

TUSB1004 Series

10 Gbps USB 3.2 4-channel adaptive linear redriver

Catalog

10 Gbps USB 3.2 4-channel adaptive linear redriver

Part	Signal Conditioning	Applications	Delay Time	Type	Number of Channels	Mounting Type	Package / Case	Output	Input	Data Rate (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]
Texas Instruments TUSB1004IRNQR	Input Equalization Output De-Emphasis	I2C USB	300 ps	Buffer ReDriver	4	Surface Mount	40-WFQFN Exposed Pad	Differential	Differential	10 Gbps	85 °C	-40 °C	40-WQFN (6x4)	3.6 V	3 V
Texas Instruments TUSB1004RNQR	Input Equalization Output De-Emphasis	I2C USB	300 ps	Buffer ReDriver	4	Surface Mount	40-WFQFN Exposed Pad	Differential	Differential	10 Gbps	70 °C	0 °C	40-WQFN (6x4)	3.6 V	3 V
Texas Instruments TUSB1004IRNQT	Input Equalization Output De-Emphasis	I2C USB	300 ps	Buffer ReDriver	4	Surface Mount	40-WFQFN Exposed Pad	Differential	Differential	10 Gbps	85 °C	-40 °C	40-WQFN (6x4)	3.6 V	3 V

Catalog

10 Gbps USB 3.2 4-channel adaptive linear redriver

Key Features

• USB 3.2 5Gbps and 10Gbps supportTwo independent USB 3.2 portsAdvanced USB power managementActive: 550mW (typical)Disconnect: 1.7mWDisabled (EN = L): 0.130mW16 EQ settings up to 12dB at 5GHzChoice between adaptive or fixed receiver equalization for ports facing USB connectorChoice between linear or limited redriver for ports facing the system (SSRX1/2 transmitters)Less than 1V VTX-CM and VRX-CMConfiguration through I2C or pin-strapSelection between 1.8V or 3.3V I2C levelsOperates from a single 3.3V supplyUSB 3.2 5Gbps and 10Gbps supportTwo independent USB 3.2 portsAdvanced USB power managementActive: 550mW (typical)Disconnect: 1.7mWDisabled (EN = L): 0.130mW16 EQ settings up to 12dB at 5GHzChoice between adaptive or fixed receiver equalization for ports facing USB connectorChoice between linear or limited redriver for ports facing the system (SSRX1/2 transmitters)Less than 1V VTX-CM and VRX-CMConfiguration through I2C or pin-strapSelection between 1.8V or 3.3V I2C levelsOperates from a single 3.3V supply

Description

The TUSB1004 is a 10Gbps USB 3.2 quad channel linear redriver for USB Type-A applications. The TUSB1004 is intended to reside between a Host and a USB receptacle or between a USB device and a USB receptacle. The TUSB1004 supports both USB 3.2 Gen2 (10Gbps) and Gen1 (5Gbps) as well as USB 3.2 low power states (Disconnect, U1, U2, and U3). The TUSB1004 incorporates an innovative, adaptive receiver equalization (AEQ) feature. The AEQ feature automatically determines what the best ISI compensation settings are between the TUSB1004 and USB device plugged into the USB connector resulting in improved interoperability. The TUSB1004 operates from a single 3.3V supply and is available in a 40-pin WQFN package. The TUSB1004 is a 10Gbps USB 3.2 quad channel linear redriver for USB Type-A applications. The TUSB1004 is intended to reside between a Host and a USB receptacle or between a USB device and a USB receptacle. The TUSB1004 supports both USB 3.2 Gen2 (10Gbps) and Gen1 (5Gbps) as well as USB 3.2 low power states (Disconnect, U1, U2, and U3). The TUSB1004 incorporates an innovative, adaptive receiver equalization (AEQ) feature. The AEQ feature automatically determines what the best ISI compensation settings are between the TUSB1004 and USB device plugged into the USB connector resulting in improved interoperability. The TUSB1004 operates from a single 3.3V supply and is available in a 40-pin WQFN package.
