A351GC Series
Manufacturer: KEMET
Beta
⌘K

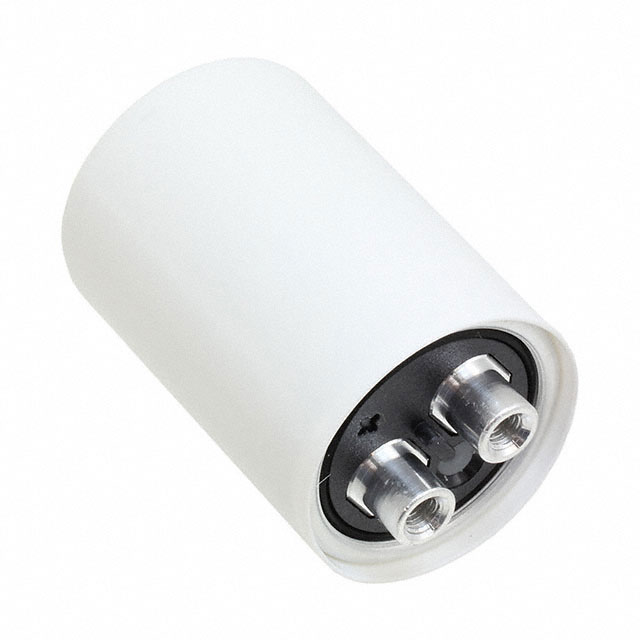

ELECTROLYTIC CAPACITOR, LONG LIFE, PEH200 SERIES, 4700 F, 20%, 63 V, 35 MM, 0.032 OHM ROHS COMPLIANT: YES
| Part | Applications | ESR (Equivalent Series Resistance) | Ripple Current @ Low Frequency | Package / Case | Capacitance | Operating Temperature [Max] | Operating Temperature [Min] | Lead Spacing | Lead Spacing | Polarization | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Voltage - Rated | Size / Dimension [diameter] | Size / Dimension [diameter] | Lifetime @ Temp. | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | General Purpose | 32 mOhm | 9 A | Radial Can - Screw Terminals | 4700 µF | 85 °C | -40 C | 0.512 " | 13 mm | Polar | Chassis Mount | 2.067 in | 52.5 mm | 63 V | 1.441 in | 36.6 mm | 10000 Hrs | 20 % |
