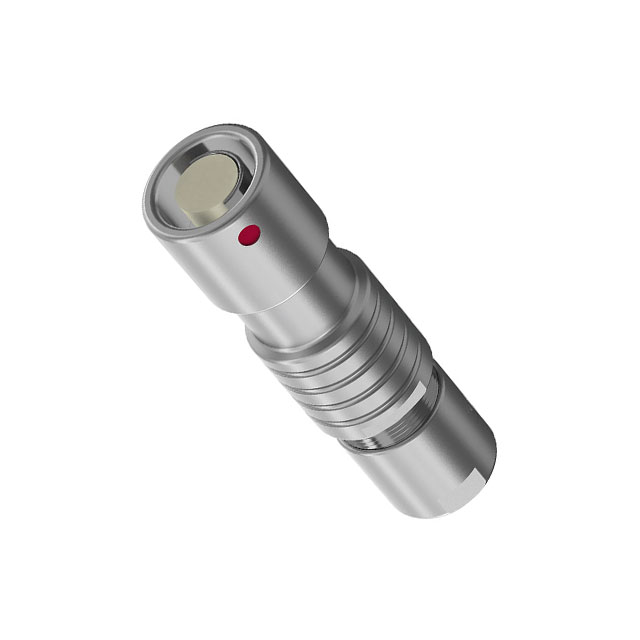

K11F1C-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 8P GOLD SLDR CUP
| Part | Contact Finish - Mating | Fastening Type | Material Flammability Rating | Features | Backshell Material, Plating | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Applications | Connector Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Orientation [custom] | Insert Material | Ingress Protection | Color | Primary Material | Mounting Type | Contact Material | Current Rating (Amps) | Number of Positions | Shell Size - Insert | Voltage Rating | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | Push-Pull | UL94 V-0 | Backshell | Brass Chrome over Nickel | Brass | 120 °C | -40 C | Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | 0.177 " | 0.157 in | 4 mm | 4.5 mm | 1 | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Silver | Metal | Free Hanging (In-Line) | Brass | 7.5 A | 8 | 1 | |||
Gold | Push-Pull | UL94 V-0 | Backshell | Brass Chrome over Nickel | Brass | 120 °C | -40 C | Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | 0.138 in | 0.118 in | 3 mm | 3.5 mm | 1 | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Silver | Metal | Free Hanging (In-Line) | Brass | 12 Amps | 2 | 1 | 550 VDC | Unshielded | |
Gold | Push-Pull | UL94 V-0 | Backshell | Brass Chrome over Nickel | Brass | 120 °C | -40 C | Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | 0.197 in | 0.177 in | 4.5 mm | 5 mm | 1 | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Silver | Metal | Free Hanging (In-Line) | Brass | 4 A | 12 | 1 | |||
Gold | Push-Pull | UL94 V-0 | Backshell | Brass Chrome over Nickel | Brass | 120 °C | -40 C | Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | 0.118 " | 0.098 in | 2.5 mm | 3 mm | 1 | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Silver | Metal | Free Hanging (In-Line) | Brass | 7.5 A | 7 | 1 | 333 V | Unshielded | |
Gold | Push-Pull | UL94 V-0 | Backshell | Brass Chrome over Nickel | Brass | 120 °C | -40 C | Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | 0.059 in | 0.039 in | 1 mm | 1.5 mm | 1 | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Silver | Metal | Free Hanging (In-Line) | Brass | 12 Amps | 2 | 1 | 550 VDC | Unshielded | |
Gold | Push-Pull | UL94 V-0 | Backshell | Brass Chrome over Nickel | Brass | 120 °C | -40 C | Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | 0.098 in 2.5 mm | 0.079 in 2 mm | 1 | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Silver | Metal | Free Hanging (In-Line) | Brass | 12 Amps | 1 | 500 V | Unshielded | ||||
Gold | Push-Pull | UL94 V-0 | Backshell | Brass Chrome over Nickel | Brass | 120 °C | -40 C | Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | 0.118 " | 0.098 in | 2.5 mm | 3 mm | 1 | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Silver | Metal | Free Hanging (In-Line) | Brass | 7.5 A | 4 | 1 | 500 V | Unshielded | |
Gold | Push-Pull | UL94 V-0 | Backshell | Brass Chrome over Nickel | Brass | 120 °C | -40 C | Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | 0.059 in | 0.039 in | 1 mm | 1.5 mm | 1 | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Silver | Metal | Free Hanging (In-Line) | Brass | 12 Amps | 1 | 500 V | Unshielded | ||
Gold | Push-Pull | UL94 V-0 | Backshell | Brass Chrome over Nickel | Brass | 120 °C | -40 C | Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | 0.059 in | 0.039 in | 1 mm | 1.5 mm | 1 | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Silver | Metal | Free Hanging (In-Line) | Brass | 4 A | 12 | 1 | 366 V | Unshielded | |
Gold | Push-Pull | UL94 V-0 | Backshell | Brass Chrome over Nickel | Brass | 120 °C | -40 C | Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | 0.157 in | 0.138 " | 3.5 mm | 4 mm | 1 | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Silver | Metal | Free Hanging (In-Line) | Brass | 7.5 A | 4 | 1 | 500 V | Unshielded |
