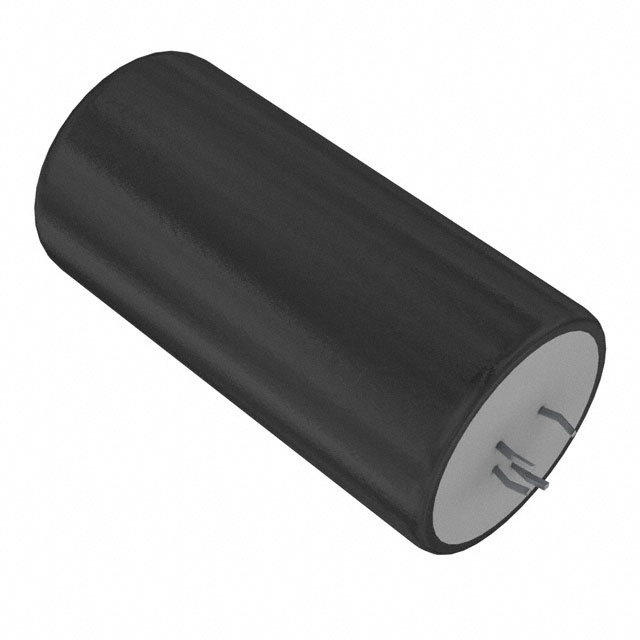

ALC10C Series

Manufacturer: KEMET

Catalog

CAP ALUM 22000UF 20% 35V SNAP TH

Part	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Ripple Current @ High Frequency	Polarization	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Package / Case	Ripple Current @ Low Frequency	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Lifetime @ Temp.	Impedance	Lead Spacing	Lead Spacing	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALC10C223ED035	Through Hole	1.575 in	40 mm	35 V	5.65 A	Polar	22000 µF	85 °C	-40 C	61 mOhm	Radial Can - Snap-In - 4 Lead	5.56 A	General Purpose	42 mm	1.654 in	20 %	18000 Hrs	55 mOhms	0.886 in	22.5 mm
KEMET ALC10C102EJ450	Through Hole	1.575 in	40 mm	450 V	8.42 A	Polar	1000 µF	85 °C	-40 C	142 mOhm	Radial Can - Snap-In - 4 Lead	4.42 A	General Purpose		2.835 in	20 %	18000 Hrs	93 mOhms	0.886 in	22.5 mm	72 mm
KEMET ALC10C333EF035	Through Hole	1.575 in	40 mm	35 V	10.03 A	Polar	33000 µF	85 °C	-40 C	42 mOhm	Radial Can - Snap-In - 4 Lead	7.16 A	General Purpose			20 %	18000 Hrs	38 mOhms	0.886 in	22.5 mm		2.047 in	52 mm
KEMET ALC10C102EL450	Through Hole	1.575 in	40 mm	450 V	9.32 A	Polar	1000 µF	85 °C	-40 C	114 mOhm	Radial Can - Snap-In - 4 Lead	4.95 A	General Purpose			20 %	18000 Hrs	75 mOhms	0.886 in	22.5 mm			3.228 in	82 mm
KEMET ALC10C331ED450	Through Hole	1.575 in	40 mm	450 V	4.91 A	Polar	330 µF	85 °C	-40 C		Radial Can - Snap-In - 4 Lead	2.47 A	General Purpose	42 mm	1.654 in	20 %	18000 Hrs	210 mOhms	0.886 in	22.5 mm
KEMET ALC10C153EB035	Through Hole	1.575 in	40 mm	35 V	4.31 A	Polar		85 °C	-40 C	87 mOhm	Radial Can - Snap-In - 4 Lead	4.24 A	General Purpose	32 mm	1.26 in	20 %	18000 Hrs	78 mOhms	0.886 in	22.5 mm
KEMET ALC10C102EP500	Through Hole	1.575 in	40 mm	500 V	9.18 A	Polar	1000 µF	85 °C	-40 C	140 mOhm	Radial Can - Snap-In - 4 Lead	5.43 A	General Purpose			20 %	18000 Hrs	98 mOhms	0.886 in	22.5 mm		4.213 in	107 mm
KEMET ALC10C471EE400	Through Hole	1.575 in	40 mm	400 V	5.49 A	Polar	470 µF	85 °C	-40 C	258 mOhm	Radial Can - Snap-In - 4 Lead	3 A	General Purpose			20 %	18000 Hrs	168 mOhms	0.886 in	22.5 mm		1.85 in	47 mm
KEMET ALC10C471EF450	Through Hole	1.575 in	40 mm	450 V	6.25 A	Polar	470 µF	85 °C	-40 C	243 mOhm	Radial Can - Snap-In - 4 Lead	3.08 A	General Purpose			20 %	18000 Hrs	147 mOhms	0.886 in	22.5 mm		2.047 in	52 mm
KEMET ALC10C103EC063	Through Hole	1.575 in	40 mm	63 V	4.67 A	Polar	10000 µF	85 °C	-40 C	80 mOhm	Radial Can - Snap-In - 4 Lead	4.58 A	General Purpose		1.457 in	20 %	18000 Hrs	72 mOhms	0.886 in	22.5 mm	37 mm
