1986484 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PLUGGABLE TERMINAL BLOCK, 5.08 MM, 8 POSITIONS, 24 AWG, 14 AWG, 2 MM², SCREW

Part	Number of Positions	Torque - Screw	Torque - Screw	Type	Termination Style	Pitch [x]	Pitch [x]	Number of Levels	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Positions Per Level	Contact Material	Insulation Height [z]	Insulation Height [z]	Wire Strip Length	Current - UL	Material Flammability Rating	Mounting Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL	Contact Mating Finish	Color	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]

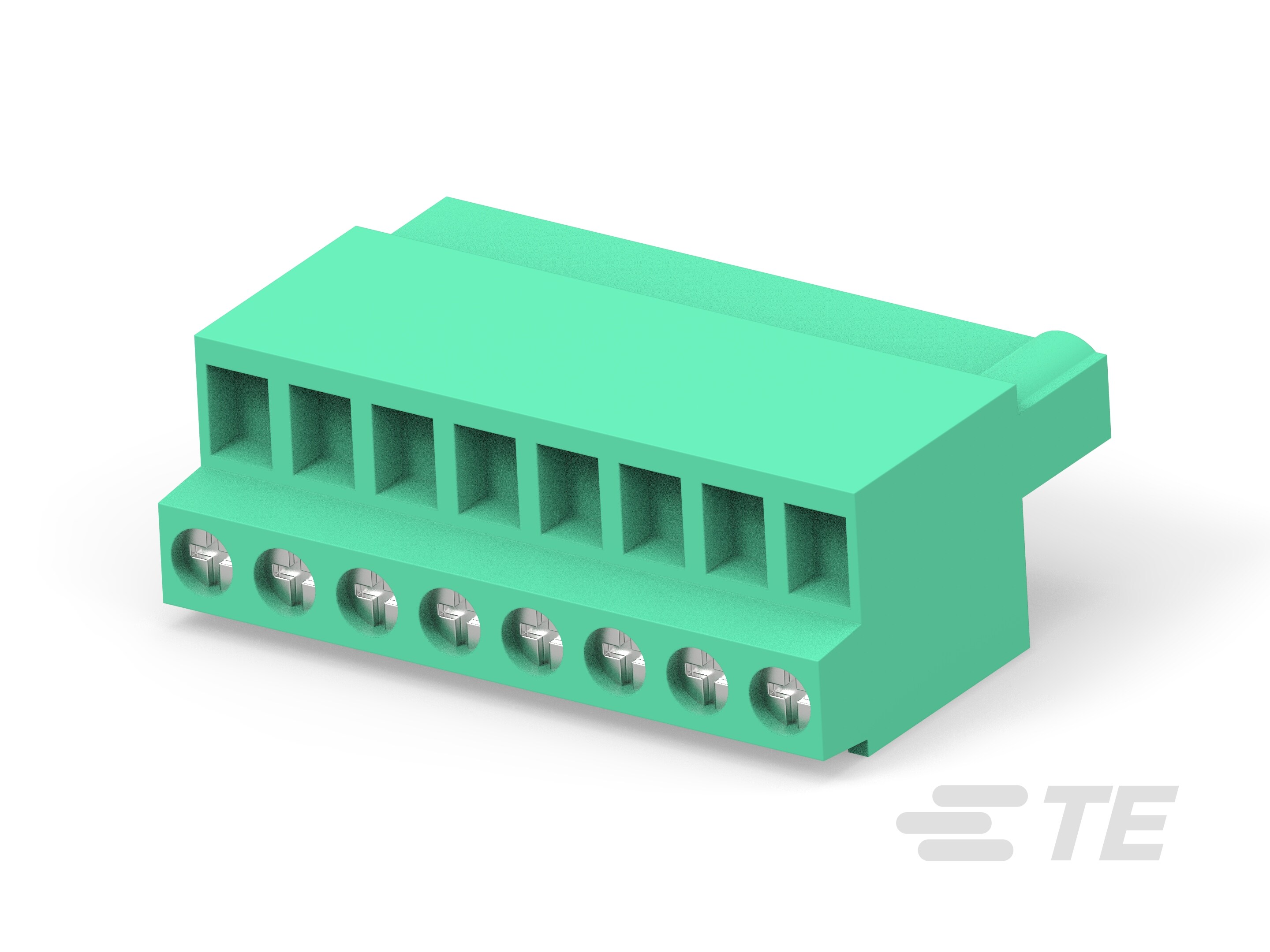

TE Connectivity Raychem Cable Protection 1986484-8	8	0.79 Nm	7 Lb-In	Plug Female Sockets	Screw - Pressure Clip	0.2 in	5.08 mm	1	0.2 mm²	2 mm²	8	Phosphor Bronze	0.587 in	14.91 mm	10 mm	16 A	UL94 V-0	Free Hanging (In-Line)	14 AWG	24 AWG	300 V	Tin	Green	-40 °C	105 ░C

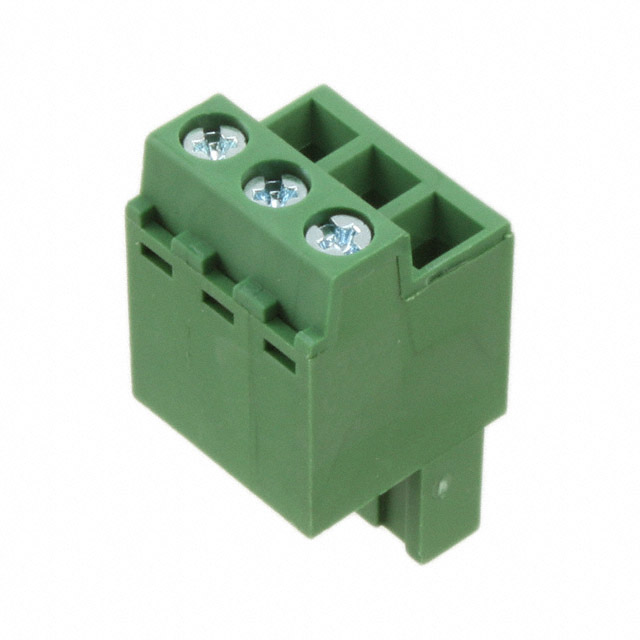

TE Connectivity Raychem Cable Protection 1986484-3		0.79 Nm	7 Lb-In	Plug Female Sockets	Screw - Pressure Clip	0.2 in	5.08 mm	1			3	Phosphor Bronze	0.587 in	14.91 mm	10 mm	16 A	UL94 V-0	Free Hanging (In-Line)	14 AWG	24 AWG	300 V	Tin	Green	-40 °C	105 ░C	2 mm˛	0.2 mm˛
TE Connectivity Raychem Cable Protection 1986484-5		0.79 Nm	7 Lb-In	Plug Female Sockets	Screw - Pressure Clip	0.2 in	5.08 mm	1	0.2 mm²	2 mm²	5	Phosphor Bronze	0.587 in	14.91 mm	10 mm	16 A	UL94 V-0	Free Hanging (In-Line)	14 AWG	24 AWG	300 V	Tin	Green	-40 °C	105 ░C

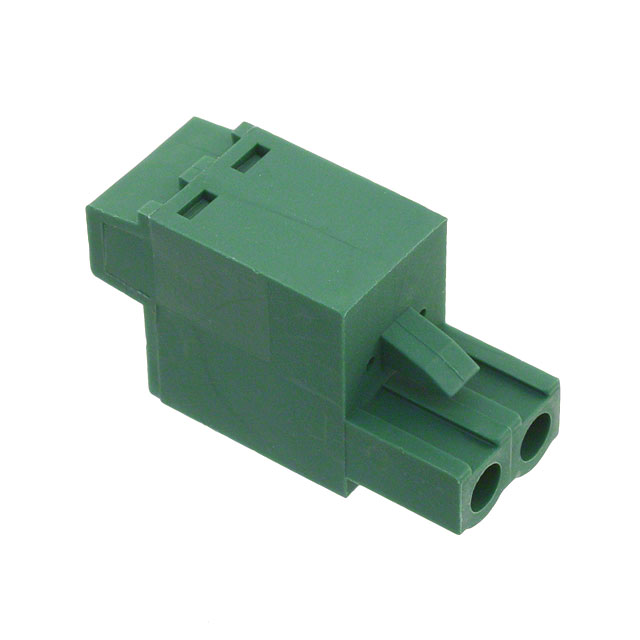

TE Connectivity Raychem Cable Protection 1986484-2	2	0.79 Nm	7 Lb-In	Plug Female Sockets	Screw - Pressure Clip	0.2 in	5.08 mm	1			2	Phosphor Bronze	0.587 in	14.91 mm	10 mm	16 A	UL94 V-0	Free Hanging (In-Line)	14 AWG	24 AWG	300 V	Tin	Green	-40 °C	105 ░C	2 mm˛	0.2 mm˛

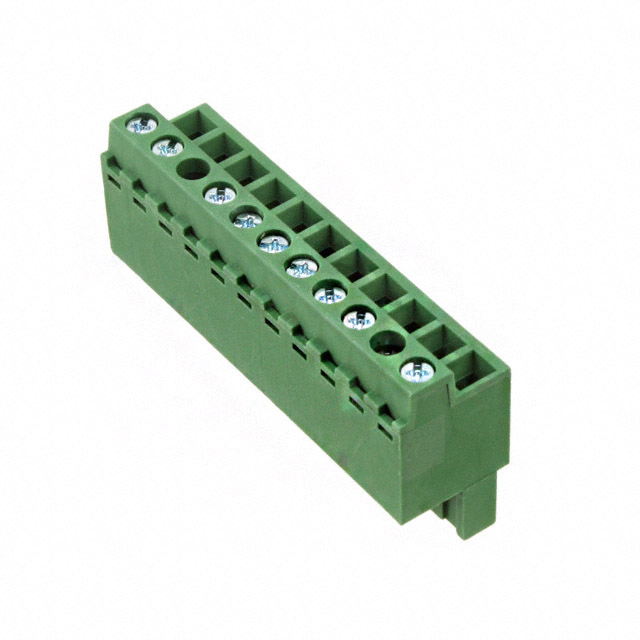

TE Connectivity Raychem Cable Protection 1-1986484-1	11	0.79 Nm	7 Lb-In	Plug Female Sockets	Screw - Pressure Clip	0.2 in	5.08 mm	1			11	Phosphor Bronze	0.587 in	14.91 mm	10 mm	16 A	UL94 V-0	Free Hanging (In-Line)	14 AWG	24 AWG	300 V	Tin	Green	-40 °C	105 ░C	2 mm˛	0.2 mm˛
