NRPN362 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

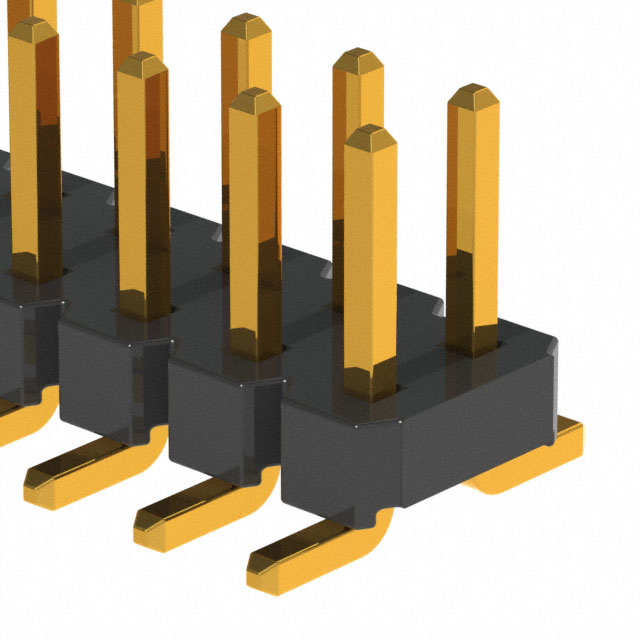

CONN HEADER SMD 72POS 2MM
| Part | Fastening Type | Contact Finish Thickness - Post | Termination | Number of Positions Loaded | Contact Shape | Contact Length - Mating | Contact Length - Mating | Contact Finish - Mating | Insulation Height | Insulation Height | Insulation Color | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Post | Pitch - Mating [x] | Pitch - Mating [x] | Number of Positions | Style | Number of Rows | Contact Type | Mounting Type | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Insulation Material | Contact Finish Thickness - Mating | Current Rating (Amps) | Contact Material | Material Flammability Rating | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Push-Pull | Flash | Solder | All | Square | 0.141 in | 3.6 mm | Gold | 1.5 mm | 0.059 " | Black | 0.079 in | 2 mm | Gold | 0.079 in | 2 mm | 72 | Board to Board Cable | 2 | Male Pin | Surface Mount | Unshrouded | -40 °C | 105 ░C | Header | Nylon 6T Polyamide (PA6T) | Flash | 2 A | Brass | UL94 V-0 | 150 VDC |
