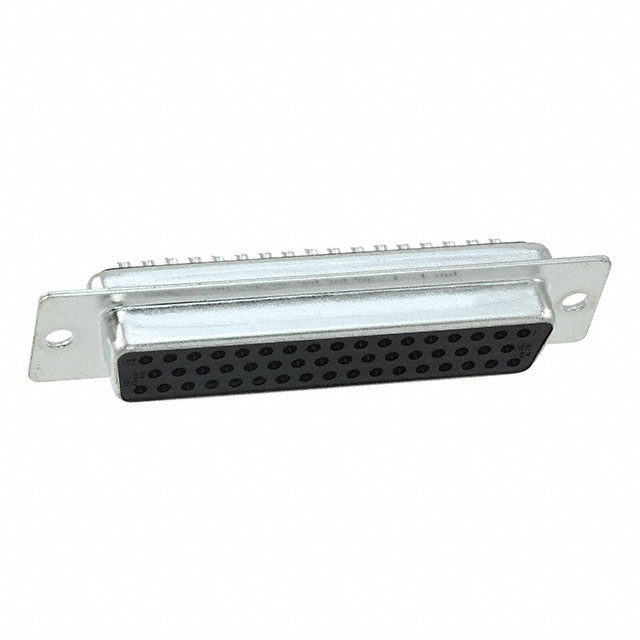

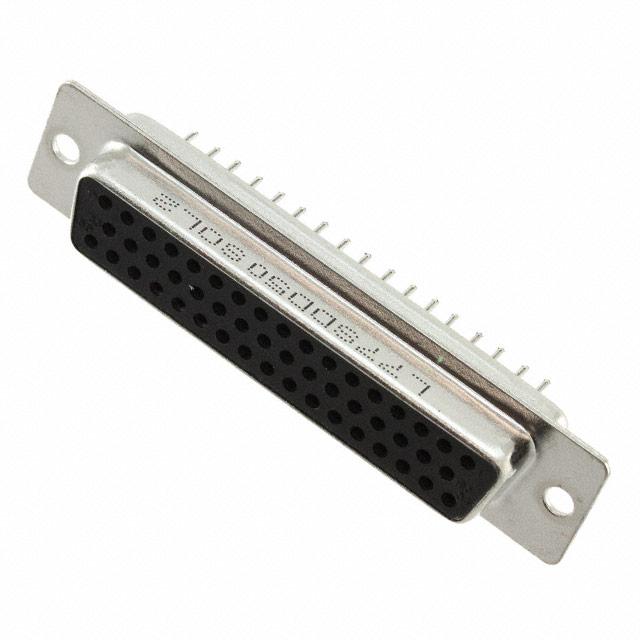

L77SDD50 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN D-SUB RCPT 50POS VERT SLDR
| Part | Dielectric Material | Color | Contact Material | Voltage Rating | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Termination | Current Rating (Amps) | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Mounting Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Connector Style | Number of Rows [custom] | Contact Type | Material Flammability Rating | Wire Gauge | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | Phosphor Bronze | 250 V | Stamped | -55 C | 125 °C | Housing/Shell (Unthreaded) | Solder | 3 A | 5 | D DD | Receptacle Female Sockets | Through Hole | 50 | 30 Áin | 0.76 Ám | Gold | D-Sub | 3 | Signal | UL94 V-0 | ||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | Phosphor Bronze | 250 V | Stamped | -55 C | 125 °C | 4-40 Mating Side Female Screwlock | 3 A | 5 | D DD | Receptacle Female Sockets | Free Hanging (In-Line) | 50 | 30 Áin | 0.76 Ám | Gold | D-Sub | 3 | Signal | UL94 V-0 | |||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | Brass | 250 V | Stamped | -55 C | 105 ░C | Housing/Shell (Unthreaded) | 3 A | 5 | D DD | Receptacle Female Sockets | Free Hanging (In-Line) | 50 | Gold | D-Sub | 3 | Signal | UL94 V-0 | 20 AWG | Flash | |||
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | Phosphor Bronze | 250 V | Stamped | -55 C | 125 °C | Mating Side Female Screwlock (M3) | 3 A | 5 | D DD | Receptacle Female Sockets | Free Hanging (In-Line) | 50 | Gold | D-Sub | 3 | Signal | UL94 V-0 | Flash | ||||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | Phosphor Bronze | 250 V | Stamped | -55 C | 125 °C | Housing/Shell (Unthreaded) | Solder | 3 A | 5 | D DD | Receptacle Female Sockets | Through Hole | 50 | Gold | D-Sub | 3 | Signal | UL94 V-0 | Flash | |||
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | Phosphor Bronze | 250 V | Stamped | -55 C | 125 °C | Housing/Shell (Unthreaded) | Solder | 3 A | 5 | D DD | Receptacle Female Sockets | Through Hole | 50 | Gold | D-Sub | 3 | Signal | UL94 V-0 | Flash |
