333-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K

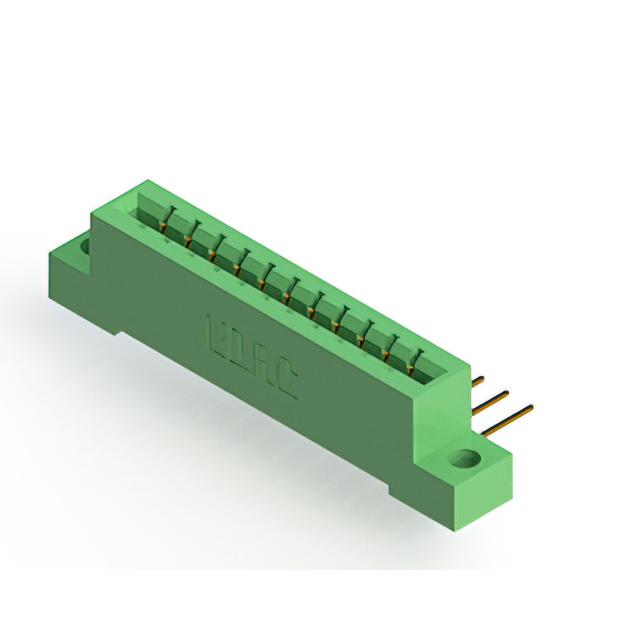

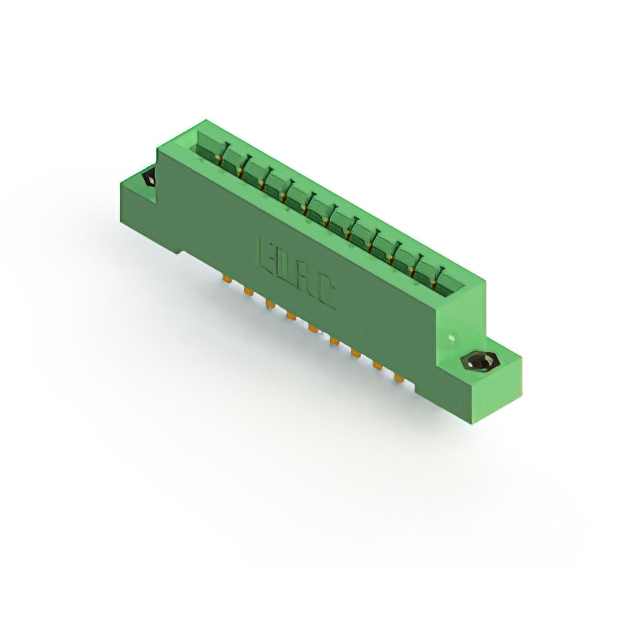

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 11 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows | Mounting Type | Gender | Pitch | Pitch | Number of Positions | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Type | Number of Positions/Bay/Row | Read Out | Card Type | Termination | Flange Feature | Card Thickness [Max] | Card Thickness [Min] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Female | 3.96 mm | 0.156 in | 11 | Gold | -40 C | 105 ░C | Green | 1 | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 11 | Single | Non Specified - Single Edge | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Female | 3.96 mm | 0.156 in | 11 | Gold | -40 C | 105 ░C | Green | 1 | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 11 | Single | Non Specified - Single Edge | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Female | 3.96 mm | 0.156 in | 11 | Gold | -40 C | 105 ░C | Green | 1 | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 11 | Single | Non Specified - Single Edge | Solder | Floating Bobbin Flush Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Female | 3.96 mm | 0.156 in | 11 | Gold | -40 C | 105 ░C | Green | 1 | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 11 | Single | Non Specified - Single Edge | Wire Wrap | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Female | 3.96 mm | 0.156 in | 11 | Gold | -40 C | 105 ░C | Green | 1 | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 11 | Single | Non Specified - Single Edge | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Right Angle Through Hole | Female | 3.96 mm | 0.156 in | 11 | Gold | -40 C | 105 ░C | Green | 1 | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 11 | Single | Non Specified - Single Edge | Wire Wrap | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.156 " | 3.96 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Female | 3.96 mm | 0.156 in | 11 | Gold | -40 C | 105 ░C | Green | 1 | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 11 | Single | Non Specified - Single Edge | Wire Wrap | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.156 " | 3.96 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Right Angle Through Hole | Female | 3.96 mm | 0.156 in | 11 | Gold | -40 C | 105 ░C | Green | 1 | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 11 | Single | Non Specified - Single Edge | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Female | 3.96 mm | 0.156 in | 11 | Gold | -40 C | 105 ░C | Green | 1 | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 11 | Single | Non Specified - Single Edge | Wire Wrap | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.156 " | 3.96 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Female | 3.96 mm | 0.156 in | 11 | Gold | -40 C | 105 ░C | Green | 1 | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 11 | Single | Non Specified - Single Edge | Wire Wrap | Flush Mount Side Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm |
