333-017 Series
Manufacturer: EDAC Inc.
Beta
⌘K

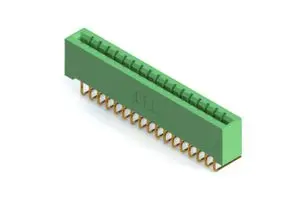

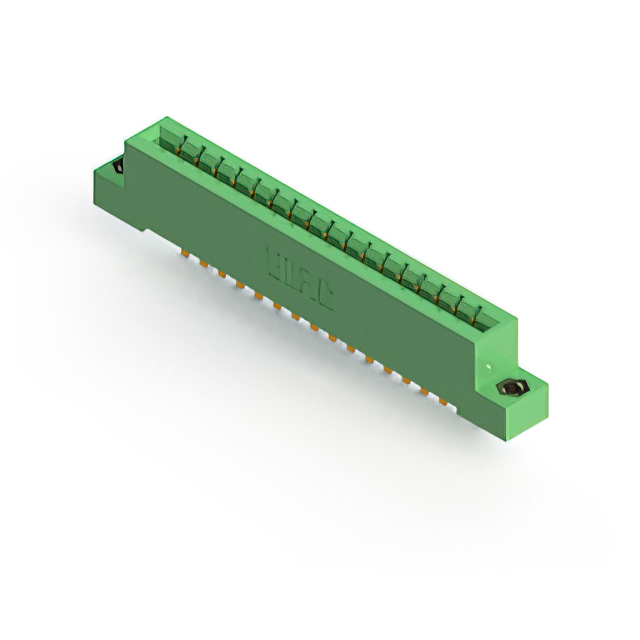

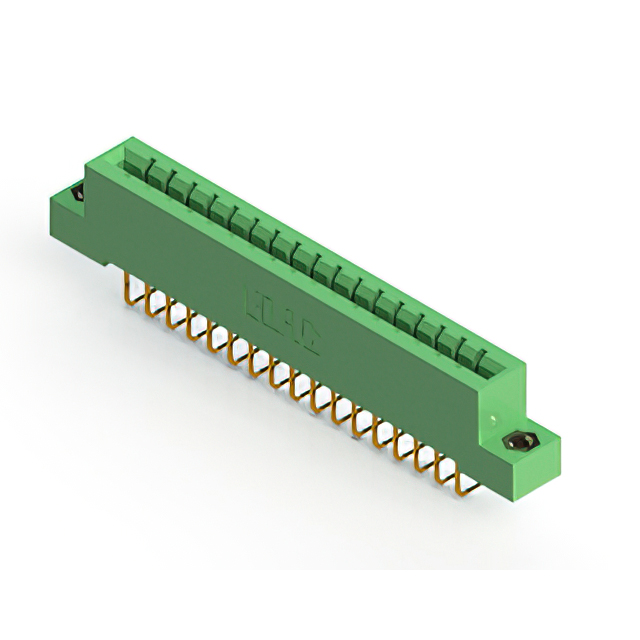

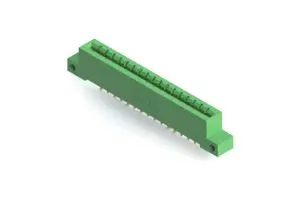

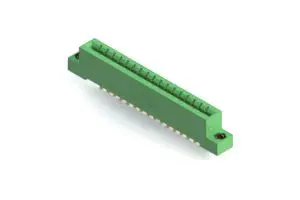

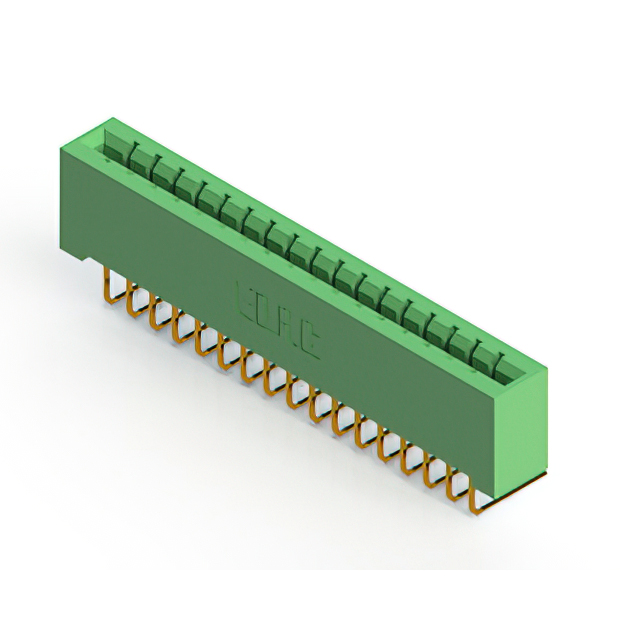

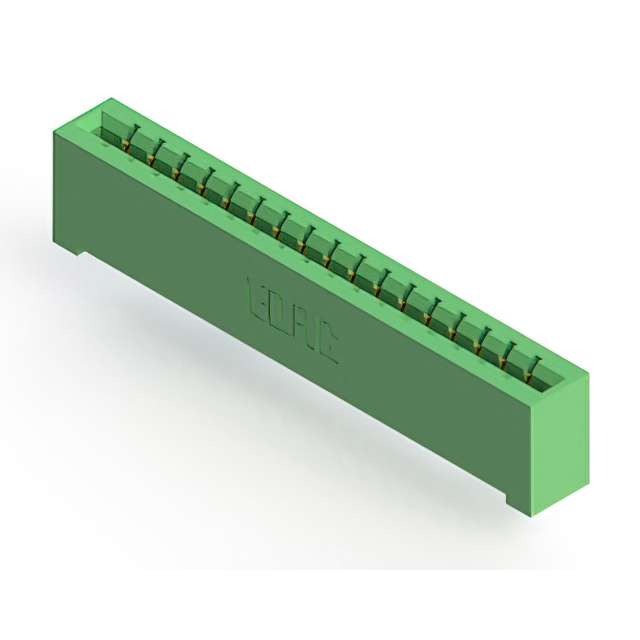

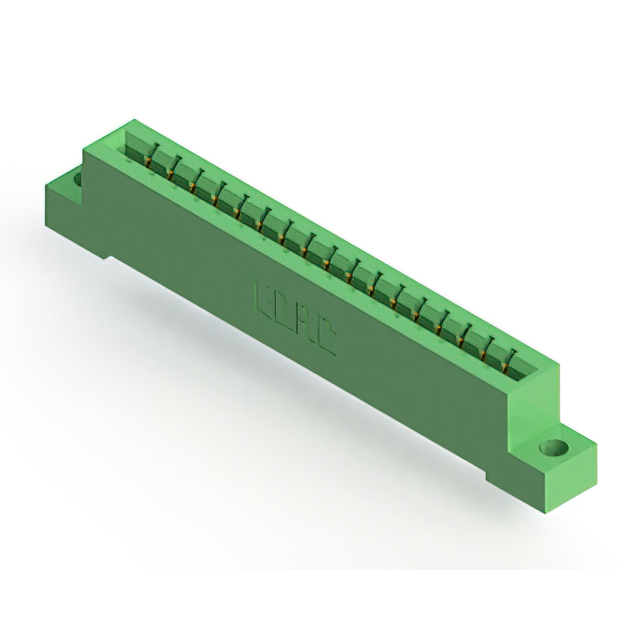

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 17 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows | Material - Insulation | Contact Material | Contact Finish | Termination | Flange Feature | Card Thickness [Max] | Card Thickness [Min] | Read Out | Mounting Type | Number of Positions/Bay/Row [custom] | Pitch | Pitch | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Card Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Color | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | Gold | Wire Wrap | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Through Hole | 17 | 3.96 mm | 0.156 in | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | -40 C | 105 ░C | Female | Green | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | Gold | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Through Hole | 17 | 3.96 mm | 0.156 in | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | -40 C | 105 ░C | Female | Green | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | Gold | Solder | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Through Hole | 17 | 3.96 mm | 0.156 in | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | -40 C | 105 ░C | Female | Green | 0.156 " | 3.96 mm |
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | Gold | Wire Wrap | Flush Mount Side Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Through Hole | 17 | 3.96 mm | 0.156 in | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | -40 C | 105 ░C | Female | Green | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | Gold | Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Right Angle Through Hole | 17 | 3.96 mm | 0.156 in | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | -40 C | 105 ░C | Female | Green | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | Gold | Solder | Floating Bobbin Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Through Hole | 17 | 3.96 mm | 0.156 in | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | -40 C | 105 ░C | Female | Green | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | Gold | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Right Angle Through Hole | 17 | 3.96 mm | 0.156 in | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | -40 C | 105 ░C | Female | Green | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Gold | Solder Eyelet(s) | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Through Hole | 17 | 3.96 mm | 0.156 in | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | -40 C | 105 ░C | Female | Green | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | Gold | Solder | Floating Bobbin Flush Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Through Hole | 17 | 3.96 mm | 0.156 in | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | -40 C | 105 ░C | Female | Green | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | Gold | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Through Hole | 17 | 3.96 mm | 0.156 in | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | -40 C | 105 ░C | Female | Green |
