G2RK-2-A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

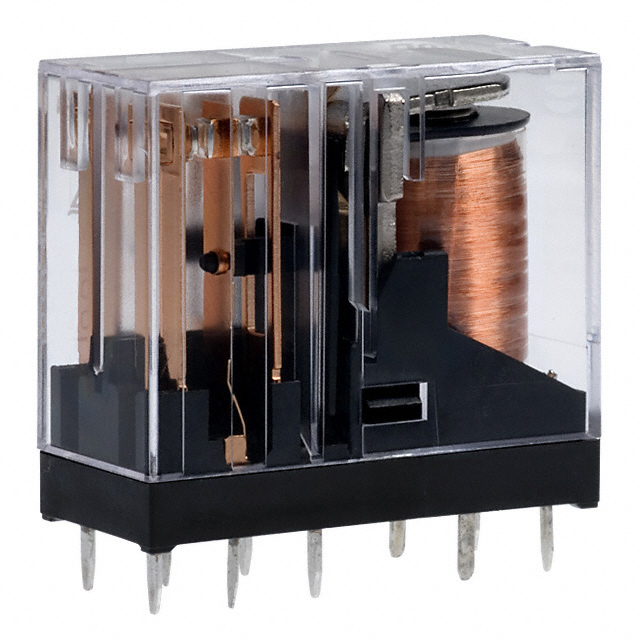

RELAY GEN PURPOSE DPDT 3A 24V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Load - Max Switching | Contact Form | Coil Voltage | Contact Material | Seal Rating | Contact Rating (Current) | Approval Agency | Termination Style | Relay Type | Release Time | Switching Voltage | Mounting Type | Operate Time | Coil Type | Coil Resistance | Coil Current | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | -40 °C | 70 °C | 375 W 1140 VA | DPDT (2 Form C) | 24 VDC | Gold (Au) Silver (Ag) | Sealed - Flux Protection | 3 A | CSA TUV UR VDE | PC Pin | General Purpose | 20 ms | 125 VDC 380 VAC | Through Hole | 20 ms | Latching Dual Coil | 694 Ohms | 34.6 mA | 16.8 VDC |
