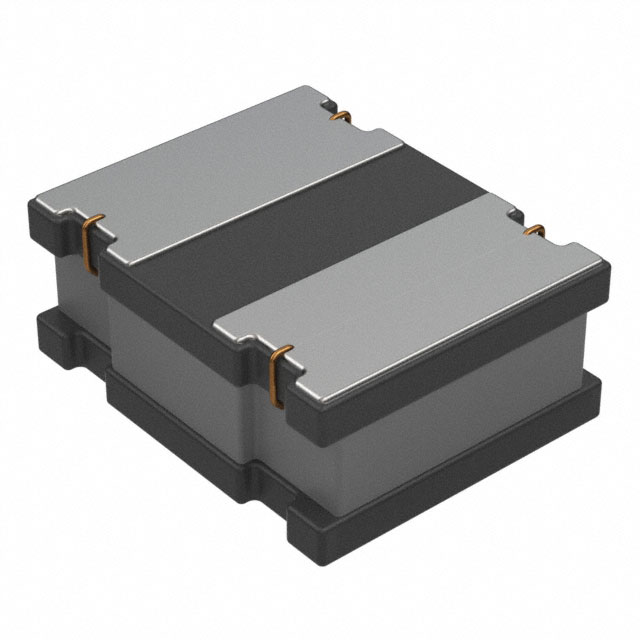

SDET25200H Series
Manufacturer: Delta Electronics/Cyntec
Beta
⌘K
FIXED IND 10UH 600MA 1.02OHM SMD
| Part | Mounting Type | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Package / Case | Shielding | Inductance | DC Resistance (DCR) [Max] | Current - Saturation (Isat) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) | Inductance Frequency - Test | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics/Cyntec | Surface Mount | 1008 | -55 C | 125 °C | 2520 Metric | 1008 | Shielded | 10 µH | 1.02 Ohm | 500 mA | 2.5 mm | 0.079 in | 0.098 in | 2 mm | 20 % | 600 mA | 0.031 in | 0.8 mm | 1 MHz | |
Delta Electronics/Cyntec | Surface Mount | 1008 | -55 C | 125 °C | 2520 Metric | 1008 | Shielded | 2.2 µH | 1.02 A | 2.5 mm | 0.079 in | 0.098 in | 2 mm | 20 % | 1.36 A | 0.031 in | 0.8 mm | 1 MHz | 199 mOhm |
