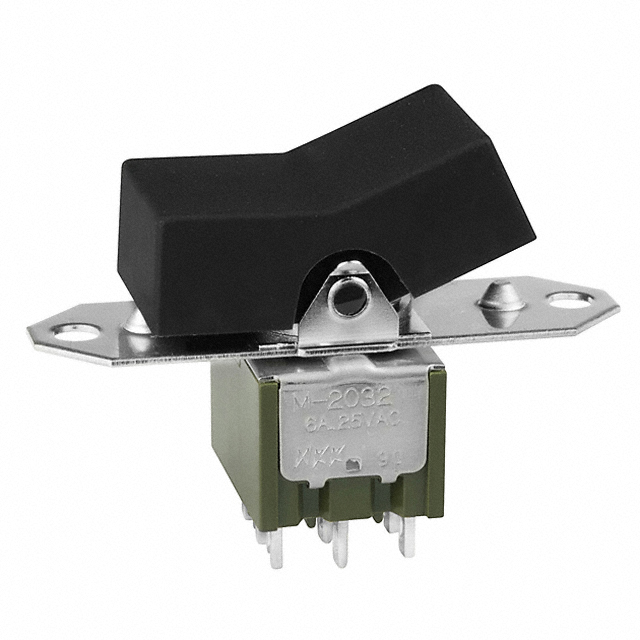

M2032TY Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER 3PDT 6A 125V
| Part | Electrical Life | Mechanical Life | Current Rating (Amps) | Switch Function | Actuator Type | Circuit | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Features | Voltage Rating - DC | Actuator Marking | Termination Style | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 50000 Cycles | 4 A 6 A | On-On | Actuator Arm Cap Required | 3PDT | 125 V | 85 °C | -30 ░C | CSA UL | Epoxy Sealed Terminals | 30 V | Varies by Cap | Solder Lug | 16 mm | 28.5 mm | Flange Panel Mount | |
 NKK Switches | 25000 Steps | 50000 Cycles | 4 A 6 A | On-On | Concave | 3PDT | 125 V | 85 °C | -30 ░C | CSA UL | Epoxy Sealed Terminals | 30 V | No Marking | Solder Lug | 16 mm | 28.5 mm | Flange Panel Mount | Black |
 NKK Switches | 25000 Steps | 50000 Cycles | 4 A 6 A | On-On | Paddle | 3PDT | 125 V | 85 °C | -30 ░C | CSA UL | Epoxy Sealed Terminals | 30 V | No Marking | Solder Lug | 16 mm | 28.5 mm | Flange Panel Mount | Black |
NKK Switches | 25000 Steps | 50000 Cycles | 4 A 6 A | On-On | Concave | 3PDT | 125 V | 85 °C | -30 ░C | CSA UL | Epoxy Sealed Terminals | 30 V | No Marking | Solder Lug | 16 mm | 28.5 mm | Flange Panel Mount | White |
