MWSELF Series

Catalog

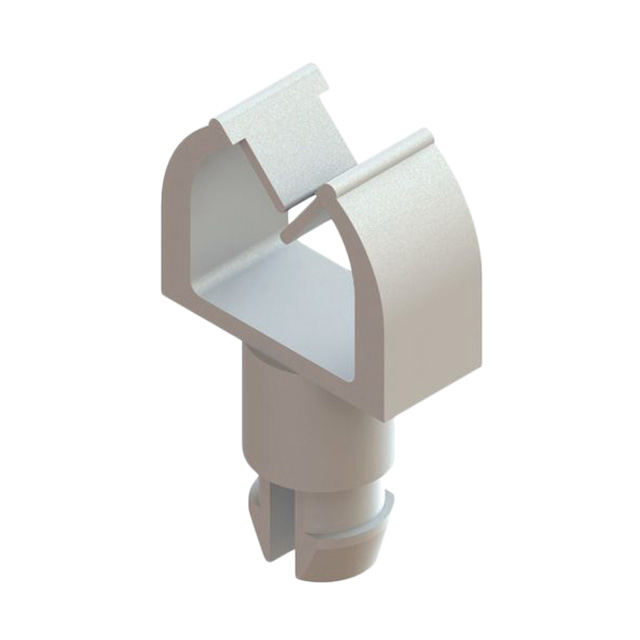

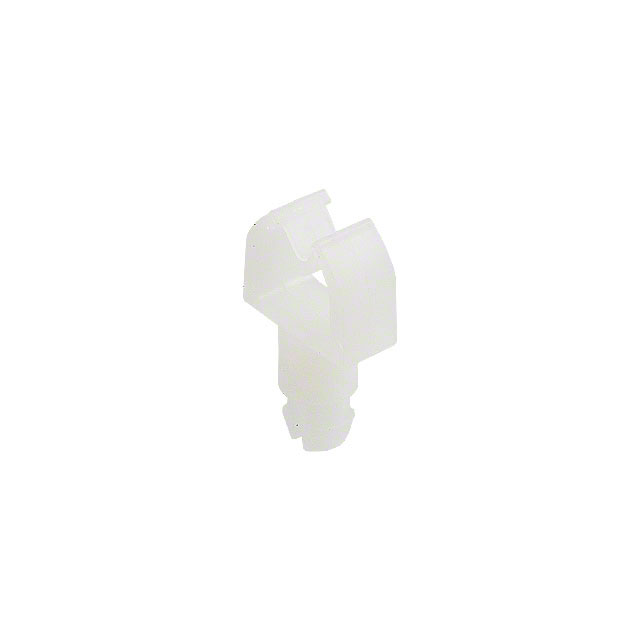

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 9.1 MM, 4 MM

Part	Panel Thickness	Panel Thickness	Material Flammability Rating	Mounting Type	Length [x]	Length [x]	Width [y]	Width [y]	Opening Size [z]	Opening Size [z]	Opening Size [x]	Opening Size [x]	Height [z]	Height [z]	Panel Hole Size	Panel Hole Size	Material	Type	Type Attributes	Color	Panel Thickness [custom]	Panel Thickness [custom]	Features	Height
Essentra Components MWSELF-1-7.7-01	1.6 mm	0.063 in	UL94 V-2	Push In	0.03 ft	9.14 mm	4.06 mm	0.16 in	3.05 mm	0.12 in	6.6 mm	0.26 in	0.59 in	14.99 mm	0.15 in	3.81 mm	Polyamide (PA66) Nylon 6/6	Clip Wire Saddle	Micro Standoff	Natural
Essentra Components MWSELF-2-4.1-19			UL94 V-0	Push In	0.03 ft	9.14 mm	4.06 mm	0.16 in	3.05 mm	0.12 in	6.6 mm	0.26 in	0.45 in		0.15 in	3.81 mm	Polyamide (PA66) Nylon 6/6	Clip Wire Saddle	Micro Standoff	Natural	2.01 mm	0.079 in	Flame Retardant	11.43 mm
Essentra Components MWSELF-1-4.1-01	1.6 mm	0.063 in	UL94 V-2	Push In	0.03 ft	9.14 mm	4.06 mm	0.16 in	3.05 mm	0.12 in	6.6 mm	0.26 in	0.45 in		0.15 in	3.81 mm	Polyamide (PA66) Nylon 6/6	Clip Wire Saddle	Micro Standoff	Natural				11.43 mm
Essentra Components MWSELF-1-7.7-19	1.6 mm	0.063 in	UL94 V-0	Push In	0.03 ft	9.14 mm	4.06 mm	0.16 in	3.05 mm	0.12 in	6.6 mm	0.26 in	0.59 in	14.99 mm	0.15 in	3.81 mm	Polyamide (PA66) Nylon 6/6	Clip Wire Saddle	Micro Standoff	Natural			Flame Retardant
