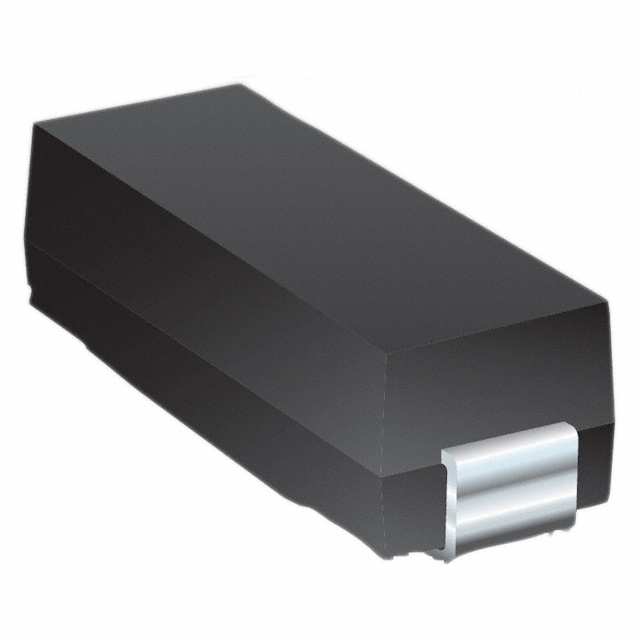

PWR1913 Series

Catalog

RES 0.2 OHM 5% 1/2W 1913

Part	Composition	Power (Watts)	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Resistance	Temperature Coefficient	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Terminations [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features
Bourns Inc. PWR1913WR200JE	Wirewound	0.5 W	0.5 W	-55 C	275 °C	5 %	200 mOhms	150 ppm/°C	1913 J-Lead	4.8 mm	0.13 in	0.189 in	3.3 mm	2	0.126 in	3.2 mm	Current Sense Moisture Resistant Pulse Withstanding
Bourns Inc. PWR1913WR100FE	Wirewound	0.5 W	0.5 W	-55 C	275 °C	1 %	0.1 Ohms	150 ppm/°C	1913 J-Lead	4.8 mm	0.13 in	0.189 in	3.3 mm	2	0.126 in	3.2 mm	Current Sense Moisture Resistant Pulse Withstanding
Bourns Inc. PWR1913WR010J	Wirewound	0.5 W	0.5 W	-55 C	275 °C	5 %	10 mOhms	150 ppm/°C	1913 J-Lead	4.8 mm	0.13 in	0.189 in	3.3 mm	2	0.126 in	3.2 mm	Current Sense Moisture Resistant Pulse Withstanding
Bourns Inc. PWR1913WR027JE	Wirewound	0.5 W	0.5 W	-55 C	275 °C	5 %	27 mOhms	150 ppm/°C	1913 J-Lead	4.8 mm	0.13 in	0.189 in	3.3 mm	2	0.126 in	3.2 mm	Current Sense Moisture Resistant Pulse Withstanding
Bourns Inc. PWR1913WR050J	Wirewound	0.5 W	0.5 W	-55 C	275 °C	5 %	0.05 Ohms	150 ppm/°C	1913 J-Lead	4.8 mm	0.13 in	0.189 in	3.3 mm	2	0.126 in	3.2 mm	Current Sense Moisture Resistant Pulse Withstanding
Bourns Inc. PWR1913WR750J	Wirewound	0.5 W	0.5 W	-55 C	275 °C	5 %	0.75 Ohms	150 ppm/°C	1913 J-Lead	4.8 mm	0.13 in	0.189 in	3.3 mm	2	0.126 in	3.2 mm	Current Sense Moisture Resistant Pulse Withstanding
Bourns Inc. PWR1913WR015JE	Wirewound	0.5 W	0.5 W	-55 C	275 °C	5 %	15 mOhms	150 ppm/°C	1913 J-Lead	4.8 mm	0.13 in	0.189 in	3.3 mm	2	0.126 in	3.2 mm	Current Sense Moisture Resistant Pulse Withstanding
Bourns Inc. PWR1913WR024JE	Wirewound	0.5 W	0.5 W	-55 C	275 °C	5 %	24 mOhms	150 ppm/°C	1913 J-Lead	4.8 mm	0.13 in	0.189 in	3.3 mm	2	0.126 in	3.2 mm	Current Sense Moisture Resistant Pulse Withstanding
Bourns Inc. PWR1913WR100J	Wirewound	0.5 W	0.5 W	-55 C	275 °C	5 %	0.1 Ohms	150 ppm/°C	1913 J-Lead	4.8 mm	0.13 in	0.189 in	3.3 mm	2	0.126 in	3.2 mm	Current Sense Moisture Resistant Pulse Withstanding
Bourns Inc. PWR1913WR036JE	Wirewound	0.5 W	0.5 W	-55 C	275 °C	5 %	36 mOhms	150 ppm/°C	1913 J-Lead	4.8 mm	0.13 in	0.189 in	3.3 mm	2	0.126 in	3.2 mm	Current Sense Moisture Resistant Pulse Withstanding
