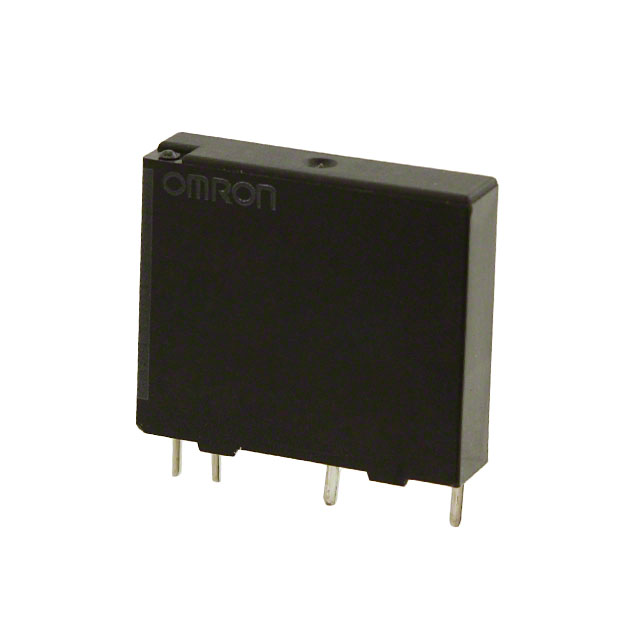

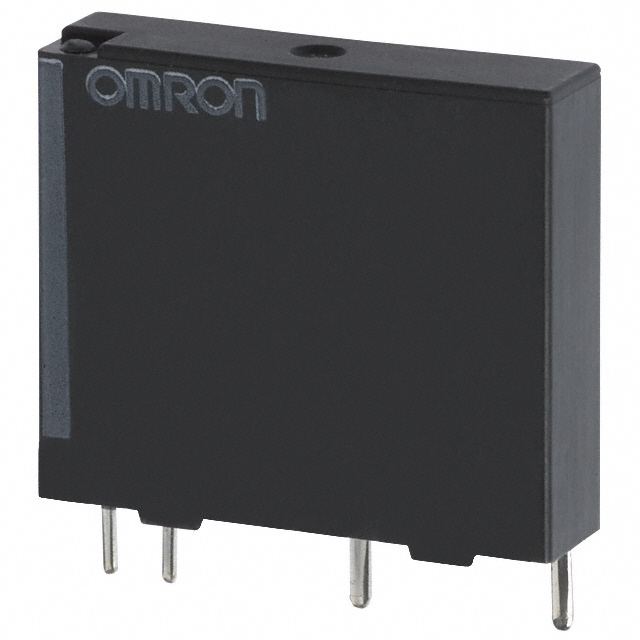

G6M-1A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 3A 12V
| Part | Seal Rating | Release Time | Contact Rating (Current) | Coil Current | Termination Style | Approval Agency | Must Release Voltage | Coil Type | Switching Voltage | Relay Type | Operate Time | Coil Voltage | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Coil Resistance | Must Operate Voltage | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | 3 A | 10 mA | PC Pin | CSA UR VDE | 1.2 VDC | Non Latching | 125 VDC 270 VAC | General Purpose | 10 ms | 12 VDC | Through Hole | 85 °C | -40 °C | SPST-NO (1 Form A) | 1.2 kOhms | 8.4 VDC | 375 W 810 VA |
Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | 3 A | 26.7 mA | PC Pin | CSA UR VDE | 0.225 VDC | Non Latching | 125 VDC 270 VAC | General Purpose | 10 ms | 4.5 VDC | Through Hole | 85 °C | -40 °C | SPST-NO (1 Form A) | 169 Ohms | 3.38 VDC | 375 W 810 VA |
 Omron Electronics Inc-EMC Div | Sealed - Fully | 5 ms | 3 A | 5 mA | PC Pin | CSA UR VDE | 2.4 VDC | Non Latching | 125 VDC 270 VAC | General Purpose | 10 ms | 24 VDC | Through Hole | 85 °C | -40 °C | SPST-NO (1 Form A) | 4.8 kOhms | 16.8 VDC | 375 W 810 VA |
