CFS-0501 Series

Catalog

SWITCH SLIDE DIP SPST 0.1A 6V

Part	Body Material	Length	Length	Electrical Life	Actuator Level	Contact Finish	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Number of Positions	Actuator Type	Height Above Board [z]	Height Above Board [z]	Contact Material	Pitch	Pitch	Circuit	Voltage Rating
Nidec Components Corporation CFS-0501TA	Polyphenylene Sulfide (PPS)	14.15 mm	0.557 in	1000 Cycles	Flush Recessed	Gold	Surface Mount	100 mA	85 °C	-40 C	J Lead	5	Slide (Standard)	0.154 in	3.9 mm	Copper Alloy	2.54 mm	0.1 "	SPST	6 V
Nidec Components Corporation CFS-0501TB	Polyphenylene Sulfide (PPS)	14.15 mm	0.557 in	1000 Cycles	Flush Recessed	Gold	Surface Mount	100 mA	85 °C	-40 C	Gull Wing	5	Slide (Standard)	0.146 in	3.7 mm	Copper Alloy	2.54 mm	0.1 "	SPST	6 V

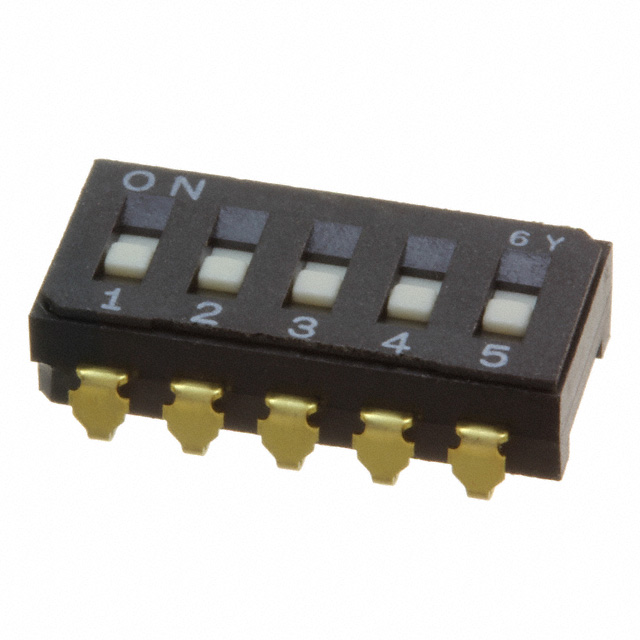

Nidec Components Corporation CFS-0501MA	Polyphenylene Sulfide (PPS)	14.15 mm	0.557 in	1000 Cycles	Flush Recessed	Gold	Surface Mount	100 mA	85 °C	-40 C	J Lead	5	Slide (Standard)	0.154 in	3.9 mm	Copper Alloy	2.54 mm	0.1 "	SPST	6 V

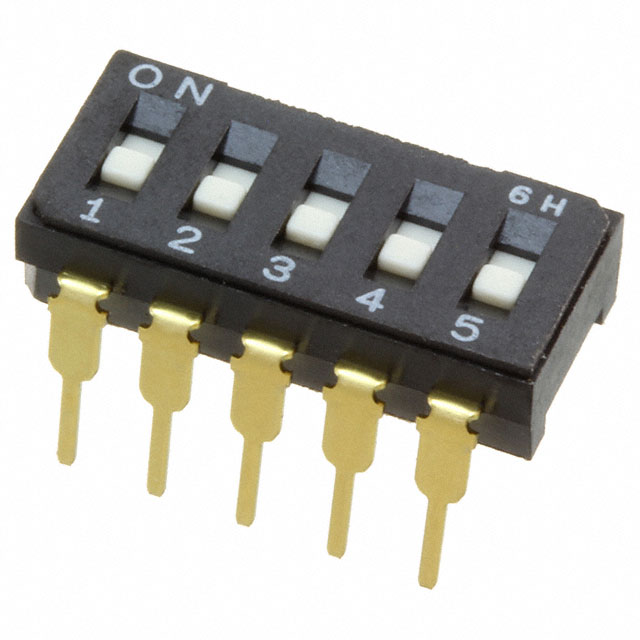

Nidec Components Corporation CFS-0501MC	Polyphenylene Sulfide (PPS)	14.15 mm	0.557 in	1000 Cycles	Flush Recessed	Gold	Through Hole	100 mA	85 °C	-40 C	PC Pin	5	Slide (Standard)	0.177 in	4.5 mm	Copper Alloy	2.54 mm	0.1 "	SPST	6 V

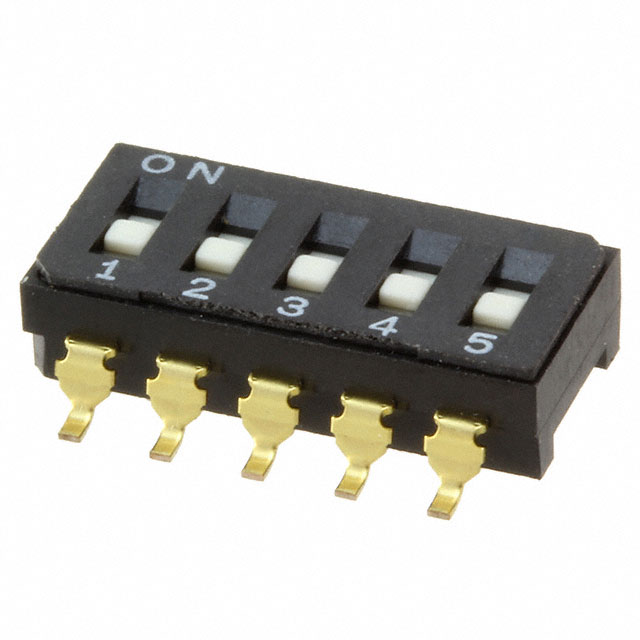

Nidec Components Corporation CFS-0501MB	Polyphenylene Sulfide (PPS)	14.15 mm	0.557 in	1000 Cycles	Flush Recessed	Gold	Surface Mount	100 mA	85 °C	-40 C	Gull Wing	5	Slide (Standard)	0.146 in	3.7 mm	Copper Alloy	2.54 mm	0.1 "	SPST	6 V
