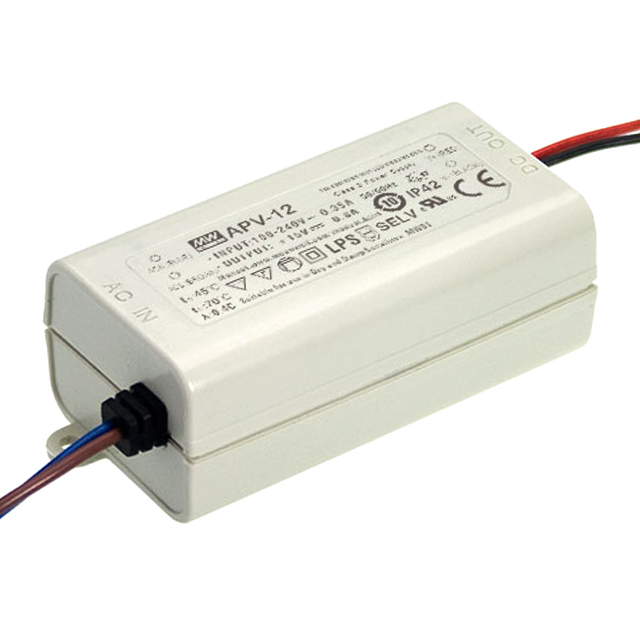

APV-12 Series

Catalog

LED DRIVER CV AC/DC 12V 1A

Part	Mounting Type	Voltage - Input (Max) [Max]	Topology	Type	Current - Output (Max) [Max]	Voltage - Output	Voltage - Isolation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Termination Style	Approval Agency	Ratings	Number of Outputs	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Power (Watts)	Efficiency
MEAN WELL USA Inc. APV-12-12	Chassis Mount	264 VAC	AC DC Converter	Constant Voltage	1 A	12 V	3750 VDC	OCP OVP SCP	-30 ░C	70 °C	90 VAC	Wire Leads	CB CCC CE cURus ENEC	IP42	1	77 mm	3.03 in	1.14 in	29 mm	40 mm	1.57 "	12 W

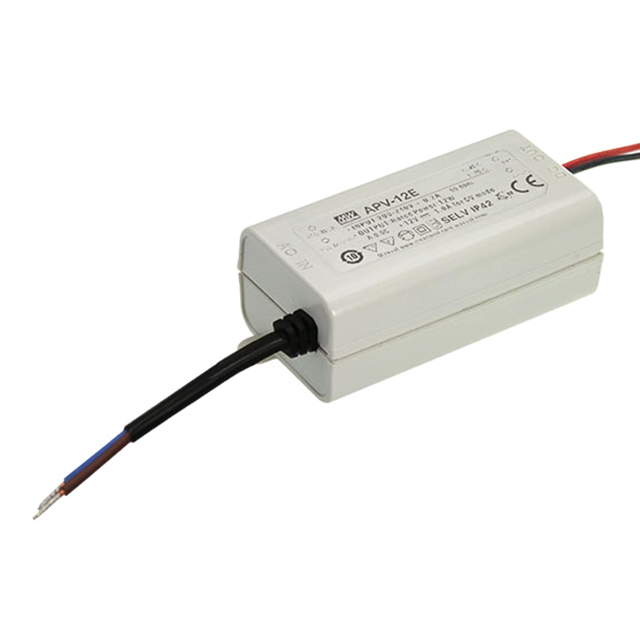

MEAN WELL USA Inc. APV-12E-12	Chassis Mount	264 VAC	AC DC Converter	Constant Voltage	1 A	12 V	3750 VDC	OCP OVP SCP	-30 ░C	70 °C	180 VAC	Wire Leads	CE ENEC	IP42	1	77 mm	3.03 in	1.14 in	29 mm	40 mm	1.57 "	12 W	81 %
MEAN WELL USA Inc. APV-12E-24	Chassis Mount	264 VAC	AC DC Converter	Constant Voltage	500 mA	24 V	3750 VDC	OCP OVP SCP	-30 ░C	70 °C	180 VAC	Wire Leads	CE ENEC	IP42	1	77 mm	3.03 in	1.14 in	29 mm	40 mm	1.57 "	12 W	83 %
MEAN WELL USA Inc. APV-12-15	Chassis Mount	264 VAC	AC DC Converter	Constant Voltage	0.8 A	15 V	3750 VDC	OCP OVP SCP	-30 ░C	70 °C	90 VAC	Wire Leads	CB CCC CE cURus ENEC	IP42	1	77 mm	3.03 in	1.14 in	29 mm	40 mm	1.57 "	12 W
MEAN WELL USA Inc. APV-12-24	Chassis Mount	264 VAC	AC DC Converter	Constant Voltage	500 mA	24 V	3750 VDC	OCP OVP SCP	-30 ░C	70 °C	90 VAC	Wire Leads	CB CCC CE cURus ENEC	IP42	1	77 mm	3.03 in	1.14 in	29 mm	40 mm	1.57 "	12 W	84 %
MEAN WELL USA Inc. APV-12-5	Chassis Mount	264 VAC	AC DC Converter	Constant Voltage	2 A	5 V	3750 VDC	OCP OVP SCP	-30 ░C	70 °C	90 VAC	Wire Leads	CB CCC CE cURus ENEC	IP42	1	77 mm	3.03 in	1.14 in	29 mm	40 mm	1.57 "	10 W	76 %
