325-030 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 30POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Card Thickness	Card Thickness	Number of Positions	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Card Type	Number of Positions/Bay/Row	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Gender	Mounting Type	Pitch	Pitch	Number of Rows [custom]	Color	Contact Type	Termination	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]

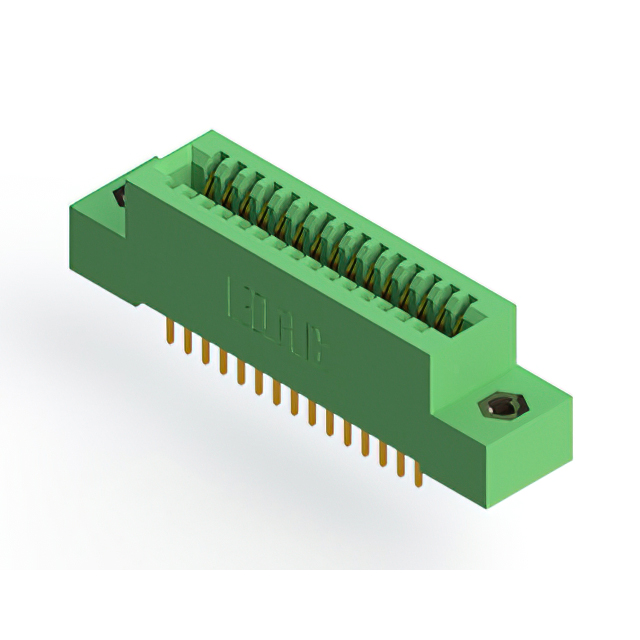

EDAC Inc. 325-030-520-208	2	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	30	Dual	-65 ░C	125 °C	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	15	Gold	0.25 Ám	10 Áin	Copper Alloy	Female	Through Hole	0.1 "	2.54 mm	2	Green	Cantilever	Solder

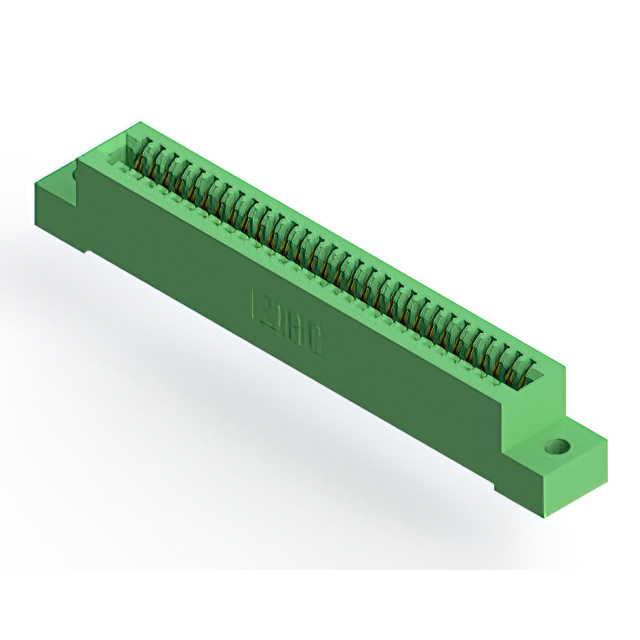

EDAC Inc. 325-030-520-109		Diallyl Phthalate (DAP)	3.18 mm	0.125 in	30	Single	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	30	Gold	0.25 Ám	10 Áin	Copper Alloy	Female	Through Hole	0.1 "	2.54 mm		Green	Cantilever	Solder	1	1	0.16 "	4.06 mm

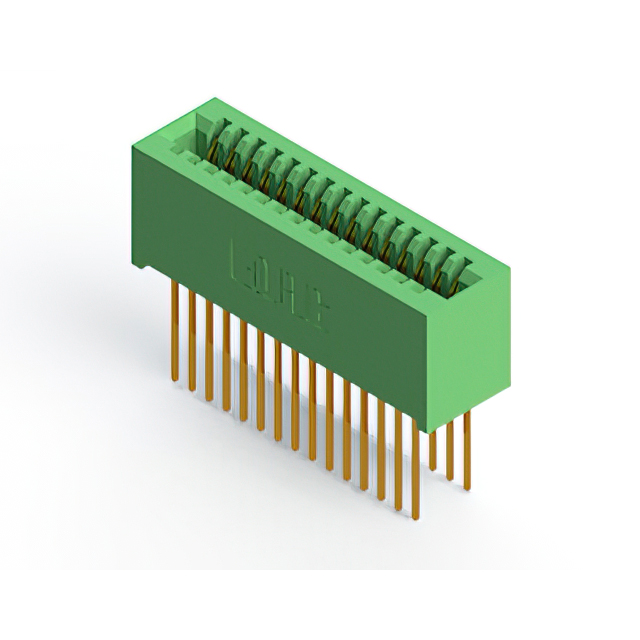

EDAC Inc. 325-030-540-201	2	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	30	Dual	-65 ░C	125 °C		Non Specified - Dual Edge	15	Gold	0.25 Ám	10 Áin	Copper Alloy	Female	Through Hole	0.1 "	2.54 mm	2	Green	Cantilever	Wire Wrap
EDAC Inc. 325-030-500-208	2	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	30	Dual	-65 ░C	125 °C	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	15	Gold	0.25 Ám	10 Áin	Copper Alloy	Female	Through Hole	0.1 "	2.54 mm	2	Green	Cantilever	Solder Eyelet(s)
EDAC Inc. 325-030-540-208	2	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	30	Dual	-65 ░C	125 °C	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	15	Gold	0.25 Ám	10 Áin	Copper Alloy	Female	Through Hole	0.1 "	2.54 mm	2	Green	Cantilever	Wire Wrap

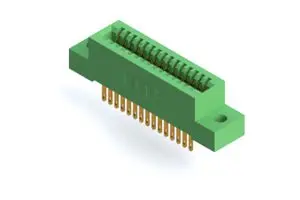

EDAC Inc. 325-030-500-209	2	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	30	Dual	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	15	Gold	0.25 Ám	10 Áin	Copper Alloy	Female	Through Hole	0.1 "	2.54 mm	2	Green	Cantilever	Solder Eyelet(s)			0.16 "	4.06 mm

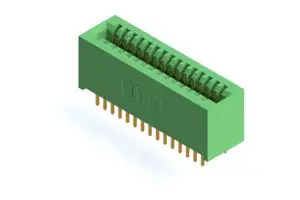

EDAC Inc. 325-030-520-201	2	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	30	Dual	-65 ░C	125 °C		Non Specified - Dual Edge	15	Gold	0.25 Ám	10 Áin	Copper Alloy	Female	Through Hole	0.1 "	2.54 mm	2	Green	Cantilever	Solder
EDAC Inc. 325-030-540-109		Diallyl Phthalate (DAP)	3.18 mm	0.125 in	30	Single	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	15	Gold	0.25 Ám	10 Áin	Copper Alloy	Female	Through Hole	0.1 "	2.54 mm		Green	Cantilever	Wire Wrap	1	1	0.16 "	4.06 mm
EDAC Inc. 325-030-520-101		Diallyl Phthalate (DAP)	3.18 mm	0.125 in	30	Single	-65 ░C	125 °C		Non Specified - Single Edge	30	Gold	0.25 Ám	10 Áin	Copper Alloy	Female	Through Hole	0.1 "	2.54 mm		Green	Cantilever	Solder	1	1

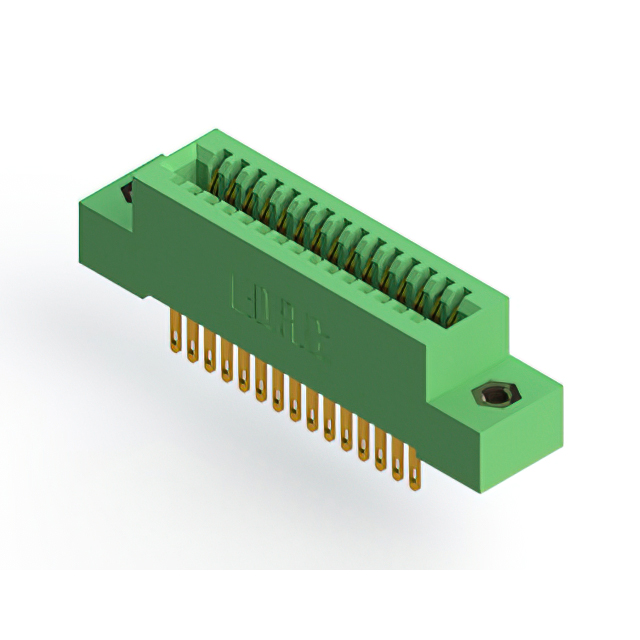

EDAC Inc. 325-030-500-207	2	Diallyl Phthalate (DAP)	3.18 mm	0.125 in	30	Dual	-65 ░C	125 °C	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	15	Gold	0.25 Ám	10 Áin	Copper Alloy	Female	Through Hole	0.1 "	2.54 mm	2	Green	Cantilever	Solder Eyelet(s)
