FFC0612 Series
Manufacturer: Delta Electronics
Beta
⌘K

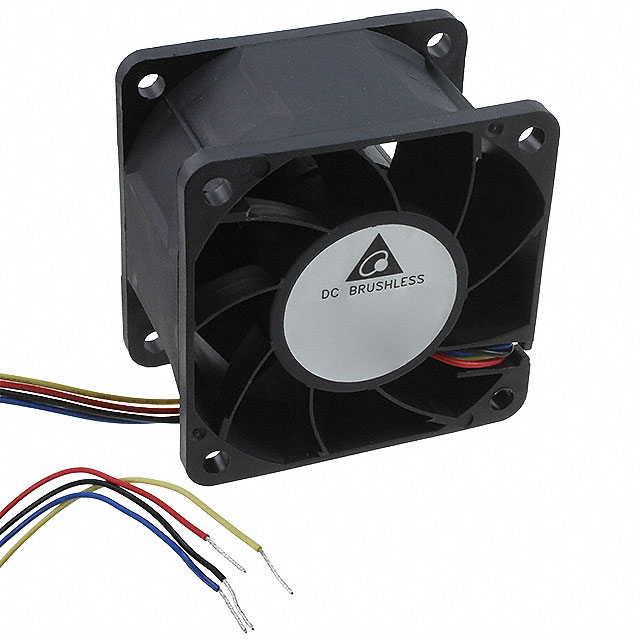

FAN AXIAL 60X38MM 12VDC WIRE
| Part | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Current Rating (Amps) | Lifetime @ Temp. | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Max] | Bearing Type | Weight | Weight | Power (Watts) | Termination | Width [y] | Fan Type | Size / Dimension [z] | Size / Dimension [x] | Voltage - Rated | Approval Agency | RPM | Noise | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | 7 V | 13.2 VDC | Plastic | 900 mA | 70000 Hrs | 54.8 CFM | 1.53 mł/min | -10 °C | 60 °C | Ball | 0.234 lb | 106.14 g | 10.8 W | 4 Wire Leads | 38 mm | Tubeaxial | 60 mm | 60 mm | 12 VDC | CE CSA UL VDE | 9000 RPM | 60 dB(A) | Locked Rotor Protection PWM Control Speed Sensor (Tach) |
