TS3A24159 Series

0.3-Ω on-state resistance, 3.3-V, 2:1 (SPDT), 2-channel analog switch with 1.8-V input logic

Catalog

0.3-Ω on-state resistance, 3.3-V, 2:1 (SPDT), 2-channel analog switch with 1.8-V input logic

Part	Package / Case	Package / Case [x]	Package / Case [x]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Charge Injection	Switch Circuit	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Current - Leakage (IS(off)) (Max)	Mounting Type	Channel-to-Channel Matching (ΔRon)	Number of Circuits	Supplier Device Package	Crosstalk	On-State Resistance (Max) [Max]	-3db Bandwidth	Multiplexer/Demultiplexer Circuit
Texas Instruments TS3A24159DGSR	10-MSOP 10-TFSOP	3 mm	0.118 in	90 pF	90 pF	35 ns	25 ns	85 °C	-40 °C	9 pC	SPDT	1.65 V	3.6 V	10 nA	Surface Mount	10 mOhm	2	10-VSSOP	-96 dB	300 mOhm	23 MHz	2:1
Texas Instruments TS3A24159DRCR	10-VFDFN Exposed Pad			90 pF	90 pF	35 ns	25 ns	85 °C	-40 °C	9 pC	SPDT	1.65 V	3.6 V	10 nA	Surface Mount	10 mOhm	2	10-VSON (3x3)	-96 dB	300 mOhm	23 MHz	2:1

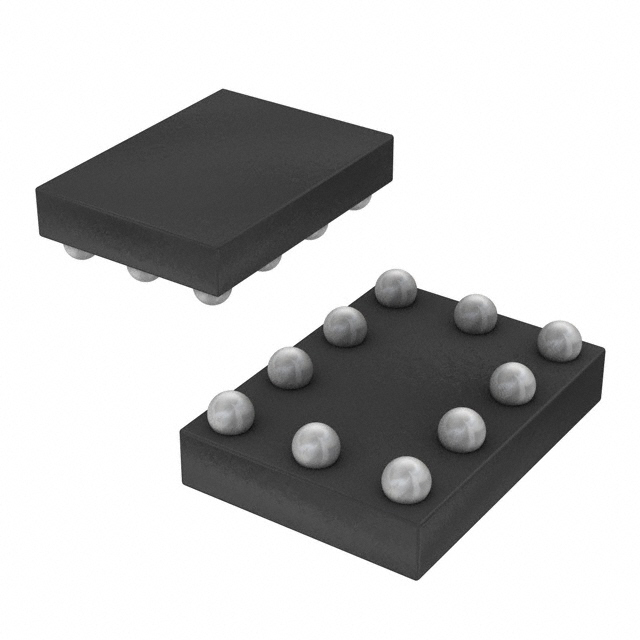

Texas Instruments TS3A24159YZPR	10-XFBGA DSBGA			90 pF	90 pF	35 ns	25 ns	85 °C	-40 °C	9 pC	SPDT	1.65 V	3.6 V	10 nA	Surface Mount	10 mOhm	2	10-DSBGA	-96 dB	300 mOhm	23 MHz	2:1
Texas Instruments TS3A24159DRCRG4	10-VFDFN Exposed Pad			90 pF	90 pF	35 ns	25 ns	85 °C	-40 °C	9 pC	SPDT	1.65 V	3.6 V	10 nA	Surface Mount	10 mOhm	2	10-VSON (3x3)	-96 dB	300 mOhm	23 MHz	2:1
Texas Instruments TS3A24159DGSRG4	10-MSOP 10-TFSOP	3 mm	0.118 in	90 pF	90 pF	35 ns	25 ns	85 °C	-40 °C	9 pC	SPDT	1.65 V	3.6 V	10 nA	Surface Mount	10 mOhm	2	10-VSSOP	-96 dB	300 mOhm	23 MHz	2:1

Catalog

0.3-Ω on-state resistance, 3.3-V, 2:1 (SPDT), 2-channel analog switch with 1.8-V input logic

Key Features

• Specified break-before-make switchingLow ON-state resistance (0.3 Ω maximum)Low charge injectionExcellent ON-state resistance matchingLow total harmonic distortion (THD)1.65-V to 3.6-V single-supply operationControl inputs are 1.8-V logic compatibleLatch-up performance exceeds 100 mA per JESD 78, Class IIESD performance tested per JESD 222000-V Human-Body Model (A114-B, Class II)1000-V Charged-Device Model (C101)Specified break-before-make switchingLow ON-state resistance (0.3 Ω maximum)Low charge injectionExcellent ON-state resistance matchingLow total harmonic distortion (THD)1.65-V to 3.6-V single-supply operationControl inputs are 1.8-V logic compatibleLatch-up performance exceeds 100 mA per JESD 78, Class IIESD performance tested per JESD 222000-V Human-Body Model (A114-B, Class II)1000-V Charged-Device Model (C101)

Description

The TS3A24159 is a 2-channel single-pole double-throw (SPDT) bidirectional analog switch that is designed to operate from 1.65 V to 3.6 V. It offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature, to prevent signal distortion during the transferring of a signal from one channel to another. The device has excellent total harmonic distortion (THD) performance, low ON-state resistence, and consumes very low power. These are some of the features that make this device suitable for a variety of markets and many different applications. The TS3A24159 is a 2-channel single-pole double-throw (SPDT) bidirectional analog switch that is designed to operate from 1.65 V to 3.6 V. It offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature, to prevent signal distortion during the transferring of a signal from one channel to another. The device has excellent total harmonic distortion (THD) performance, low ON-state resistence, and consumes very low power. These are some of the features that make this device suitable for a variety of markets and many different applications.
