UMTW-5316 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

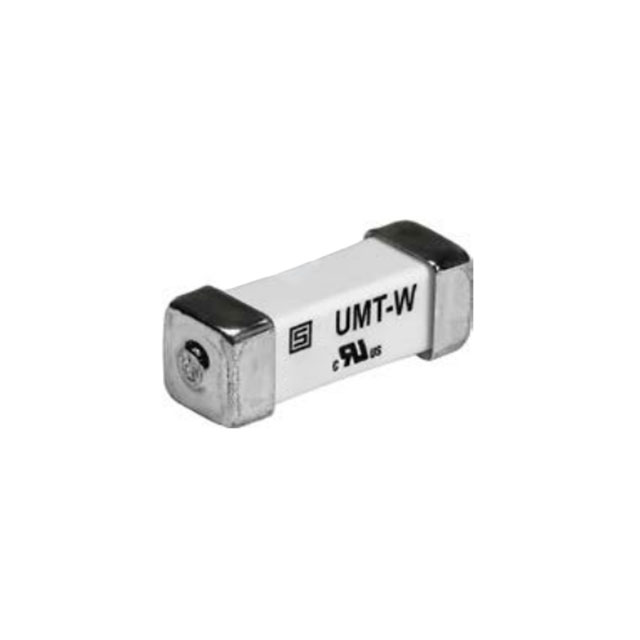

FUSE BRD MNT 10A 125VAC/VDC 2SMD
| Part | Fuse Type | Voltage Rating - AC | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Package / Case | Response Time | Voltage Rating - DC | Breaking Capacity @ Rated Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Melting I²t | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | Board Mount (Cartridge Style Excluded) | 125 V | 0.211 in | 0.606 in | 0.211 " | 15.4 mm | 5.35 mm | 5.35 mm | 2-SMD Square End Block | Slow Blow | 125 VDC | 350 A | -55 C | 125 °C | 10 A | 510 | Surface Mount | CE cURus IEC UL2481-14 |
SCHURTER Inc. | Board Mount (Cartridge Style Excluded) | 125 V | 0.211 in | 0.606 in | 0.211 " | 15.4 mm | 5.35 mm | 5.35 mm | 2-SMD Square End Block | Slow Blow | 125 VDC | 350 A | -55 C | 125 °C | 15 A | 1480 | Surface Mount | CE cURus IEC UL2481-14 |
SCHURTER Inc. | Board Mount (Cartridge Style Excluded) | 125 V | 0.211 in | 0.606 in | 0.211 " | 15.4 mm | 5.35 mm | 5.35 mm | 2-SMD Square End Block | Slow Blow | 125 VDC | 350 A | -55 C | 125 °C | 7 A | 320 | Surface Mount | CE cURus IEC UL2481-14 |
SCHURTER Inc. | Board Mount (Cartridge Style Excluded) | 125 V | 0.211 in | 0.606 in | 0.211 " | 15.4 mm | 5.35 mm | 5.35 mm | 2-SMD Square End Block | Slow Blow | 125 VDC | 350 A | -55 C | 125 °C | 5 A | 230 | Surface Mount | CE cURus IEC UL2481-14 |
SCHURTER Inc. | Board Mount (Cartridge Style Excluded) | 125 V | 0.211 in | 0.606 in | 0.211 " | 15.4 mm | 5.35 mm | 5.35 mm | 2-SMD Square End Block | Slow Blow | 125 VDC | 350 A | -55 C | 125 °C | 20 A | 2800 I²t | Surface Mount | CE cURus IEC UL2481-14 |
