9WE1724 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

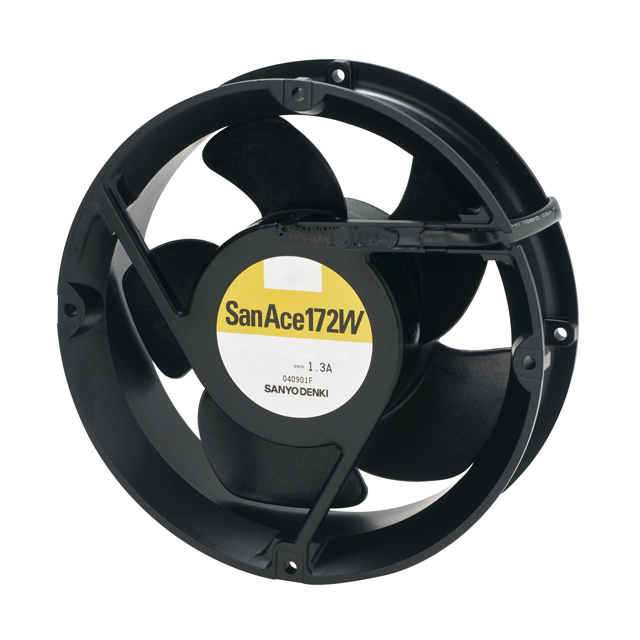

DC FAN AXIAL BALL BEARING 24V 20.4V TO 27.6V 300.1CFM 55DB 172 X 51MM SENSOR
| Part | Material - Blade | Current Rating (Amps) | Lifetime @ Temp. | Air Flow | Air Flow | Material - Frame | Bearing Type | RPM | Width [x] | Approval Agency | Weight | Weight | Voltage - Rated | Size / Dimension [diameter] | Size / Dimension | Features | Static Pressure | Static Pressure | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Fan Type | Power (Watts) | Ingress Protection | Noise | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Plastic | 1.3 A | 40000 Hrs | 300.1 CFM | 8.4 mł/min | Aluminum | Ball | 4100 RPM | 51 mm | CSA TUV UL | 900 g | 1.9 lbs | 24 VDC | 172 mm | Round | Speed Sensor (Tach) | 241.6 Pa | 0.97 in H2O | 60 °C | 60 °C | -4 °F | -20 ░C | Tubeaxial | 31.2 W | IP68 - Dust Tight Waterproof | 55 dB(A) | 3 Wire Leads |
