MAXM15063 Series

Catalog

EVAL MAXM15063

Part	Current - Output	Main Purpose	Utilized IC / Part	Outputs and Type	Outputs and Type	Voltage - Output	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Supplied Contents	Frequency - Switching	Applications	Number of Outputs	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Features	Voltage - Input (Min) [Min]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Current - Output (Max) [Max]	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Voltage - Input (Max) [Max]

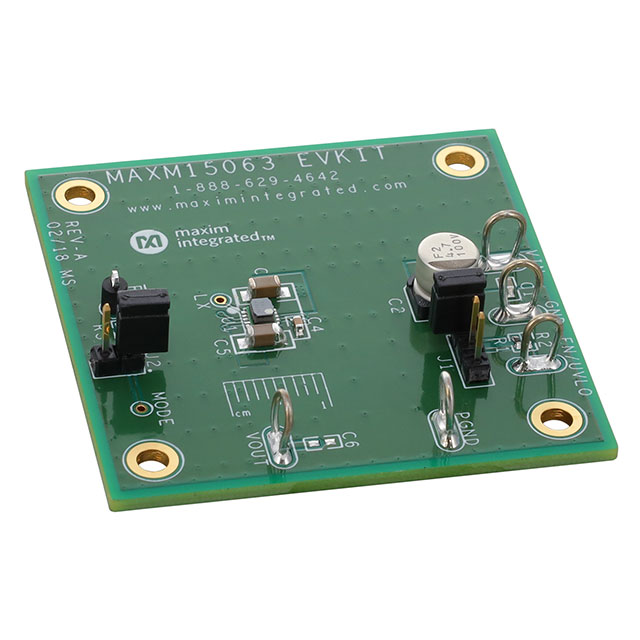

Analog Devices Inc./Maxim Integrated MAXM15063EVKIT#	300 mA	DC/DC Step Down	MAXM15063	Non-Isolated	1	5 V	Fully Populated	12 V	60 V	Buck	Board(s)	500 kHz
Analog Devices Inc./Maxim Integrated MAXM15063AMB+													ITE (Commercial)	1	Non-Isolated PoL Module	0.06 "	1.5 mm	0.1 in	0.12 in	2.6 mm	3 mm	OCP OTP SCP UVLO	4.5 V	5 V	125 °C	-40 °C	Surface Mount	10-SMD Module	300 mA	10-eMGA	2.6	3	60 V
