8413 Series
Manufacturer: Belden Inc.
Beta
⌘K

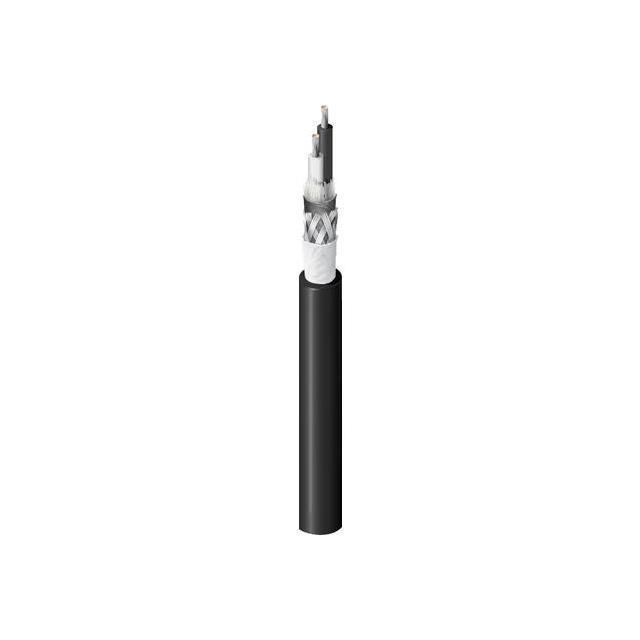

2#24 EPDM SHLD EPDM
| Part | Shield Material | Shield Coverage [custom] | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Conductor Insulation | Conductor Material | Jacket Color | Cable Type | Length [x] | Length [x] | Jacket (Insulation) Material | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned Textile | 60 % 100 % | Braid Foil | 90 °C | -40 C | 5.06 mm | 0.199 in | Audio | 300 VDC | 40 AWG | 45 | 0.017 " | 0.432 mm | 2 | Ethylene Propylene Terpolymer Rubber (EPDM) | Copper Alloy Tinned | Black | Microphone | 100 ft | 30.5 m | Ethylene Propylene Terpolymer Rubber (EPDM) | 24 AWG | ||
Belden Inc. | Copper Tinned Textile | 60 % 100 % | Braid Foil | 90 °C | -40 C | 5.06 mm | 0.199 in | Audio | 300 VDC | 40 AWG | 45 | 0.017 " | 0.432 mm | 2 | Ethylene Propylene Terpolymer Rubber (EPDM) | Copper Alloy Tinned | Black | Microphone | Ethylene Propylene Terpolymer Rubber (EPDM) | 24 AWG | 152.4 m | 500 ft | ||
Belden Inc. | Copper Tinned Textile | 60 % 100 % | Braid Foil | 90 °C | -40 C | 5.06 mm | 0.199 in | Audio | 300 VDC | 40 AWG | 45 | 0.017 " | 0.432 mm | 2 | Ethylene Propylene Terpolymer Rubber (EPDM) | Copper Alloy Tinned | Black | Microphone | Ethylene Propylene Terpolymer Rubber (EPDM) | 24 AWG | 152.4 m | 500 ft |
