AST045 Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
SPRING CLAMP TERMINAL BLOCK, 45
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating | Contact Material - Plating | Housing Material | Current | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Mating Orientation | Wire Termination | Pitch | Pitch | Voltage | Mounting Type | Features | Color | Positions Per Level | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

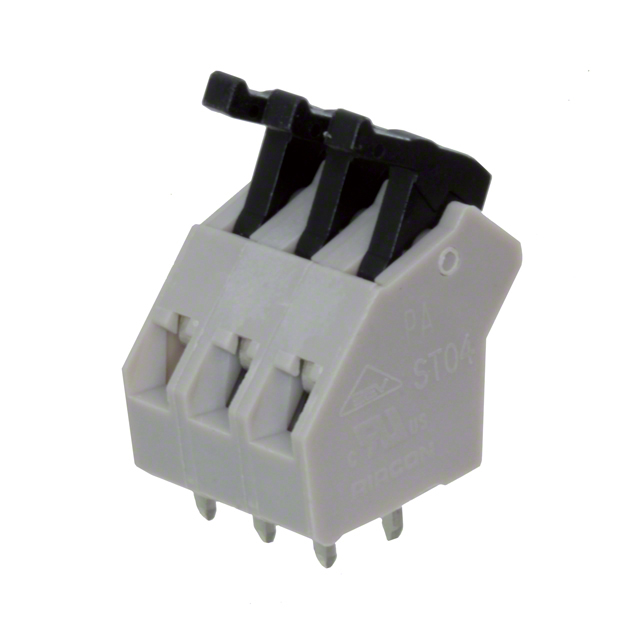

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Steel | Copper Alloy - Tin Plated | Polyamide (PA46) Nylon 4/6 | 13 A | 28 AWG | 14 AWG | 135 ° | 45 ° | Screwless - Spring Cage Tension Clamp | 0.197 in | 5 mm | 300 VDC | Through Hole | Lever Actuated | Gray | 3 | 1 |

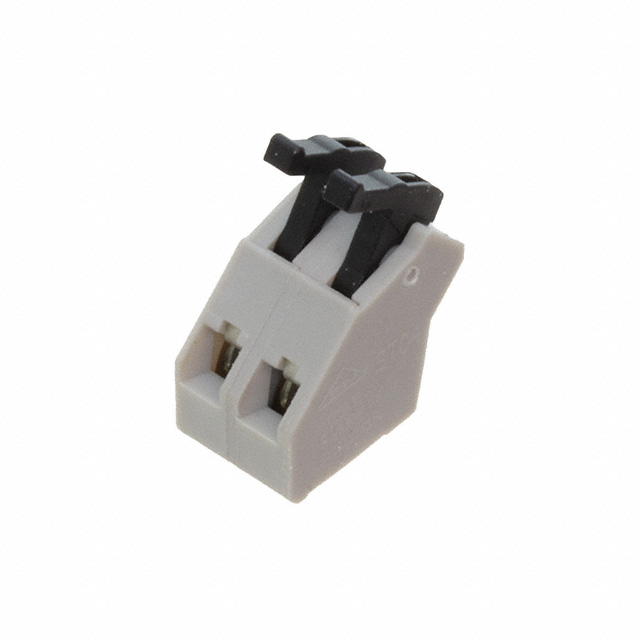

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Steel | Copper Alloy - Tin Plated | Polyamide (PA46) Nylon 4/6 | 13 A | 28 AWG | 14 AWG | 135 ° | 45 ° | Screwless - Spring Cage Tension Clamp | 0.197 in | 5 mm | 300 VDC | Through Hole | Lever Actuated | Gray | 2 | 1 |

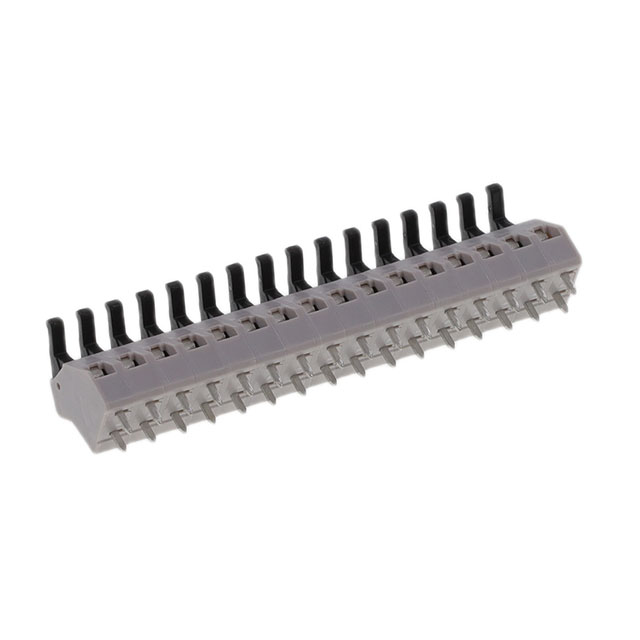

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Steel | Copper Alloy - Tin Plated | Polyamide (PA46) Nylon 4/6 | 13 A | 28 AWG | 14 AWG | 135 ° | 45 ° | Screwless - Spring Cage Tension Clamp | 0.197 in | 5 mm | 300 VDC | Through Hole | Lever Actuated | Gray | 16 | 1 |

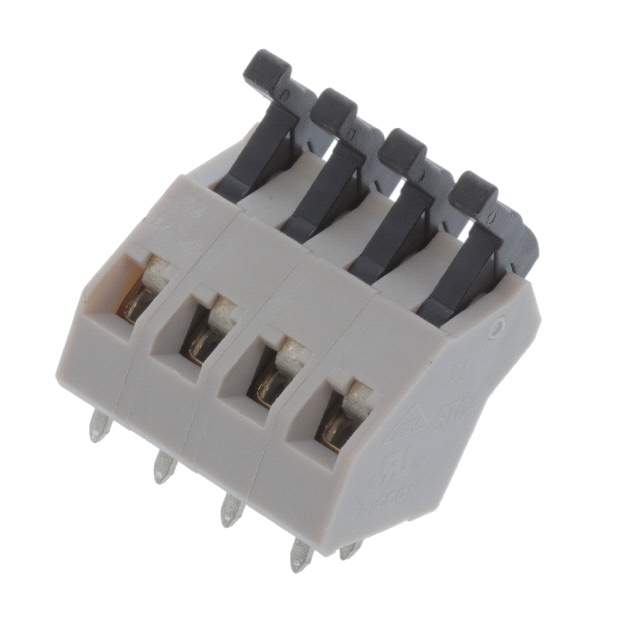

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Steel | Copper Alloy - Tin Plated | Polyamide (PA46) Nylon 4/6 | 13 A | 28 AWG | 14 AWG | 135 ° | 45 ° | Screwless - Spring Cage Tension Clamp | 0.197 in | 5 mm | 300 VDC | Through Hole | Lever Actuated | Gray | 4 | 1 |
